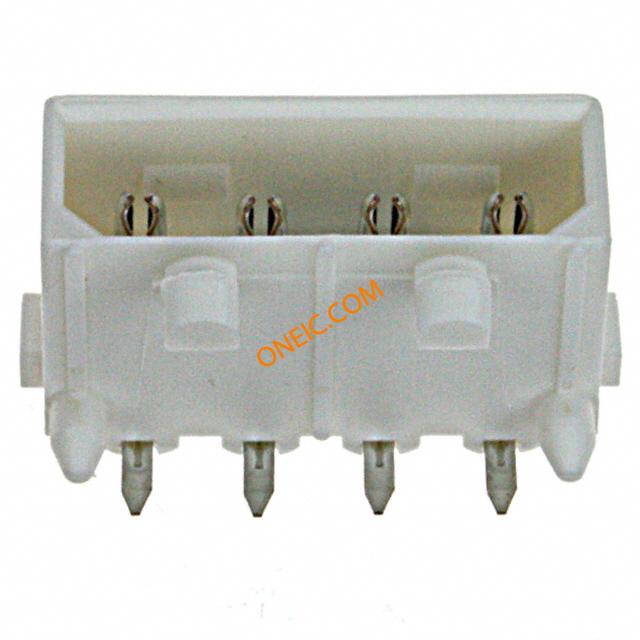

1-641737-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN TE Connectivity MATE-N-LOK Series 5.08mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 13A Power to the Board 4 CKT R/A HEADER Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYR/AV0 TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY R/A V0 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V ac | 供电电压 | 250 |
| 最大额定电流 | 13A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | White | 间距 | 5.08 mm |
| 高度 | 8.76 mm | 密封型 | Not Sealed |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 引脚数 | 4 | 排数 | 1 |
| 封装形式 | Plug | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 25.4 mm |
| 安装特性 | 板锁 | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | InterconnectSystem |
| 端接排数 | 焊接 | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.56 mm [ .14 in ] |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 覆盖范围 | 覆盖 |
| 产品特性 | Board Guide, Board Lock | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Headers | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
