点击放大查看

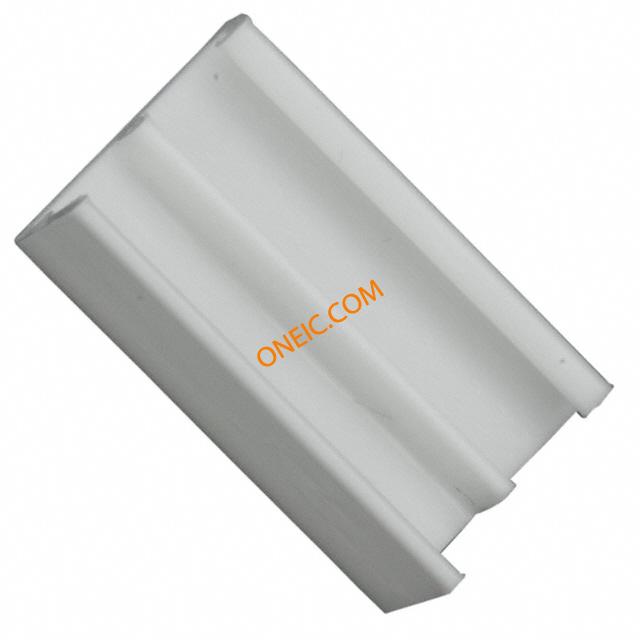

770232-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 POS Dust Cover Polyester White Soft Shell - Accessories CONN DUST COVER 4POS WHITE Dust Cover IDC 4 way CMNL feed to wiring Pin & Socket Connectors DUST COVER Connector Accessories 4 POS Dust Cover Polyester White Product Highlights:Dust CoverCommercial MATE-N-LOKPolyester Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP DUSTCOVER,MATE-N-LOK,4POSITION,WHITE,FORFEEDTOWIRING TE Connectivity MATE-N-LOK 白色 灰尘 外罩 770232 CMNL IDC COVER |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | White | 深度 | 12.82 mm |
| 高度 | 8.25 mm | 材料（通用） | 聚酯 |
| 包装方式 | 盒 | 壳体材料 | Polyester |
| 总长度 | 19.3 mm | 包装数量 | 5 |
| 主要材料 | Interconnect | 触点数 | 4 |
| 位数 | 4 | 典型触点布局 | In-Line |
产品信息
| 备注 | For standard wiring. For use with Insulation Displacement Connectors only. | 类型 | Dust Cover |
| 系列 | MATE-N-LOK | 产品特性 | Closed End |
| 盖类型 | 灰尘 | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Dust Cover |
| 附件类型 | Cap (Cover), Dust | 电路数 | 4 |
| 射频系列/标准 | 770232 | 基础产品编号 | 770232 |
| 适用产品/相关产品 | Commercial MATE-N-LOK Series | ||
