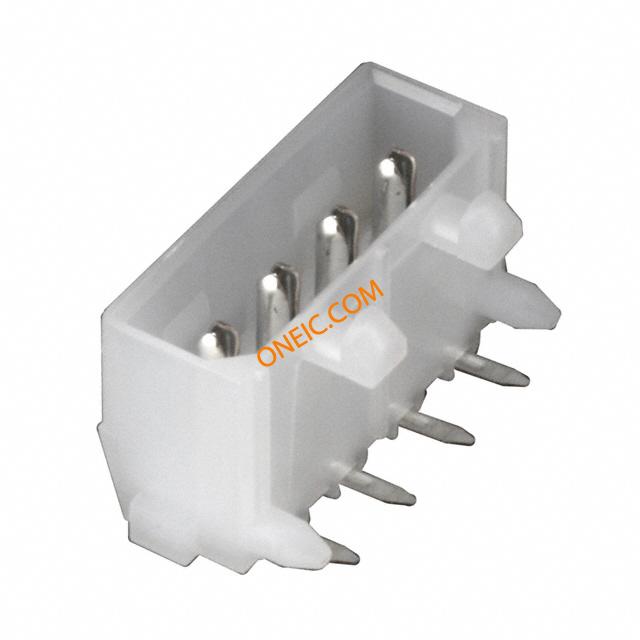

641737-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN TE Connectivity MATE-N-LOK Series 5.08mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 13A Power to the Board 4 PIN HDR R/A Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, 90DEG, PIN, 4P HEADERASSEMBLY,SOFTSHELL,MATE-N-LOK,4POSITION,PIN,NYLON,NATURAL Socket; wire-board; male; 5.08mm; PIN:4; UL94V-2; Mat: polyamide TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY R/A PC NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 13A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 高度 | 8.76 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 5.08mm |
| 基体材料 | polyamide | 外壳颜色 | Natural |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 25.4 mm |
| 包装数量 | 100 | 连接器 - 电缆 | socket |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Natural | 触点数 | 4 |
| 接触件端接 | :Solder | 位数 | 4 |
| 第一连接器安装类型 | :PCB | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 100 | 类型 | Wire to Board |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| 产品特性 | Board Guide, Board Lock | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 适配器系列 | Commercial MATE-N-LOK |
| 单元数量 | 1 | 加载位置数 | All |
