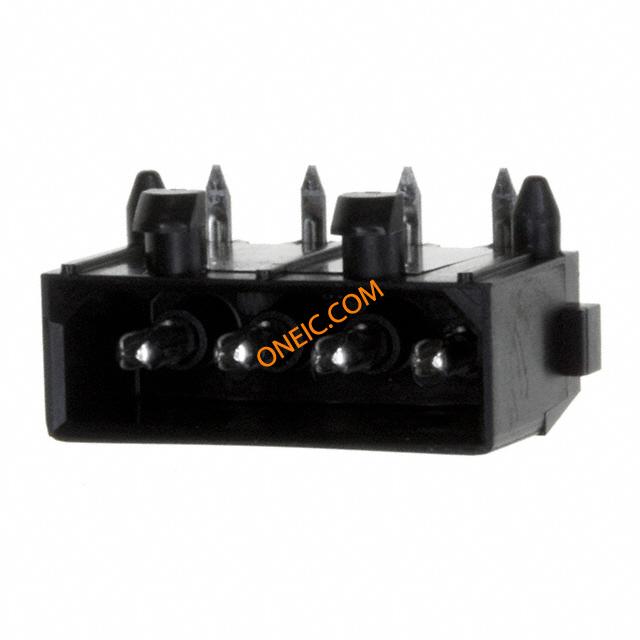

770846-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN Pin & Socket Connectors 04P CMNL HDR ASSY R/ Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL HDR ASSY R/A BLK HT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 宽度 | 8.76 | 高度 | 8.76 mm |
| 长度 | 23.27 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 引脚数 | 4 |
| 排数 | 1 | 封装形式 | Receptacle |
| 高度（英寸） | 12.29 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 25.4 mm |
| 安装特性 | 板锁 | 包装数量 | 200 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 5.47 – 6.22 mm [ .215 – .245 in ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | Commercial Mate N Lok | 产品特性 | Board Guide, Board Lock |
| 产品子类型 | Headers | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
