点击放大查看

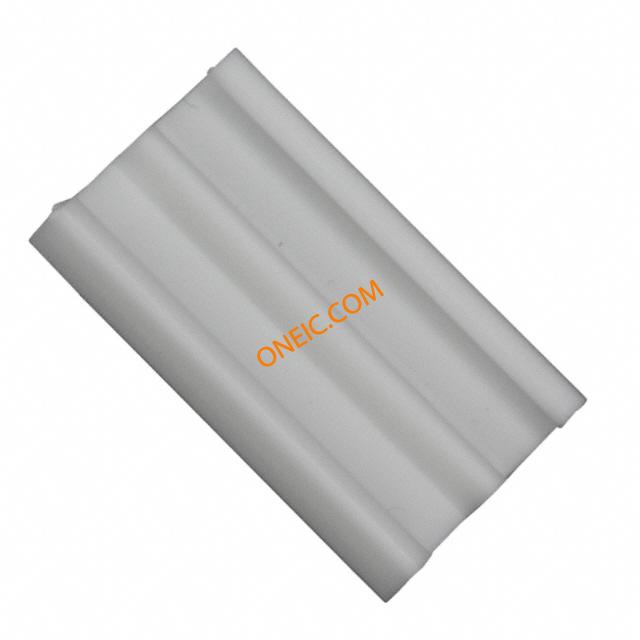

770233-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 POS Dust Cover Polyester White Soft Shell - Accessories CONN DUST COVER 4POS WHITE Dust Cover IDC 4 way CMNL feed through Pin & Socket Connectors DUST COVER Connector Accessories 4 POS Dust Cover Polyester White Product Highlights:Dust CoverCommercial MATE-N-LOKPolyester Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP DUSTCOVER,MATE-N-LOK,4POSITION,WHITE,FORFEEDTHROUGHWIRING TE Connectivity Commercial MATE-N-LOK 系列 4路 IDC 连接器 CMNL IDC COVER |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | White | 深度 | 12.82 mm |
| 高度 | 36.06 mm | 材料（通用） | 聚酯 |
| 包装方式 | 包装 | 连接器类型 | Cap (Cover), Dust |
| 壳体材料 | Polyester | 总长度 | 19.3 mm |
| 包装数量 | 1 | 主要材料 | Interconnect |
| 触点数 | 4 | 位数 | 4 |
| 典型触点布局 | In-Line | ||
产品信息
| 备注 | For feed through wiring. For use with Insulation Displacement Connectors only. | 类型 | Cover |
| 系列 | Mate-N-Lok | 产品特性 | Feed Through |
| 主要用途 | Feed Through | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Dust Cover | 附件类型 | Cap (Cover), Dust |
| 电路数 | 4 | 射频系列/标准 | 770233 |
| 适用产品/相关产品 | Commercial MATE-N-LOK Series | ||
