点击放大查看

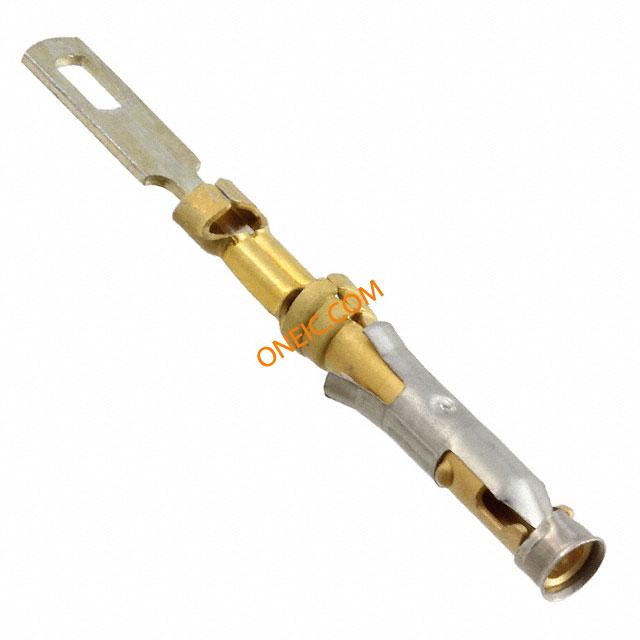

202237-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Solder ST Cable Mount Loose Piece Multimate Contacts CONN SKT .062 SLD POST GOLD Multimate III Socket Contact solder tab Pin & Socket Connectors III+ SKT SOLTAB 30AU 1000 Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:Socket with Solder TabGold (30) over Nickel (30) Contact Mating Area PlatingBrass Contact MaterialGold Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+SKT,SOLTAB,30AU>10 III+ SKT,SOLTAB,30AU>10,SMPACK |
| 分类 |
商业参数
| 商标名 | Multimate | 零件号别名 | 512-6986 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 输出电流 | 13.0 | 输出高/低电流 | No |
机械参数
| 镀层 | Bright Tin-Lead | 材料（通用） | Brass |
| 包装方式 | Bulk | 电缆类型 | Discrete Wire |
| 端接方式 | Solder | 触点形式 | Signal |
| 触点尺寸 | 16 | 触头类型 | Power |
| 插针或插孔 | Socket | 端子尺寸 | 16 |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | PCB | 插入件材料 | 黄铜 |
| 磁芯材质 | Stainless Steel | 触头材料 | Brass |
| 包装数量 | Loose Piece | 主要材料 | Brass |
| 绝缘高度 | No | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 端接表面处理 | Gold | 接触件端接 | Solder Post |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 金 | 接触镀层厚度 | 30 |
| 触点材料 - 配合 | Gold (30) | ||
产品信息
| 备注 | Extraction Tool No. 305183 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | SKT |
| 系列 | Type III+ | 制造商全称 | AMP |
| 产品子类型 | Receptacle Housings | 其他规格 | Wire/Cable |
| 应用细节 | Signal | 适用/相关制造商 | CPC Connectors / M Series Connectors |
