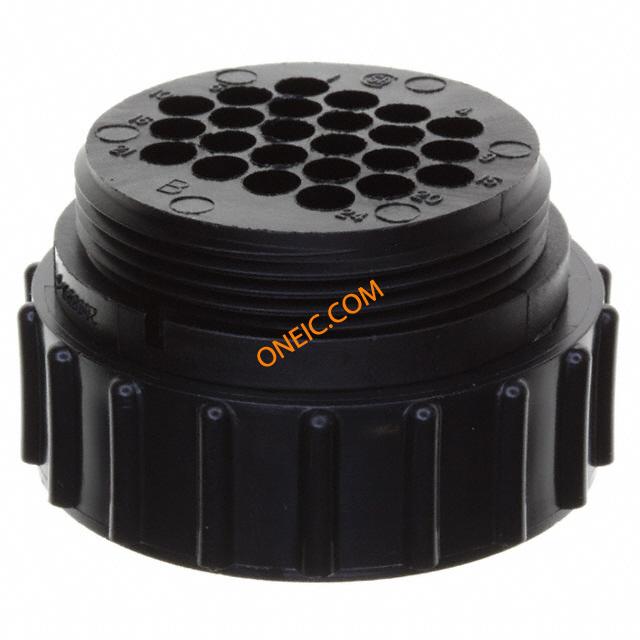

206837-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS SIZE 23 Standard Circular Connector CPC PLUG SZ 23-24 SMALL PACK Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:Not Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = PlugSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG,SZ 23-24,SMALL PACK |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 保护特性 | With | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 24 |
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 23 |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 0 |
| 封装形式 | Plug | 连接器样式 | Plug |
| 磁芯材质 | Polyester | 壳体材料 | Nylon 6/6 GF |
| 包装数量 | Small Pack | 端接样式 | Wire |
| 第一触头极性 | Socket | 直径 - 环内径 | 45.29 [1.783] |
| 配接方向 | Keyed | 触点数 | 24 |
| 绝缘直径 | 3.81 [0.150] | 位数 | 24 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Thermoplastic | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | No |
| 产品子类型 | Connector | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
