点击放大查看

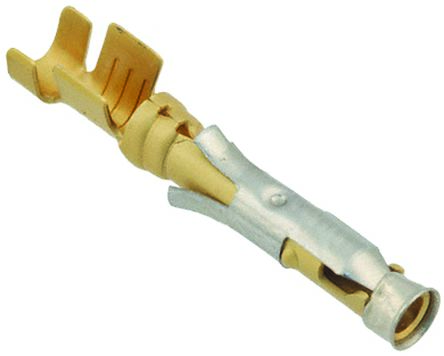

1-66358-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors III+ SKT 18-14 30AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contactfemalecrimp18-14AWGMultimate TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,30AU/FL,STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A104005CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
电气参数
| 测试电流 | 13 | ||
机械参数
| 深度 | 3.68 mm | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Tape & Reel (TR) |
| 出线方向 | Not Required | 电缆类型 | 分离式导线 |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Signal |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 外壳镀层 | Not Required | 端子尺寸 | 16 |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 4000 |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 2.03 – 2.54 mm [ .08 – .1 in ] |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 镀金 | 接触镀层厚度 | 30 |
| 线规或范围 - AWG | 18-14 | 线规或范围 - mm² | 18 → 14 AWG |
产品信息
| 备注 | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。, 反向卷起，适用于小型压接模具 | 类型 | Stamped |
| 连接器性别 | SKT | 系列 | Type III |
| 产品子类型 | Contacts | 射频系列/标准 | 66358 |
| 应用细节 | Signal | 适用产品/相关产品 | CPC Connectors, G Series Connectors, M Series Connectors |
相关型号
200893-2
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTION CPC CONTACTS Insertion Tool for CPC Contacts, Type I INSERTION TOOL, SERIES 1 InsertionToolforCPCContacts,TypeIandII,Maxinsulationdiameterof0.09 Insertion tool cont, 200893-2, TE Connectivity INSERTION TOOL CONT
213766-1
te connectivity / amp
Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Metrimate Connectors CONN RECEPT 23 POS METRIMATE Pin & Socket Connectors METRIMATE 23 POS REC 213766-1 Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE,23 POS RECPT HSG
202760-2
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) SKT MODULE, 14 POSN, G-SERIES Pin & Socket Connectors G SOCKET MODULE 14P Connector Accessories Rectangular Module Phenolic Black Search Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
213931-2
te connectivity / amp
Connector Accessories Cable Connector Kit Receptacle 34 POS Polyester Black Loose Piece Pin & Socket Connectors KIT V.35 34P CONN RCPT 34POS W/CABLE HARDWARE M Series Connectors M Series Connectors Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialConnector Style = ReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES KIT,V.35,34P
208210-1
te connectivity / amp
SKT HSG,19 POSN,METRIMATE Pin & Socket Connectors SKT HSG 19 POSN METRIMATE CONN SOCKET HSNG 19POS PNL MNT SKT HSG,19 POSN,METRIMATE Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
206837-1
te connectivity / amp
Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
213803-2
te connectivity / amp
Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece M Series Connectors 34P PLUG KIT,M-SERIES,CC,JS Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,

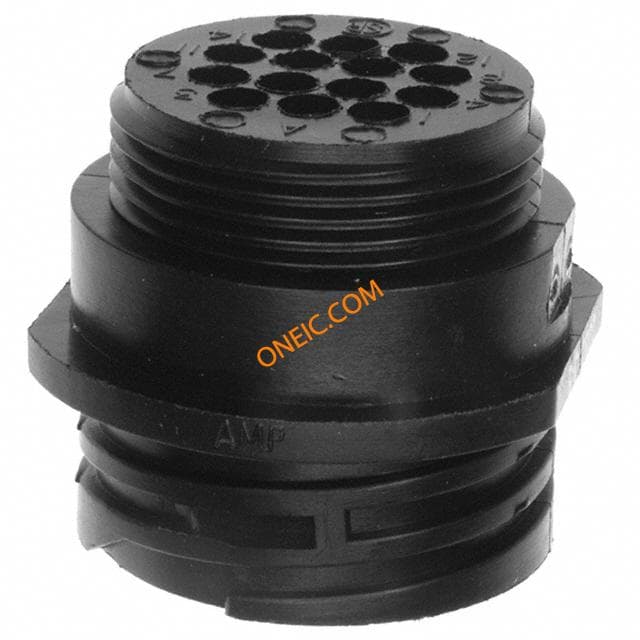

206043-5
te connectivity / amp
Conn Sealed CPC SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN RECEPT CPC 14POS REV SER 1 ConnectorHousing,CPCRecept.Assy,14Pos Standard Circular Connector RECEPTACLE 17-14 Conn Sealed CPC SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;14Pos;Sz17;Series1;FreeHang;RevSex TE Connectivity Series 1 系列 14路 自由悬挂 直向 连接器 插座 , 母触点, 螺纹接合 CPC RECPT ASSEMBLY SIZE 17-14
213522-1
te connectivity / amp
Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece M Series Connectors M-SERIES KIT 34P V.35 Connector,M series hsng ass,rcp,cble,34W Pin & Socket Connectors V.35 FEMALE CONNECT Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Phenolic Housing MaterialReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPTACLE KIT, SERIES M, 34WAY CableConnectorKit,Receptacle Connector: V35; plug; female; PIN:34; w/o terminals; for cable sale Female cable connector V35 34, 213522-1, TE Connectivity
213893-2
te connectivity / amp
Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port CPC Connectors CONN RECEPT CPC 10POS REV SER 6 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQRE REV 17-10 Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC6, 10WAY ConnectorHousing;CPCReceptacle;10Pos.;Sz.17;Series6;PanelMnt;RevSex Receptacle CPC6 Poles=10, accepts female contacts / with flange / sealed, 213893-2, TE Connectivity TE Connectivity 10路 面板安装 直向 连接器 插座 CPC RECPT SEALED SIZE 17-10

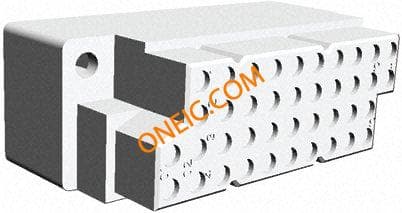

205076-2
