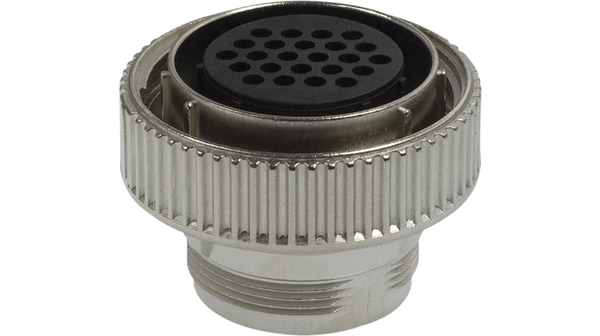

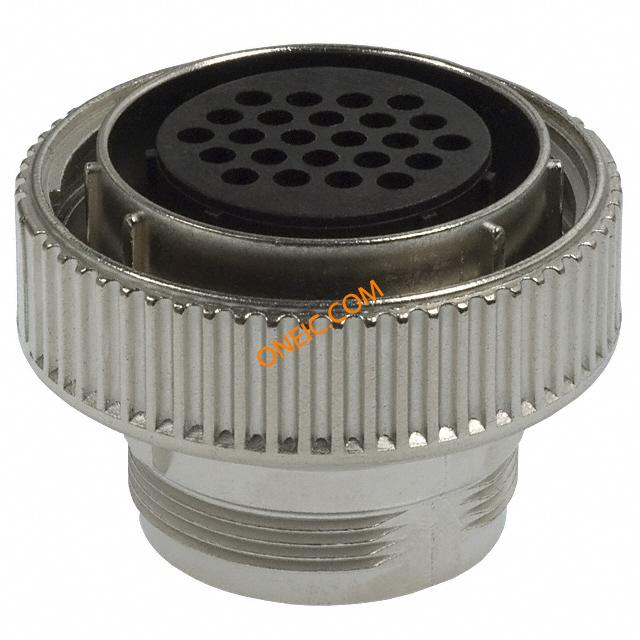

208457-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CMC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 28 with Female Contacts Standard Circular Connector PLUG STANDARD 28-24 Conn Metal Shell CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 2424 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, STD CPC1, 24WAY Connector;MetalShellCPC;PlugAssy;24Pos.;Sz.28;Series1;FreeHanging Plug CPC1 Poles=24, accepts female contacts / Free hanging/cable mount, 208457-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CMC PLUG ASSEMBLY,SZ 28-24 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 24 | 最大额定电流 | :13A |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.2 | 直径 | 55.12 mm |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 28 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 1-7/16 - 18 UNEF-2A |
| 触点形式 | 24Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Free Hanging | 封装形式 | :Zinc Alloy |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Plug |
| 插入角度 | :28-24 | 本体材料 | :Thermoplastic |
| 磁芯材质 | Zinc Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 39.62 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Female |
| 连接器颜色 | :Nickel | 配接方向 | Keyed |
| 触点数 | 24 | 绝缘直径 | 3.81 [0.150] |
| 位数 | 24 | 外壳尺寸-插件 | Metal |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 28-24 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | PL | 系列 | Series 1 |

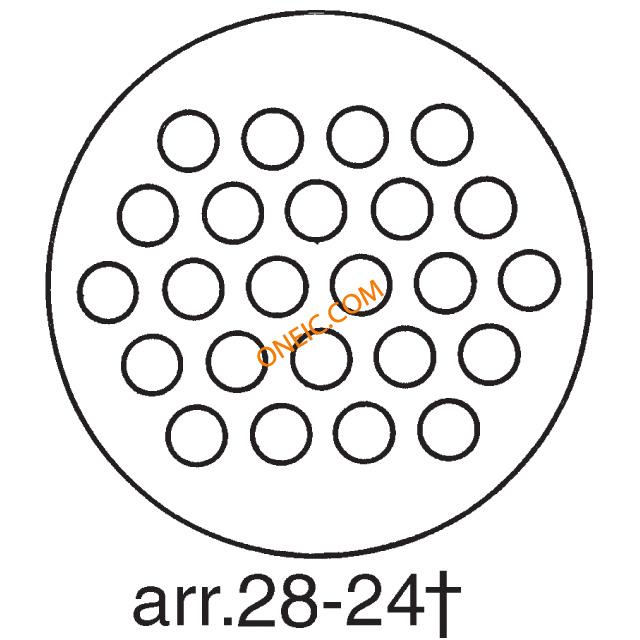

| 预加载 | No | 排列方式 | 28-24 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series1 |
| 产品子类型 | Connector | 射频系列/标准 | 208457 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 防护等级 | IP65 | 工作温度 | +125°C |
