66108-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 24-26AWG GOLD CRIMP Heavy Duty Power Connectors TYPE III + SKT 26-24 15AU/FL STRIP Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,26-24,15AU/FL,STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL档案号 | E28476 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 测试电流 | 13 | 供电电压 | 600 |
| 输出高/低电流 | No | ||
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | Discrete Wire |
| 导线线规 | 24-26 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Power |
| 引脚直径 | 1.57 [0.062] | 插针或插孔 | Socket |
| 端子尺寸 | 16 | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 铜合金 |
| 磁芯材质 | Stainless Steel | 触头材料 | Brass |
| 包装数量 | 4000 | 绝缘高度 | Yes |
| 端接样式 | Crimp | 端接表面处理 | Gold Flash |
| 接触件端接 | Crimp | 绝缘直径 | 0.89 â 1.40 [0.035 â 0.055] |
| 镀层厚度（通用） | 15µin (0.38µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 镍打底镀锡 | 法兰上方插针尺寸 | 1.57 mm [ .062 in ] |
| 接触镀层厚度 | 15 | 线规或范围 - AWG | 26-24 |
| 线规或范围 - mm² | 0.12-0.24² [26-24] | ||
产品信息
| 备注 | PRO-CRIMPER II | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | SKT |
| 系列 | Multimate Type III | 产品子类型 | Type III+ |
| 应用细节 | Signal | 适用/相关制造商 | G Series Connectors, CPC Connectors, M Series Connectors |
环境参数
| 工作温度 | -55 – 105 | ||
相关型号

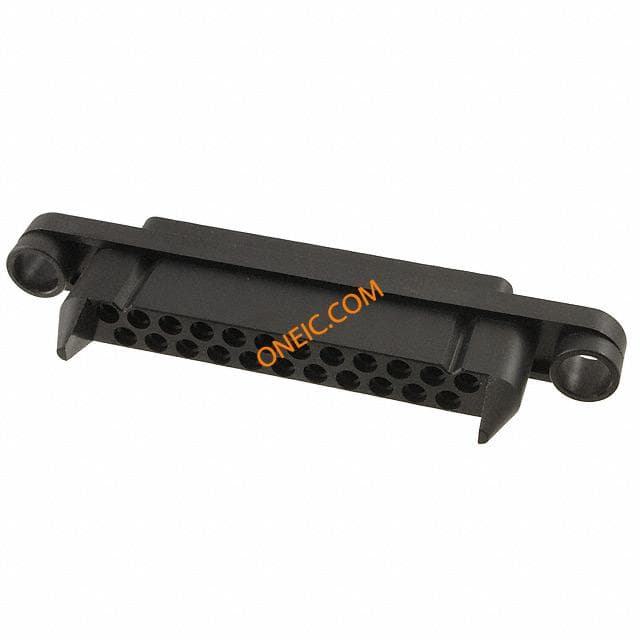

213766-1
te connectivity / amp
Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Metrimate Connectors CONN RECEPT 23 POS METRIMATE Pin & Socket Connectors METRIMATE 23 POS REC 213766-1 Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE,23 POS RECPT HSG
202760-2
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) SKT MODULE, 14 POSN, G-SERIES Pin & Socket Connectors G SOCKET MODULE 14P Connector Accessories Rectangular Module Phenolic Black Search Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
213931-2
te connectivity / amp
Connector Accessories Cable Connector Kit Receptacle 34 POS Polyester Black Loose Piece Pin & Socket Connectors KIT V.35 34P CONN RCPT 34POS W/CABLE HARDWARE M Series Connectors M Series Connectors Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialConnector Style = ReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES KIT,V.35,34P
208210-1
te connectivity / amp
SKT HSG,19 POSN,METRIMATE Pin & Socket Connectors SKT HSG 19 POSN METRIMATE CONN SOCKET HSNG 19POS PNL MNT SKT HSG,19 POSN,METRIMATE Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
201355-1
te connectivity / amp
Conn Housing PL 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 14POS BLACK Housing plug 14 way M series Pin & Socket Connectors MALE BLOCK 14 PL. Conn Housing PL 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 14WAY InterconnectPlugHousing;Phenolic;Black;Standard;14;AmpBrand,MSeries TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 公 压接连接器外壳 MALE BLOCK 14 PL.
206837-1
te connectivity / amp
Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
213803-2
te connectivity / amp
Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece M Series Connectors 34P PLUG KIT,M-SERIES,CC,JS Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
200512-2
te connectivity / amp
Conn Housing RCP 26 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 26POS BLACK Housing 26 way Receptacle M Series Pin & Socket Connectors FEMALE BLOCK 26 PL. Conn Housing RCP 26 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 26Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CONNECTOR,SOFTSHELL,M-SERIES,RECEPTACLE,26POSITION,MINIATURE,PHENOLIC,B TE Connectivity M 系列 29.209mm 节距 26 路 直 母 电缆安装 压接连接器外壳 FEMALE BLOCK 26 PL.

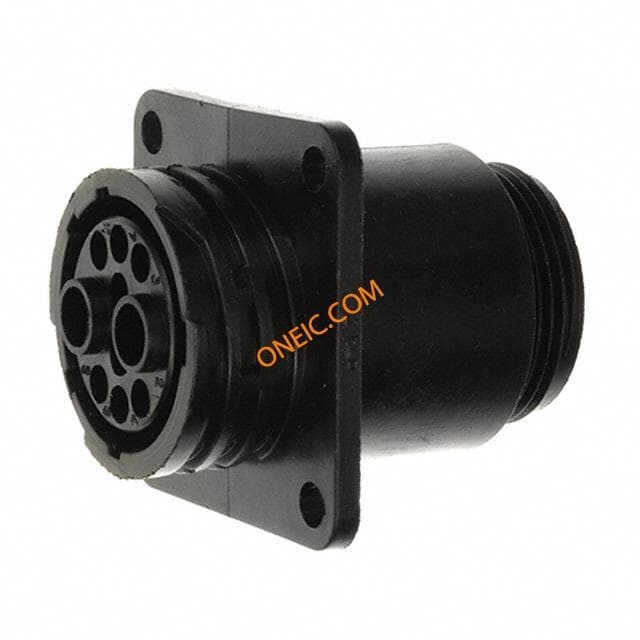

213893-2
te connectivity / amp
Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port CPC Connectors CONN RECEPT CPC 10POS REV SER 6 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQRE REV 17-10 Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC6, 10WAY ConnectorHousing;CPCReceptacle;10Pos.;Sz.17;Series6;PanelMnt;RevSex Receptacle CPC6 Poles=10, accepts female contacts / with flange / sealed, 213893-2, TE Connectivity TE Connectivity 10路 面板安装 直向 连接器 插座 CPC RECPT SEALED SIZE 17-10
1-201692-1
te connectivity / amp
Conn Housing PL 104 POS 3.81mm ST Box M Series Connectors CONN PLUG 104 POS MINI M SERIES Pin & Socket Connectors CNTR FASTENER PLUG B M Series Connectors Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CNTR FASTENER PLUG BLOCK,104P
211769-1
te connectivity / amp
Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS REV SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 17 Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, PANEL, SIZE 17, 9WAY ConnectorHousing;CPCReceptacle;9Pos;Sz.17;Series1;PanelMount;RevSex Connector: circular; Series: CPC Series 1; socket; female; PIN:9 Female receptacle series CPC 9-pin CPC 1 9P Female 17, 211769-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 母触点 17-9 CPC RECEPT REV SEX

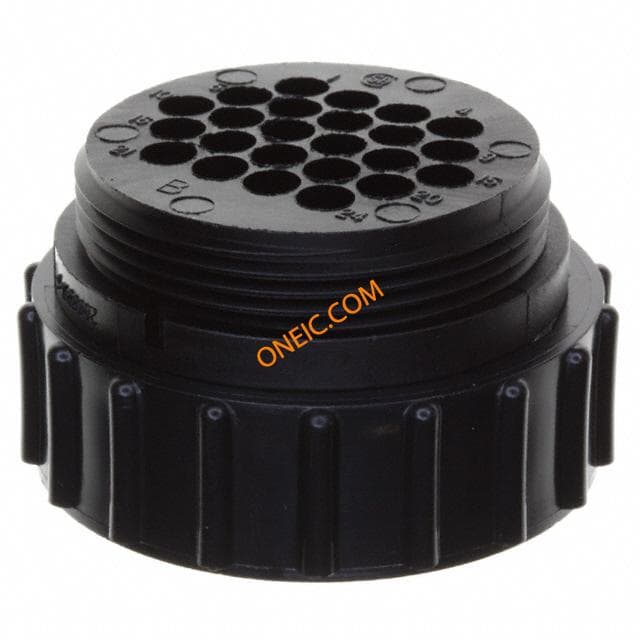

206837-2
te connectivity / amp
Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS SIZE 23 Standard Circular Connector CPC PLUG SZ 23-24 SMALL PACK Conn CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:Not Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = PlugSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG,SZ 23-24,SMALL PACK
213801-1
te connectivity / amp
Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series and V.35 Connectors CONN RCPT HOUSING 34POS VERT BLK Pin & Socket Connectors M-SER REC HSG 34 POS Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES RCPT HOUSING,34 POS
213685-3
te connectivity / amp
Conn Housing RCP 34 POS Crimp ST Panel Mount Loose Piece Pin & Socket Connectors 34P RCPT KIT M-SERIES,CC,JS M Series and V.35 Connectors CONN RECEPTACLE HSG KIT 29POS M Series Connectors M Series Connectors Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Phenolic Housing MaterialReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 34P RCPT KIT,M-SERIES,CC,JS
208470-1
te connectivity / amp
Conn Metal Shell CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Circular Plastic Connectors CONN PLUG CMC 37POS STD SER 1 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 28 with Female Contacts Standard Circular Connector PLUG STANDARD 28-37 Conn Metal Shell CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, STD CPC1, 37WAY Connector;MetalShellCPC;PlugAssy;37Pos.;Sz.28;Series1;FreeHanging Plug CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 208470-1, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CMC PLUG ASSEMBLY,SZ 28
208457-1
te connectivity / amp
Conn Metal Shell CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CMC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 28 with Female Contacts Standard Circular Connector PLUG STANDARD 28-24 Conn Metal Shell CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 2424 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, STD CPC1, 24WAY Connector;MetalShellCPC;PlugAssy;24Pos.;Sz.28;Series1;FreeHanging Plug CPC1 Poles=24, accepts female contacts / Free hanging/cable mount, 208457-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CMC PLUG ASSEMBLY,SZ 28-24

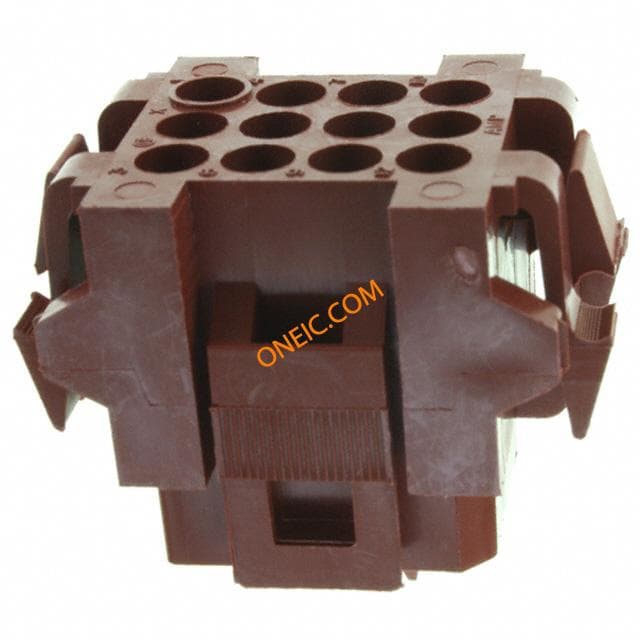

207017-1
