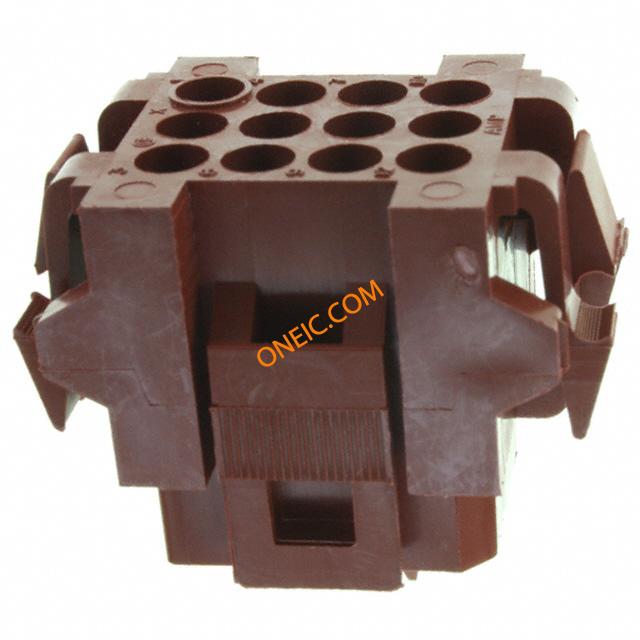

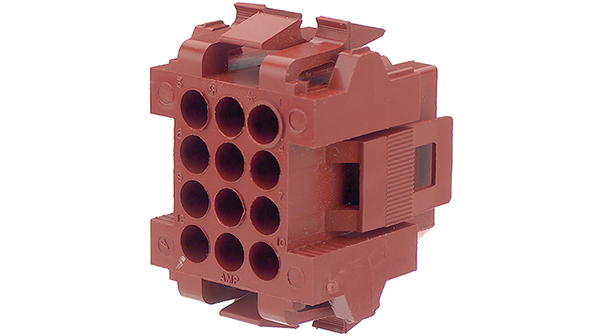

207017-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 5mm ST Metrimate Connectors CONN PLUG 12 POS METRIMATE 12 way male connector,5mm pitch Pin & Socket Connectors 12P METRIMATE PLUG Conn Housing PL 12 POS 5mm ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 12PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, 12WAY, 5 Connector,SoftShell;Plug;12;14A(Max.);600;Technyle;Red;LockingLatch Crimp housing 5 mm Poles 12 Contact DesignFemale Metrimate, 207017-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 12 路 直 公 压接连接器外壳 METRIC PLUG, 12 POS |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 375 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL,VDE | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 27.15mm |
| 间距 | 5 mm | 高度 | 23.8 mm |
| 长度 | 23.8mm | 重量 | 0.004 |
| 包装方式 | Bulk | 排间距 | 0.197" (5.00mm) |
| 触头类型 | Female Socket | 极化 | PolarizingTab |
| 第二连接器 | With | 外壳颜色 | Red |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Housing | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 4 |
| 轴直径 | Without | 连接器用途 | Square Grid |
| 锁定特性 | Locking Latch | 壳体材料 | Technyle |
| 总长度 | 23.8 mm | 安装特性 | Without |
| 包装数量 | 600 | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.197" | 第一触头极性 | Pin (Male) |
| 传感器连接器 | Without | 配接方向 | Polarizing Tab |
| 触点数 | 12 | 接触件端接 | Crimp and Solder |
| 位数 | 12 | 中心触点表面处理 | 5.0 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMP Metrimate |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 配置 | SquareGrid | 其他规格 | No |
| 适用产品/相关产品 | Square Grid Pin & Socket Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
相关型号
