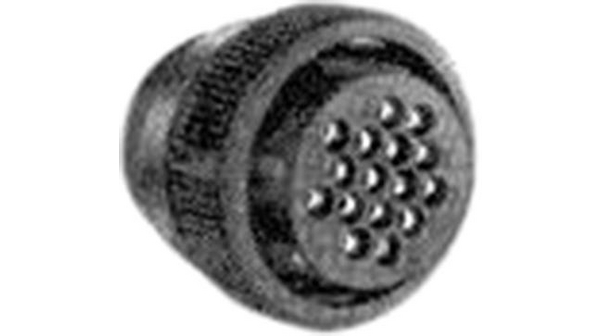

206837-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600V | 通道数量 | 24 |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 2.76 | 直径 | 45.29 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 24Signal |
| 触点尺寸 | 16 | 触头类型 | 24Signal |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 23 | 连接器样式 | Plug |
| 插入角度 | :23-24 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon 6.6 (Polyamide 6.6) | 磁芯材质 | Polyester |
| 壳体材料 | Nylon 6/6 GF | 总长度 | 27.43 mm |
| 包装数量 | Standard | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | SKT | 连接器颜色 | :Black |
| 直径 - 环内径 | 45.29 [1.783] | 配接方向 | Keyed |
| 触点数 | 24 | 绝缘直径 | 3.81 [0.150] |
| 位数 | 24 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Free | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-24 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Sealed CPC | 连接器性别 | PL |
| 系列 | Series 1 | 钥匙类型 | A |
| 极性 | A | 预加载 | No |
| 排列方式 | 23-24 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 206837 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 防护等级 | IP65 | ||
相关型号
211839-1
te connectivity / amp
Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port CPC Connectors CONN RCPT CPC 24POS STD SER 1 Standard Circular Connector REC PIN 23-24 PNL Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2424 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, RECEPTACLE, CIRCULAR, 24WAY CPC RCPT SZ 23-24 W/THRD INSRT
1-66109-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 26-24 series 1 Multimate CONN SOCKET 24-26AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-24AWG, CRIMP III+ SKT,26-24,TIN-LEAD,SMPACK
66100-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONTACT SKT 16-18AWG STRIP GOLD Pin & Socket Connectors III+ SKT 18-16 30AU/FL STRIP III+ SKT,18-16,30AU/FL,STRIP III+ SKT,18-16,30AU/FL,STRIP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
206838-4
te connectivity / amp
Conn Sealed CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN RECEPT CPC 24POS STD SER 1 Standard Circular Connector RECEPTACLE 24 PIN free hanging s.s. 23 Conn Sealed CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:Without Contacts24 Positions24 Signal Positions0 Power PositionsHousing Gender = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;FreeHang;StdSex CPC RECPT SEALED SIZE 23-24
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
206838-3
te connectivity / amp
Conn Sealed CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 24 PIN shell size 23 Conn Sealed CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=24, accepts male contacts / with flange / sealed, 206838-3, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-24
213780-1
te connectivity / amp
Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY S 72 CPC Connectors CONN CPC RCPT 24POS W/PINS PNLMT CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:ConnectorConnector Type = Receptacle24 Positions24 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-24
796387-1
te connectivity / amp
Conn CPC PIN 24 POS Solder RA Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC POSTED RCPT 23-24 R/A CPC Connectors CONN RCPT 24POS CPC PNL MT PLAST CPC POSTED RCPT,23-24,R/A CPC POSTED RCPT,23-24,R/A Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
1-66360-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 18-14 Series 1 Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesBright Tin-Lead Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Multimate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-14,TIN-LEAD,SMPACK
213588-2
te connectivity / amp
Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Cable Assemblies CPC RCPT SZ 23-24 W/THRD INSRT CPC Connectors CONN RCPT CPC 24POS PANEL MNT Standard Circular Connector CPC RCPT SZ 23-24 W/THRD INSRT CPC Connectors Product Highlights:ConnectorNumber of Positions = 24ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RCPT SZ 23-24 W/THRD INSRT
213798-3
te connectivity / amp
Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Standard Circular Connector CIRC REC PIN 23-24 CPC Connectors CONN CPC RECPT 24POS PANEL MT Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-24
206838-1
te connectivity / amp
Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Standard Circular Connector RECEPTACLE 24 PIN shell size 23 CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONN, RECEPTACLE, 24 WAY, PANEL ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:24 Receptacle CPC 1 24P Female 23, 206838-1, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 23-24 RECEPT
213588-1
te connectivity / amp
Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC RCPT SZ 23-24 W/ 12 CPC Connectors CONN CPC RCPT 24POS W/PINS PCB CPC RCPT SZ 23-24 W/THRD INSRT
1-796387-1
te connectivity / amp
Conn CPC PIN 24 POS Solder RA Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 23-24 R/A LF CPC Connectors CONN RCPT CPC 24POS R/A CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC Series 1 Flange Receptacle 24 Position Size 23 Circular Plastic Connector CPC PSTD RCPT,23-24,R/A LF
206838-2
te connectivity / amp
Conn CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 24 PIN free hanging s.s. 23 Conn CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 24WAY ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;FreeHang;StdSex Receptacle CPC1 Poles=24, accepts male contacts / Free hanging/cable mount, 206838-2, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插座 , 公触点 RECEPT,SZ 23,CPC
66331-8
TE Connectivity / AMP
Standard Circular Contacts SKT 24-20 30AWG REEL Multimate CONN SKT .062 20-24AWG AU CRIMP CONN SOCKET 20-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,24-20,30AU/FL,STRIP 20-24 AWG Gold over Nickel Crimp Socket Contact for CPC Series 1 Connectors TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金触点 III+ SKT,24-20,30AU/FL,STRIP
213780-2
te connectivity / amp
Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-24 CPC Connectors CONN CPC RECPT 24POS CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Preloaded24 Positions24 Signal Positions0 Power PositionsHousing Gender = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-24
1-66358-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors III+ SKT 18-14 30AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contactfemalecrimp18-14AWGMultimate TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,30AU/FL,STRIP
1-796387-2
te connectivity / amp
Conn CPC PIN 24 POS Solder RA Thru-Hole 24 Terminal 1 Port Standard Circular Connector REC PIN 23-24 PCB CPC Connectors CONN RCPT CPC 24POS R/A W/INSERT Conn CPC PIN 24 POS Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:Preloaded24 Positions24 Signal Positions0 Power PositionsConnector Style = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC 24 Position Right Angle Panel Mount-with Flange Receptacle CPC PSTD RCPT,23-24,R/A LF

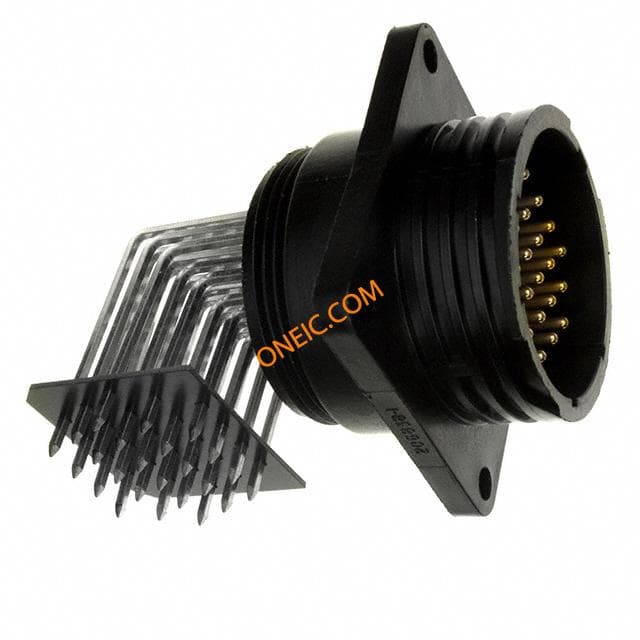

1776905-1
