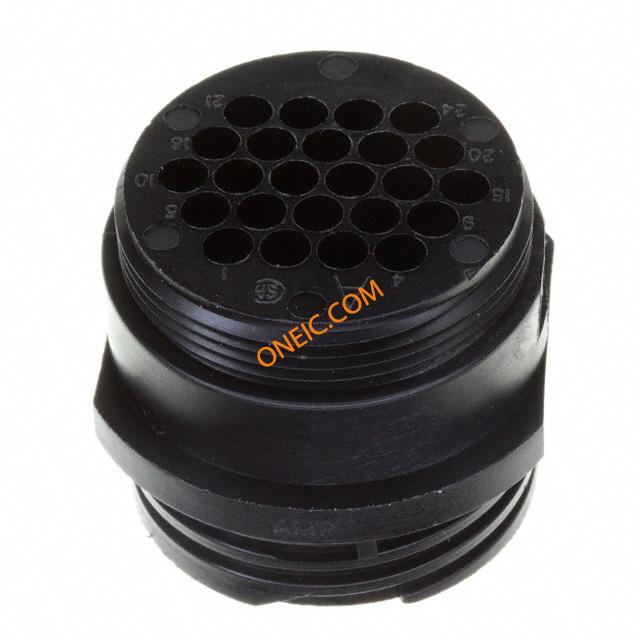

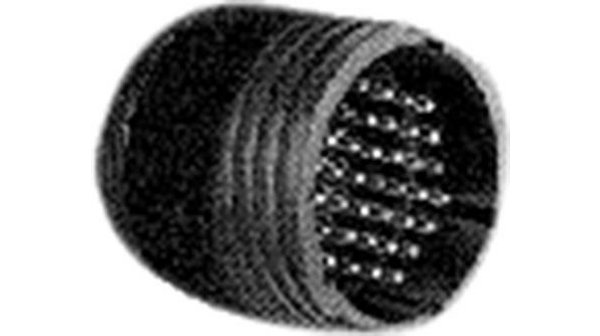

206838-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 24 PIN free hanging s.s. 23 Conn CPC PIN 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 24WAY ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;FreeHang;StdSex Receptacle CPC1 Poles=24, accepts male contacts / Free hanging/cable mount, 206838-2, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插座 , 公触点 RECEPT,SZ 23,CPC |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 工作电压 | :250V |
| 通道数量 | 24 | 最大额定电流 | :13A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 44.01 mm |
| 高度 | 38.22 mm | 密封型 | No |
| 重量 | 0.02 | 直径 | 44.01 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 24Signal |
| 触点尺寸 | 16 | 触头类型 | 24Signal |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Glass filled nylon 6.6 | 连接器样式 | Receptacle |
| 插入角度 | :23-24 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 34.29 mm |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | PIN | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 24 |
| 面板开孔形状 | :40.9mm | 位数 | 24 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Free | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-24 | ||
产品信息

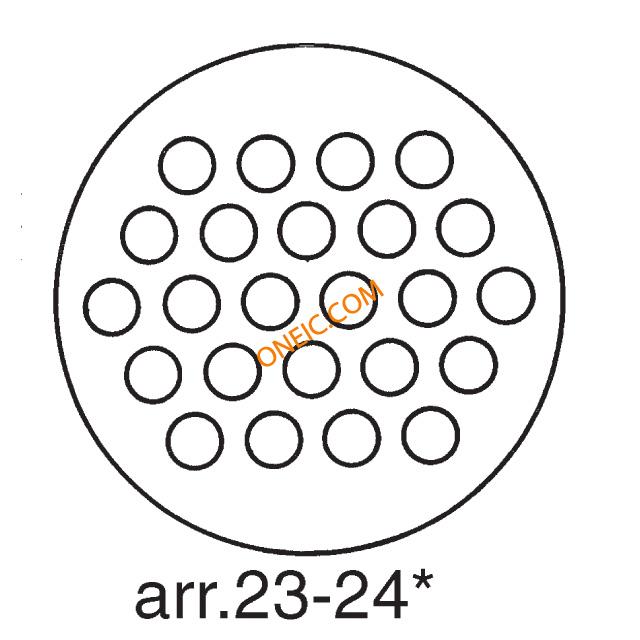

| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | No |
| 排列方式 | 23-24 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 206838 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 防护等级 | IP65 | 工作温度 | +105°C |
相关型号

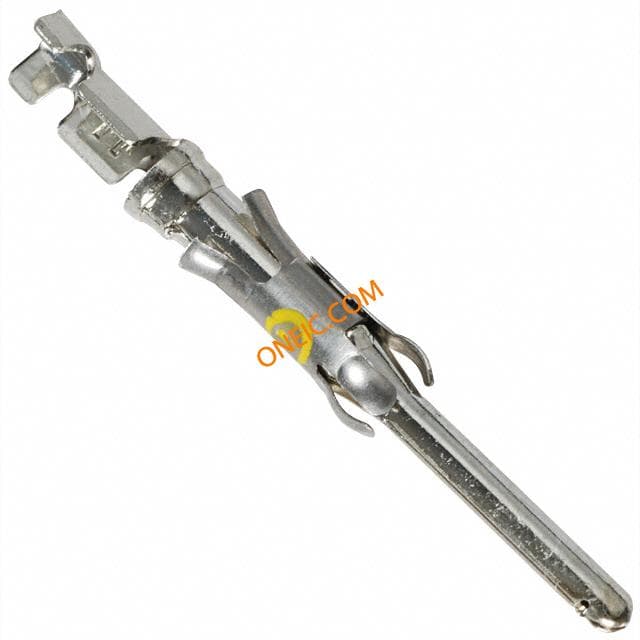

66103-4
