点击放大查看
1-66098-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A105436CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 测试电流 | 13 | ||
机械参数
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 端子尺寸 | 16 | 连接器类型 | Connector Circular |
| 接触镀层 | Tin Over Nickel | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 4000 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 绝缘直径 | 2.03 – 2.54 mm [ .08 – .1 in ] |
| 镀层厚度（通用） | 50µin (1.27µm) | 兼容外壳尺寸（如TM-700等） | M 系列连接器 |
| 接触件表面处理 - 配合 | 锡 | ||
产品信息
| 备注 | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。, 导线带长 — 3.96 [.156]，针对所有导线尺寸。 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | Multimate Type III |
| 产品子类型 | Contacts | 应用细节 | Signal |
相关型号
213932-4
te connectivity / amp
Conn Housing PL 34 POS Crimp ST Panel Mount Individual M-SERIES KIT,V.35,34P,UNASSM Pin & Socket Connectors KIT V.35 34P UNASSM Conn Housing PL 34 POS Crimp ST Panel Mount Individual Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialHousing Gender = PlugSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
200893-2
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTION CPC CONTACTS Insertion Tool for CPC Contacts, Type I INSERTION TOOL, SERIES 1 InsertionToolforCPCContacts,TypeIandII,Maxinsulationdiameterof0.09 Insertion tool cont, 200893-2, TE Connectivity INSERTION TOOL CONT
213932-3
te connectivity / amp
Conn Housing PL 34 POS Crimp ST Panel Mount Individual M-SERIES KIT,V.35,34P,UNASSM Pin & Socket Connectors KIT V.35 34P UNASSM Conn Housing PL 34 POS Crimp ST Panel Mount Individual Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Polyester Housing MaterialPlugSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
213931-2
te connectivity / amp
Connector Accessories Cable Connector Kit Receptacle 34 POS Polyester Black Loose Piece Pin & Socket Connectors KIT V.35 34P CONN RCPT 34POS W/CABLE HARDWARE M Series Connectors M Series Connectors Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialConnector Style = ReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES KIT,V.35,34P
206151-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, PANEL ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:37 Receptacle CPC1 Poles=37, accepts male contacts / with flange, 206151-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 23-37 RECEPT STD SEX
208209-2
te connectivity / amp
Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Metrimate Connectors CONN RECEPT 19 POS METRIMATE TE Connectivity 5.08mm 19 Way 5 Row Straight Cable Mount Female Multiway Connector Pin & Socket Connectors 19 POS METRI PIN HSG Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, RCPT, POLYESTER METRIMATEDRAWERCONN,METRIMATEPINHSG19POSN TE Connectivity 19路 (5行) 5.08mm节距 直 电缆安装 母 METRIMATE PIN HSG 19 POSN
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
213803-2
te connectivity / amp
Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece M Series Connectors 34P PLUG KIT,M-SERIES,CC,JS Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
208715-1
te connectivity / amp
Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CMC 7POS STD SER 1 Standard Circular Connector RECP SQUARE STD 14-7 Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 7WAY Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.14;Series1;PanelMount RECEPT ASSY,SZ 14-7,CMC
211772-3
te connectivity / amp
Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Standard Circular Connector PLUG REV SIZE 23-19 CPC Connectors CONN PLUG 19POS CPC FREE HANGING CPC Connectors Product Highlights:ConnectorNumber of Positions = 19PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SIZE 23-19
213522-1
te connectivity / amp
Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece M Series Connectors M-SERIES KIT 34P V.35 Connector,M series hsng ass,rcp,cble,34W Pin & Socket Connectors V.35 FEMALE CONNECT Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Phenolic Housing MaterialReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPTACLE KIT, SERIES M, 34WAY CableConnectorKit,Receptacle Connector: V35; plug; female; PIN:34; w/o terminals; for cable sale Female cable connector V35 34, 213522-1, TE Connectivity
211768-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS REV SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:9 Cable plug, series CPC 9-pin CPC 1 9P Male 17, 211768-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-9
211771-1
te connectivity / amp
Conn CPC PIN 19 POS Crimp ST Panel Mount 19 Terminal 1 Port CPC Connectors CONN RECEPT CPC 19POS STD SER 1 19 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 19 PIN shell size 23 Conn CPC PIN 19 POS Crimp ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCReceptacle;19Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC1 Poles=19, accepts male contacts / with flange, 211771-1, TE Connectivity TE Connectivity 19路 面板安装 直向 连接器 插座 , 公触点 23-19 CPC RECEPT, STND SEX
206036-8
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD Standard Circular Connector RECEPT SZ 17-16 CPC Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 1616 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ17-16CPC,W/INSERTS RECEPT,SZ 17-16 CPC,W/INSERTS
211400-1
te connectivity / amp
Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CPC 7POS REV SER 1 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector PLUG 7 PIN shell size 13 Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG ASSEMBLY, SIZE 13-7 ConnectorHousing;CPCPlugAssy;7Pos.;Sz.13;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:7 Plug CPC1 Poles=7, accepts male contacts / Free hanging/cable mount, 211400-1, TE Connectivity TE Connectivity 7路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 13-7
206705-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS STD SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 13 with Male Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 13 Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 13-9, PANEL ConnectorHousing;CPCReceptacle;9Pos.;Sz.13;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:9 CPC (Circular Plastic) and Circular Metal-Shell Connectors; Housing Connector Style: Receptacle 9 Positions 9 Signal Positions 0 Power Positions Receptacle CPC1 Poles=9, accepts male contacts / with flange, 206705-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC RECP. ASY SIZE 13-9

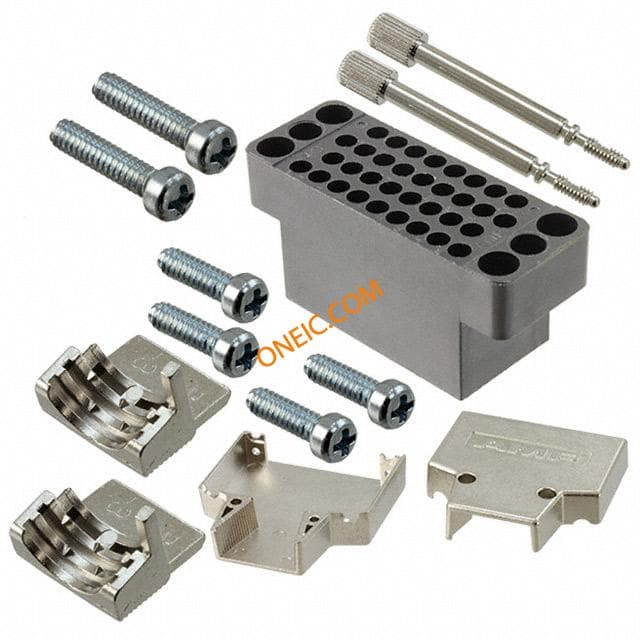

213684-2
