206705-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS STD SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 13 with Male Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 13 Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 13-9, PANEL ConnectorHousing;CPCReceptacle;9Pos.;Sz.13;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:9 CPC (Circular Plastic) and Circular Metal-Shell Connectors; Housing Connector Style: Receptacle 9 Positions 9 Signal Positions 0 Power Positions Receptacle CPC1 Poles=9, accepts male contacts / with flange, 206705-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC RECP. ASY SIZE 13-9 |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 通道数量 | 9 |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 32.54 mm |
| 高度 | 32.54 mm | 密封型 | No |
| 重量 | 0.012 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 13 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 3/4 - 20 UNEF-2A |
| 触点形式 | 9Signal | 触点尺寸 | 16 |
| 触头类型 | 9Signal | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 封装形式 | size 13 |
| 连接器样式 | Receptacle | 插入角度 | :13-9 |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 总长度 | 34.29 mm | 包装数量 | 1 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | socket | 端接样式 | Wire |
| 第一触头极性 | PIN | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 9 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.125" |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 13-9 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 1 | 钥匙类型 | A |
| 极性 | A | 预加载 | No |
| 排列方式 | 13-9 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 206705 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 防护等级 | IP65 | 工作温度 | +105°C |
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66602-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18 AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,18-14,TIN-LEAD,SMPACK
66597-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors III+ PIN18-14 12000 Multimate CONN PIN .062 14-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact III+ PIN,18-14,TIN-LEAD,STRIP
66460-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 32 AWG GOLD CRIMP Pin & Socket Connectors PIN .062 DIA .025 SQ POST LP PIN,.062 DIA,.025 SQ POST,LP PIN,.062 DIA,.025 SQ POST,LP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
164163-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASSY Multimate CONN PIN 20-24AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;24-20AWG MultiMate Series 24-20 AWG Pin Crimp Gold Flash Loose Piece Stamped Connector Crimp Ground Pin 13 A, 164163-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASSY
206708-1
te connectivity / amp
Conn Sealed CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector PLUG 9 POSITION shell size 13 Conn Sealed CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 13-9, FREE CIR CONNECTOR, PLUG, SIZE 13, 9POS, FREE HANGING ConnectorHousing;CPCPlugAssy;9Pos.;Sz.13;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount, 206708-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 13-9
66098-1
te connectivity / amp
III+ PIN,18-16,30AU>10,STRIP Multimate CONN PIN 16-18 AWG 30GOLD CRIMP Type III Series Size 16 Male Circular Connector Contact, Crimp,Wire size 18 to 16AWG Pin & Socket Connectors III+ PIN 18-16 30AU>10 STRIP 66098-1 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MultimateIII,contact,pin,0.80-1.40mm² TE Connectivity Type III 系列 公 压接端接 圆形 连接器 触芯, 使用于Multimate III 系列连接器, 18 → 16 AWG 线规格
66361-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP
66332-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG 15 GOLD CRIMP Power to the Board PIN 24-20 GOLD 12000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,15AU/FL,STRIP
1-66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
202236-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Pin & Socket Connectors TIN PIN SOLDR TAB Multimate CONN PIN SOLDER CPC TIN 202236-2 Contact PIN Crimp ST Cable Mount Reel Product Highlights:Pin with Solder TabBright Tin-Lead Contact Mating Area Plating MaterialCopper Alloy Contact MaterialBright Tin-Lead Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact,Multimate;PinwithSolderTab;16;CopperAlloy;Signal;Discrete III+ PIN,SOLTAB,TIN-LEAD,LP

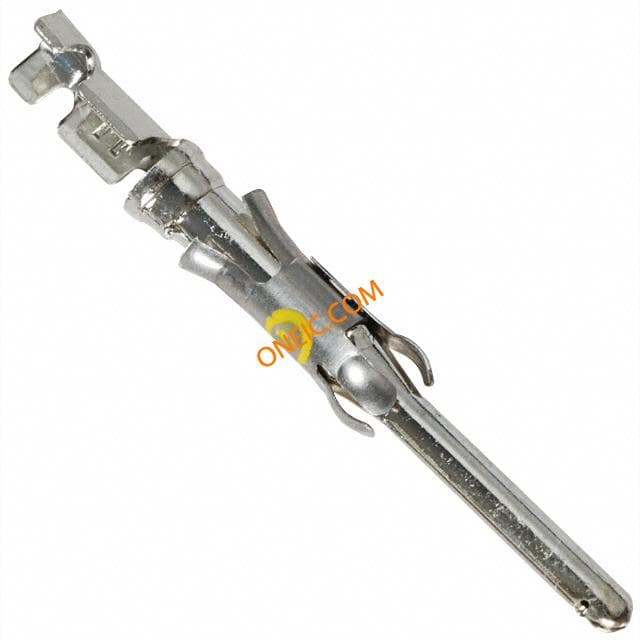

66103-2
