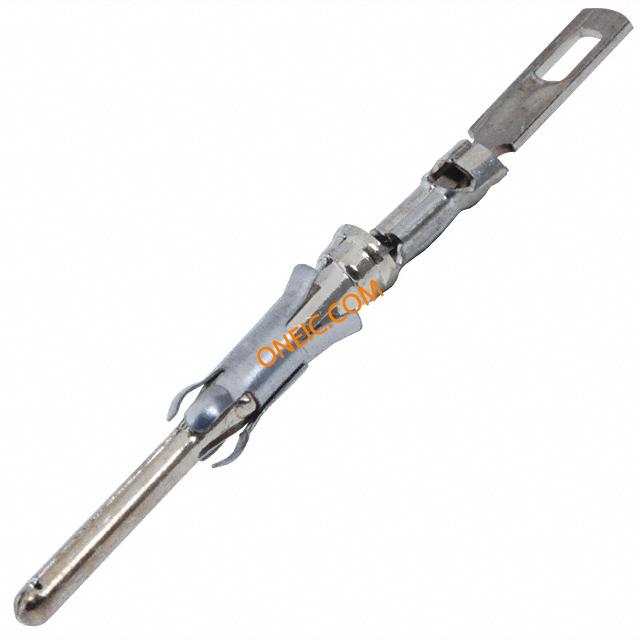

202236-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Reel Pin & Socket Connectors TIN PIN SOLDR TAB Multimate CONN PIN SOLDER CPC TIN 202236-2 Contact PIN Crimp ST Cable Mount Reel Product Highlights:Pin with Solder TabBright Tin-Lead Contact Mating Area Plating MaterialCopper Alloy Contact MaterialBright Tin-Lead Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact,Multimate;PinwithSolderTab;16;CopperAlloy;Signal;Discrete III+ PIN,SOLTAB,TIN-LEAD,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | No RoHS Version Available | ||
电气参数
| 测试电流 | 13 | 输出电流 | 13A |
| 最大额定电流 | 13 A | ||
机械参数
| 镀层 | Tin-Lead | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 电缆类型 | 分离式导线 | 端接方式 | Crimp |
| 触头类型 | Power | 引脚直径 | 0.062in. |
| 插针或插孔 | Pin | 端子尺寸 | 16 |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 框架材料 | StainlessSteel | 包装数量 | 1000 |
| 端接样式 | 焊接公端 | 第一触头极性 | Pin (Male) |
| 接触件尾部长度 | 16 | 接触件端接 | Solder Eyelet |
| 镀层厚度（通用） | 50µin (1.27µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 锡铅 | ||
产品信息
| 备注 | 这些端子可用于所有连接器护套的 MultiMate 端子位置。 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | Multimate III+ | 制造商全称 | AMP |
| 产品子类型 | Contacts | 应用细节 | Signal |
| 适用产品/相关产品 | MseriesandCPCConnectors | ||
