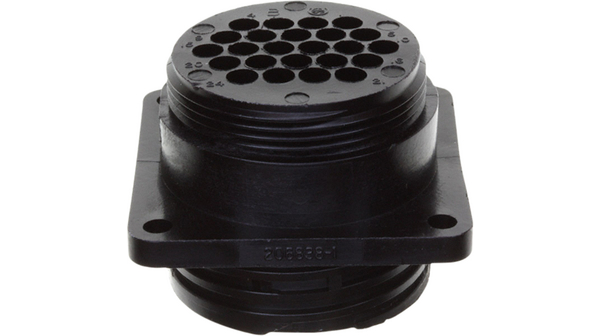

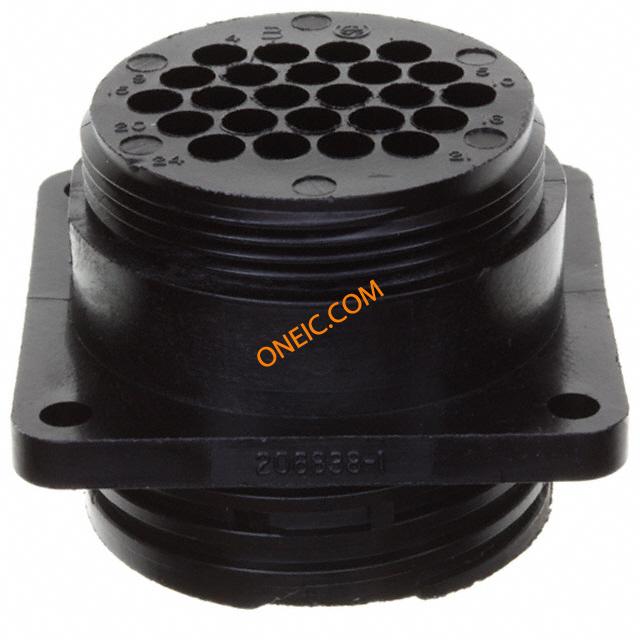

206838-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 24 PIN shell size 23 Conn Sealed CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=24, accepts male contacts / with flange / sealed, 206838-3, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-24 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 极数 | 24 | 防溅等级 | 浸入 |
| 通道数量 | 24 | 连接器类型 - 电压输入 | 标准 |
机械参数
| 颜色 | Black | 密封型 | Yes |
| 外形尺寸(长x宽) | 23 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Elastomer |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 面板厚度 | 0.125" |
| 壳体材料 | Thermoplastic | 包装数量 | 100 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接排数 | 压接 | 端接样式 | Wire |
| 第一触头极性 | Male | 连接器颜色 | black |
| 配接方向 | Keyed | 触点数 | 24 |
| 端接表面处理 | 带有 | 位数 | 24 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Sealed CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | No |
| 排列方式 | 23-24 | CAD图纸 | 3D CAD Model |
| 外设 | Gray | 制造商全称 | Series1 |
| 产品子类型 | Connector | 其他规格 | Without |
| 输出配置 | Panel Mount, Flange | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 密封等级 | Peripheral | 工作范围 | 密封 |
| 防护等级 | IP65 | 工作温度 | -40...+105 °C |
