66332-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG 15 GOLD CRIMP Power to the Board PIN 24-20 GOLD 12000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,15AU/FL,STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A25121TR |
| 产品类别 | Power to the Board | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 测试电流 | 13 | 最大额定电流 | 13 A |
| 输出高/低电流 | No | ||
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | Discrete Wire |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Power |
| 引脚直径 | 1.57 [0.062] | 插针或插孔 | Pin |
| 端子尺寸 | 16 | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 黄铜 |
| 磁芯材质 | Stainless Steel | 触头材料 | Brass |
| 包装数量 | 4000 | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 端接表面处理 | Gold Flash | 接触件端接 | Crimp |
| 绝缘直径 | 2.03 â 2.54 [0.080 â 0.100] | 镀层厚度（通用） | 15µin (0.38µm) |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 | 接触件表面处理 - 配合 | 镍打底镀锡 |
| 接触镀层厚度 | 15 | 线规或范围 - AWG | 24-20 |
| 线规或范围 - mm² | 0.20-0.60² [24-20] | ||
产品信息
| 备注 | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | Multimate Type III | 产品子类型 | Type III+ |
| 应用细节 | Signal | 适用/相关制造商 | G Series Connectors, CPC Connectors, M Series Connectors |
相关型号

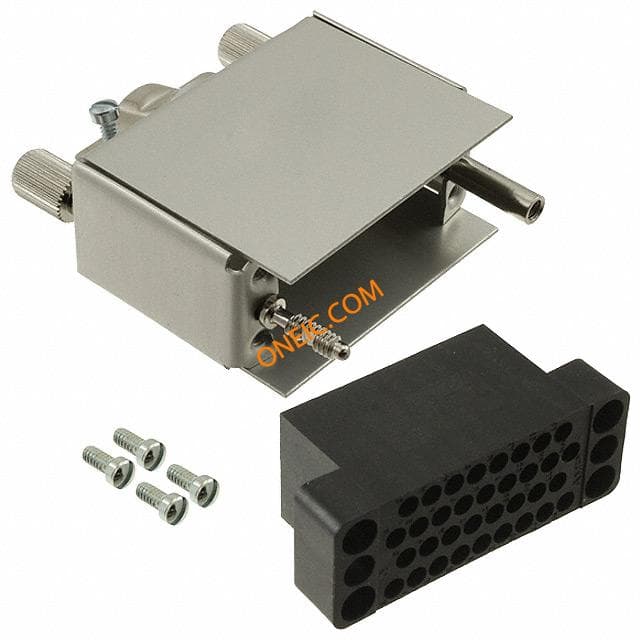

213932-4
te connectivity / amp
Conn Housing PL 34 POS Crimp ST Panel Mount Individual M-SERIES KIT,V.35,34P,UNASSM Pin & Socket Connectors KIT V.35 34P UNASSM Conn Housing PL 34 POS Crimp ST Panel Mount Individual Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialHousing Gender = PlugSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
200893-2
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTION CPC CONTACTS Insertion Tool for CPC Contacts, Type I INSERTION TOOL, SERIES 1 InsertionToolforCPCContacts,TypeIandII,Maxinsulationdiameterof0.09 Insertion tool cont, 200893-2, TE Connectivity INSERTION TOOL CONT
194279-1
te connectivity / amp
Conn Housing RCP 11 POS ST Heavy Duty Power Connectors HOUSING RCPT 11 POS Drawer Connectors, High Current CONN HOUSING RCPT 11POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 11Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,11 POS

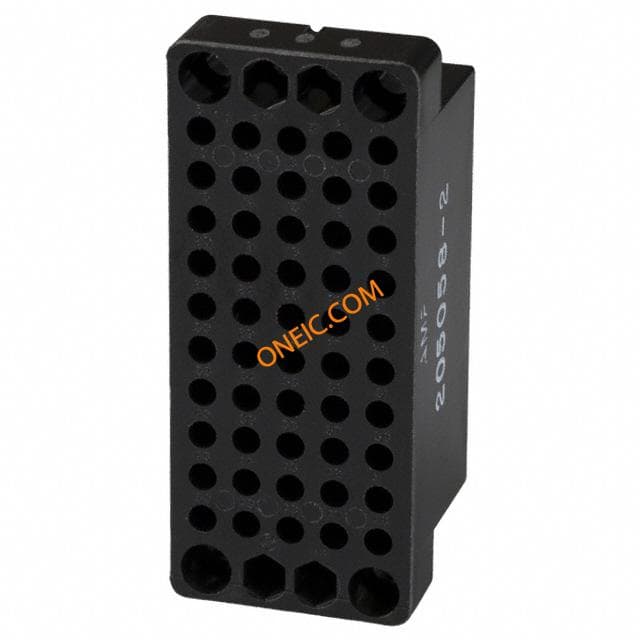

205058-2
te connectivity / amp
Conn Housing PL 50 POS 5.08mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 50 POS BLACK Pin & Socket Connectors 50 POS BLOCK 50 POS PLUG HSG M Series Connectors Product Highlights:HousingNumber of Positions = 50Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 50WAY 50 POS. BLOCK (SOCKET)
213931-2
te connectivity / amp
Connector Accessories Cable Connector Kit Receptacle 34 POS Polyester Black Loose Piece Pin & Socket Connectors KIT V.35 34P CONN RCPT 34POS W/CABLE HARDWARE M Series Connectors M Series Connectors Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialConnector Style = ReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES KIT,V.35,34P

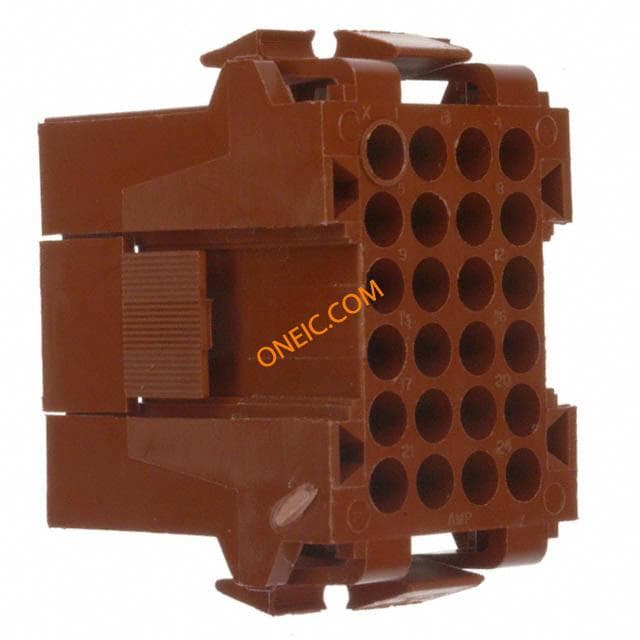

207305-1
te connectivity / amp
Conn Housing RCP 24 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 24 POS METRIMATE 24 way female connector,5mm pitch Pin & Socket Connectors 24P SQ GRID RCPT Conn Housing RCP 24 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 24ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 24WAY, 5 Connector,SoftShell;Receptacle;24;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 24 Contact DesignMale Metrimate, 207305-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 24 路 直 母 压接连接器外壳 24 POS SQ GRID METRIMATE-RCPT

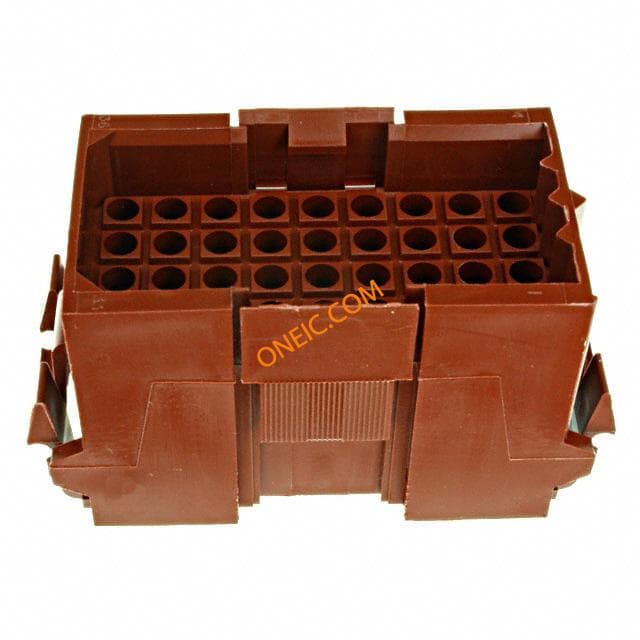

207020-1
te connectivity / amp
Conn Housing RCP 36 POS 5mm ST Metrimate Connectors CONN RECEPT 36 POS METRIMATE 36 way female connector,5mm pitch Pin & Socket Connectors SQ GRID 36 PIN CONN Conn Housing RCP 36 POS 5mm ST Product Highlights:HousingRectangular Connector ConfigurationNumber of Positions = 36ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 36WAY, 5 Connector,SoftShell;Receptacle;36;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 36 Contact DesignMale Metrimate, 207020-1, TE Connectivity TE Connectivity Metrimate 系列 9 行 5mm 节距 36 路 直 母 压接连接器外壳 METRIMATE RCPT 36 POS

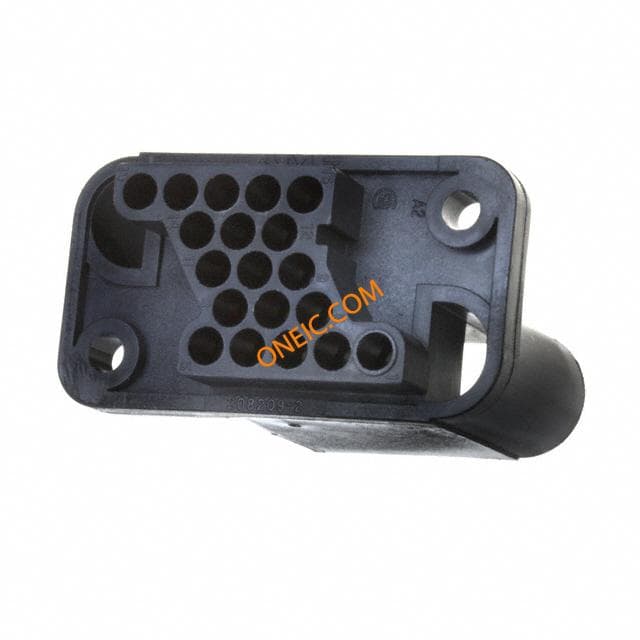

208209-2
te connectivity / amp
Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Metrimate Connectors CONN RECEPT 19 POS METRIMATE TE Connectivity 5.08mm 19 Way 5 Row Straight Cable Mount Female Multiway Connector Pin & Socket Connectors 19 POS METRI PIN HSG Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, RCPT, POLYESTER METRIMATEDRAWERCONN,METRIMATEPINHSG19POSN TE Connectivity 19路 (5行) 5.08mm节距 直 电缆安装 母 METRIMATE PIN HSG 19 POSN

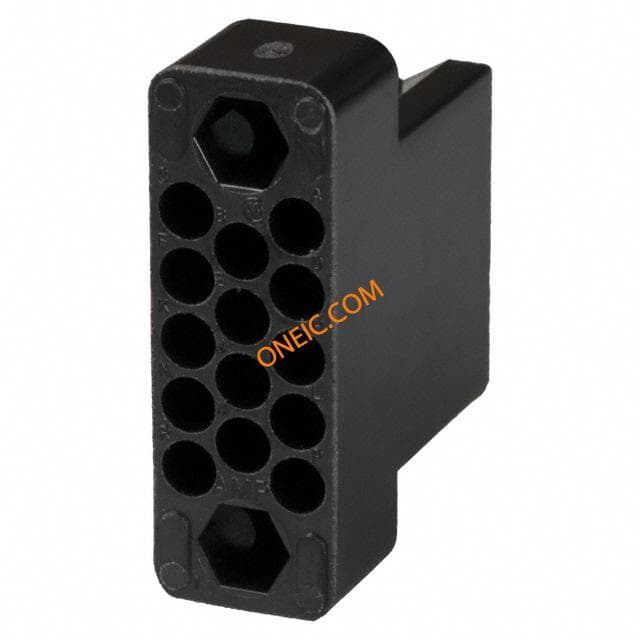

201355-1
te connectivity / amp
Conn Housing PL 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 14POS BLACK Housing plug 14 way M series Pin & Socket Connectors MALE BLOCK 14 PL. Conn Housing PL 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 14WAY InterconnectPlugHousing;Phenolic;Black;Standard;14;AmpBrand,MSeries TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 公 压接连接器外壳 MALE BLOCK 14 PL.
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
200837-2
te connectivity / amp
Conn Housing PL 34 POS 3.81mm Crimp ST Loose Piece Pin & Socket Connectors 34 POS CONN M Series Connectors CONN HOUSING PLUG 34 POS BLACK M Series Connectors Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK 34 PL.
213803-2
te connectivity / amp
Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece M Series Connectors 34P PLUG KIT,M-SERIES,CC,JS Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,

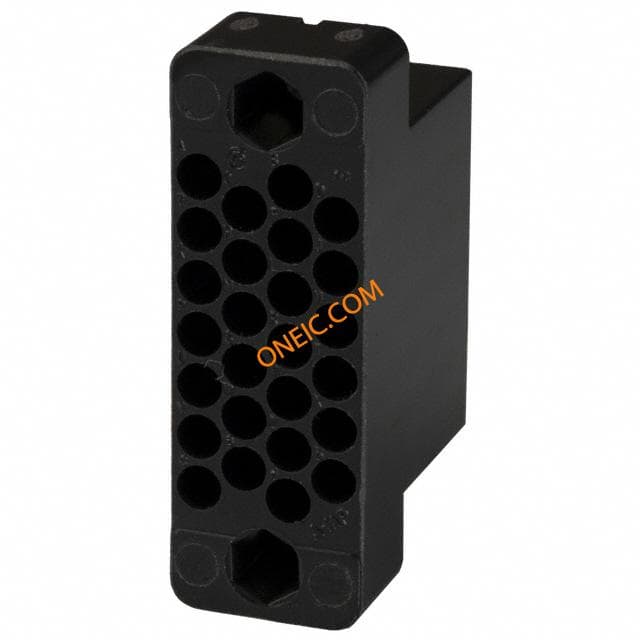

200512-2
te connectivity / amp
Conn Housing RCP 26 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 26POS BLACK Housing 26 way Receptacle M Series Pin & Socket Connectors FEMALE BLOCK 26 PL. Conn Housing RCP 26 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 26Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CONNECTOR,SOFTSHELL,M-SERIES,RECEPTACLE,26POSITION,MINIATURE,PHENOLIC,B TE Connectivity M 系列 29.209mm 节距 26 路 直 母 电缆安装 压接连接器外壳 FEMALE BLOCK 26 PL.
208715-1
te connectivity / amp
Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CMC 7POS STD SER 1 Standard Circular Connector RECP SQUARE STD 14-7 Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 7WAY Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.14;Series1;PanelMount RECEPT ASSY,SZ 14-7,CMC
211768-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS REV SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:9 Cable plug, series CPC 9-pin CPC 1 9P Male 17, 211768-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-9
206036-8
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD Standard Circular Connector RECEPT SZ 17-16 CPC Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 1616 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ17-16CPC,W/INSERTS RECEPT,SZ 17-16 CPC,W/INSERTS
206838-1
te connectivity / amp
Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Standard Circular Connector RECEPTACLE 24 PIN shell size 23 CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONN, RECEPTACLE, 24 WAY, PANEL ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:24 Receptacle CPC 1 24P Female 23, 206838-1, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 23-24 RECEPT

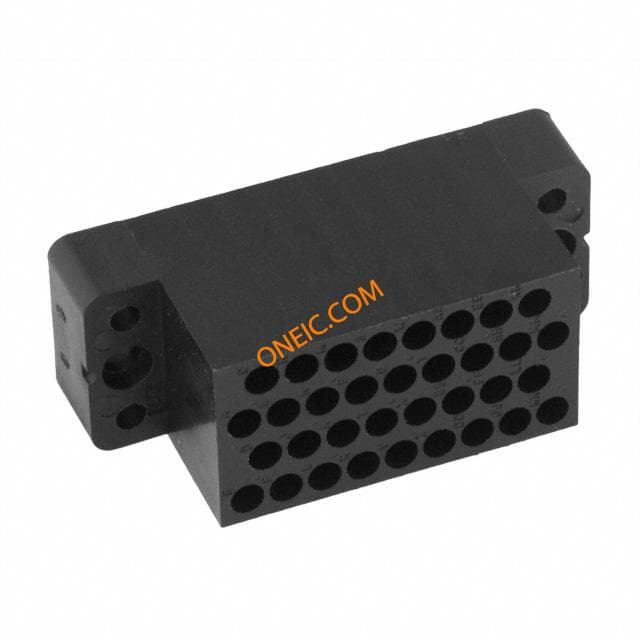

213801-1
