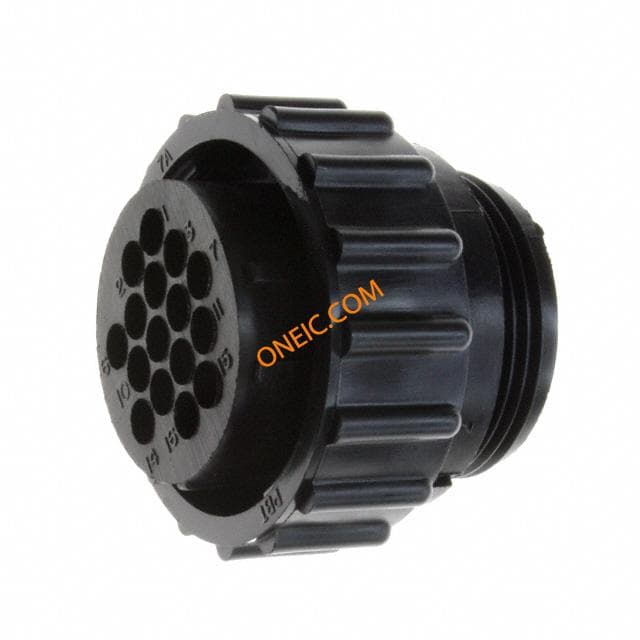

206036-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD Standard Circular Connector RECEPT SZ 17-16 CPC Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 1616 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ17-16CPC,W/INSERTS RECEPT,SZ 17-16 CPC,W/INSERTS |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 16 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 深度 | 36.45 mm | 高度 | 36.45 mm |
| 密封型 | No | 外形尺寸(长x宽) | 17 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | A | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 16Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 引脚数 | 0 |
| 外壳材料（壳体） | 母端, 母端 | 连接器样式 | Receptacle |
| 插入件材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 34.29 mm | 包装数量 | 10 |
| 面板安装类型 | Square Flange | 端接样式 | Wire |
| 第一触头极性 | Pin | 配接方向 | Keyed |
| 触点数 | 16 | 端接表面处理 | 带有 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Nylon | 螺纹/螺钉/孔尺寸 | 4-40 |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | No |
| 产品子类型 | Connector | 射频系列/标准 | 206036 |
| 其他规格 | Without | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作范围 | 不密封 | ||
