206037-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 16 POS ST Panel Mount 16 Terminal 1 Port Standard Circular Connector CPC PLUG SZ 17-16 PLUG SZ 17-16 CPC Connectors CONN PLUG CPC 16POS FREE HANGING Conn CPC SKT 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SZ 17-16 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 16 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 17 |
| 直径 | 34.27 mm | 包装方式 | Bulk |
| 屏蔽 | 否 | 壳体颜色 | 黑色 |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | A | 外壳样式 | Plug |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 16Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 0 |
| 外壳材料（壳体） | 插头 | 连接器样式 | Plug |
| 壳体材料 | Thermoplastic | 总长度 | 27.43 mm |
| 包装数量 | 100 | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 16 | 端接表面处理 | 带有 |
| 位数 | 16 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Nylon, Glass Filled |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | CPC |
| 钥匙类型 | A | 预加载 | No |
| 产品子类型 | Connectors | 射频系列/标准 | 206037 |
| 其他规格 | Without | 适用产品/相关产品 | Socket Contacts |
环境参数
| 工作范围 | 不密封 | ||
文档与媒体
相关型号
206036-5
te connectivity / amp
Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD 16 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector RECEPTACLE 16 PIN free hanging s.s. 17 Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR RCPT SIZE 17 16POS FREE HANGING ConnectorHousing;CPCRecept.Assy;16Pos;Sz17;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=16, accepts male contacts / Free hanging/cable mount / sealed, 206036-5, TE Connectivity TE Connectivity 16路 电缆安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 17-16
1-66109-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 26-24 series 1 Multimate CONN SOCKET 24-26AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-24AWG, CRIMP III+ SKT,26-24,TIN-LEAD,SMPACK
66100-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONTACT SKT 16-18AWG STRIP GOLD Pin & Socket Connectors III+ SKT 18-16 30AU/FL STRIP III+ SKT,18-16,30AU/FL,STRIP III+ SKT,18-16,30AU/FL,STRIP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
206552-1
te connectivity / amp

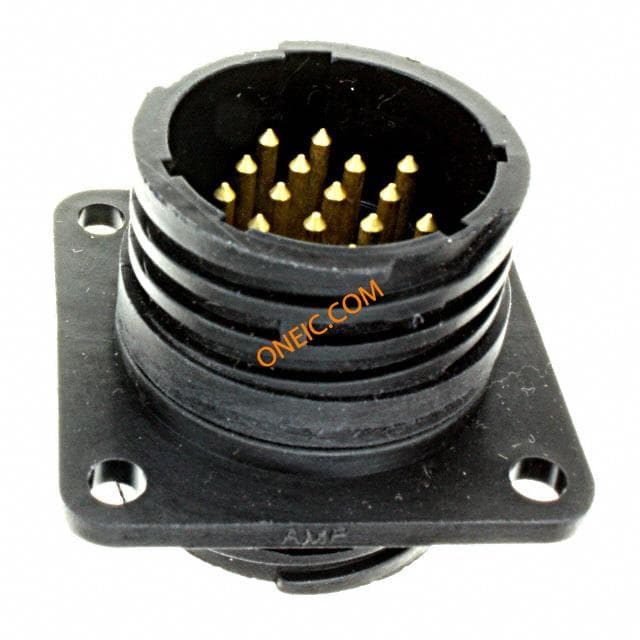

Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 ConnectorHousing,CPCRecept.Assy,16Pos Standard Circular Connector CPC RECPT SIZE 17-16 Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;16Pos;Sz17;Series1;PanelMnt;StdSex TE Connectivity Series 1 系列 16路 法兰安装 直向 连接器 插座 , 公触点, 螺纹接合 CPC RECPT ASSEMBLY SIZE 17-16
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
206036-4
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector RECEPTACLE 16 PIN shell size 17 Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;16Pos.;Sz.17;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=16, accepts male contacts / with flange / sealed, 206036-4, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插头 CPC RECPT SEALED SIZE 17-16
206036-8
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD Standard Circular Connector RECEPT SZ 17-16 CPC Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 1616 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ17-16CPC,W/INSERTS RECEPT,SZ 17-16 CPC,W/INSERTS
1-66360-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 18-14 Series 1 Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesBright Tin-Lead Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Multimate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-14,TIN-LEAD,SMPACK
206036-1
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector RECEPTACLE 16 PIN shell size 17 Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, RCPT, 17-16, PANEL ConnectorHousing;CPCReceptacle;16Pos.;Sz.17;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:16 Receptacle CPC1 Poles=16, accepts male contacts / with flange, 206036-1, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插头 RECEPT,SZ 17-16 CPC
207303-1
te connectivity / amp
Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 CPC Connectors Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSM SIZE 17-16
206036-3
te connectivity / amp
Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD 16 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector RECEPTACLE 16 PIN free hanging s.s. 17 Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, RCPT, 17-16, FREE ConnectorHousing;CPCReceptacle;16Pos.;Sz.17;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; male; w/o terminals Connector: circular; Series: CPC Series 1; plug; male; PIN:16 Receptacle CPC1 Poles=16, accepts male contacts / Free hanging/cable mount, 206036-3, TE Connectivity TE Connectivity 16路 电缆安装 直向 连接器 插头 RECEPT,SZ 17-16,CPC
66331-8
TE Connectivity / AMP
Standard Circular Contacts SKT 24-20 30AWG REEL Multimate CONN SKT .062 20-24AWG AU CRIMP CONN SOCKET 20-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,24-20,30AU/FL,STRIP 20-24 AWG Gold over Nickel Crimp Socket Contact for CPC Series 1 Connectors TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金触点 III+ SKT,24-20,30AU/FL,STRIP
207303-3
te connectivity / amp
Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port Standard Circular Connector RECEPTACLE 17-16 144 CPC Connectors CONN RECEPT CPC 16POS STD SER 1 Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 17-16
1-207303-3
te connectivity / amp
Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 16 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector REC PIN 17-16 PCB Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR PLUG SIZE 17, 16POS, PANEL Connector;CPC;ReceptAssyw/Pins;16Pos;Sz17;Series1;PanelMnt;StdSex Receptacle CPC1 Poles=16, accepts male contacts / with flange, 1-207303-3, TE Connectivity TE Connectivity 16路 通孔 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 17-16
1-207303-4
te connectivity / amp
Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port Standard Circular Connector CPC RECPT ASSM SIZE 17-16 CPC Connectors CONN RECEPT CPC 16POS STD SER 1 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Preloaded16 Positions16 Signal Positions0 Power PositionsHousing Gender = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSM SIZE 17-16
1-207303-5
te connectivity / amp
Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 Receptacle 16 way pin pcb CPC Standard Circular Connector CPC RECPT ASSM SIZE 17-16 Conn CPC PIN 16 POS Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Receptacle16waypinpcbCPC CPC Series 1 Flange Receptacle 16 Position Size 17 Circular Plastic Connector TE Connectivity Series 1 系列 16路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSM SIZE 17-16
1-796404-1
te connectivity / amp
Conn CPC PIN 16 POS Solder RA Thru-Hole 16 Terminal 1 Port Standard Circular Connector REC PIN 17-16 PCB CPC Connectors CONN RCPT CPC 16POS R/A GOLD Conn CPC PIN 16 POS Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,17-16,R/A LF
1-66358-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors III+ SKT 18-14 30AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contactfemalecrimp18-14AWGMultimate TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,30AU/FL,STRIP
796404-1
te connectivity / amp

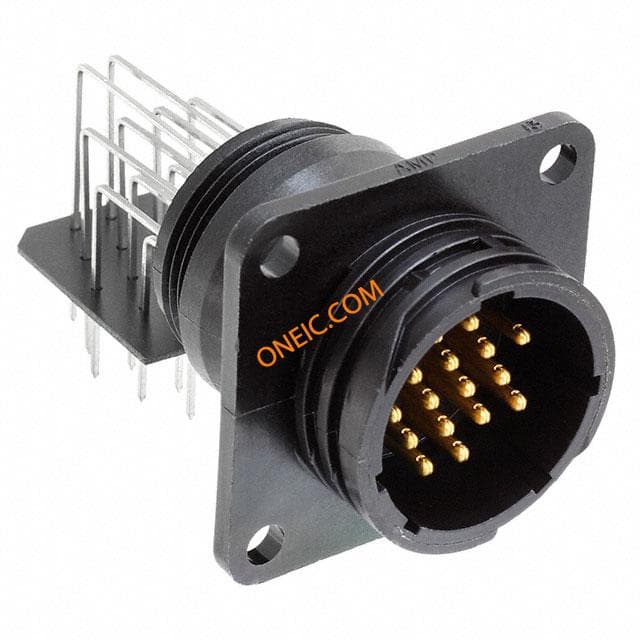

Conn CPC PIN 16 POS Solder RA Thru-Hole 16 Terminal 1 Port CPC Connectors CONN RCPT CPC 16POS R/A GOLD CPC POSTED RCPT,17-16,R/A
