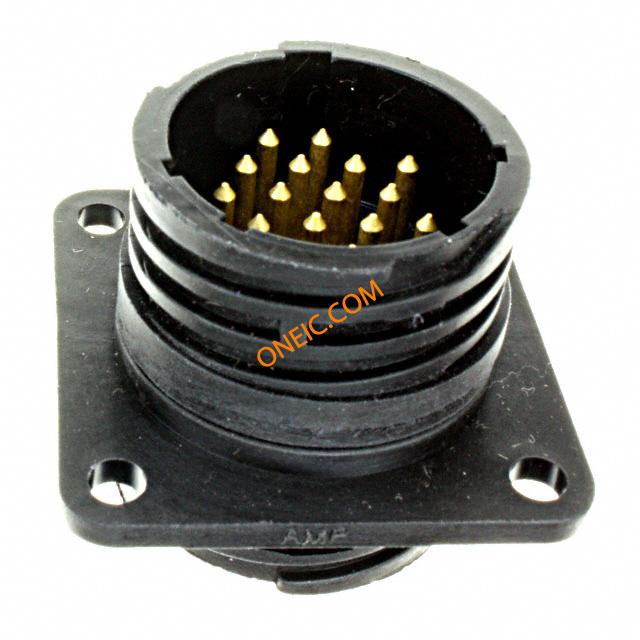

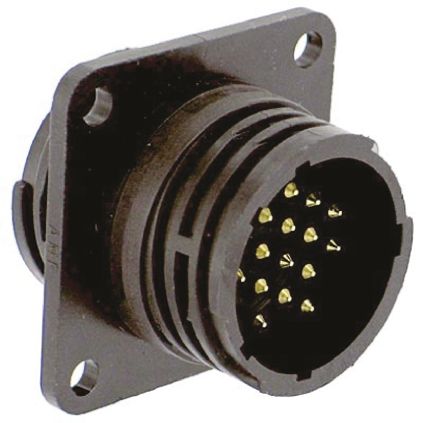

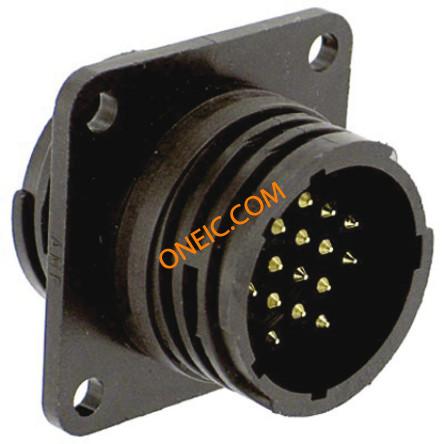

206552-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 ConnectorHousing,CPCRecept.Assy,16Pos Standard Circular Connector CPC RECPT SIZE 17-16 Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;16Pos;Sz17;Series1;PanelMnt;StdSex TE Connectivity Series 1 系列 16路 法兰安装 直向 连接器 插座 , 公触点, 螺纹接合 CPC RECPT ASSEMBLY SIZE 17-16 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 24 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 输入端 | 1.209 | 防溅等级 | 无 |
| 通道数量 | 16 | 连接器类型 - 电压输入 | 是 |
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 外形尺寸(长x宽) | 17 | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | 直 |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 16Signal |
| 触头类型 | Pin | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 插针或插孔 | Pin |
| 行程角度 | Straight | 连接器类型 | 母座 |
| 接触镀层 | Gold | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 连接器用途 | Threaded |
| 面板厚度 | 0.125" | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 30.71 mm |
| 包装数量 | 24 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.81 [.150] |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 17-16 | ||
产品信息
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 1 | 产品特性 | ReverseGender |
| 预加载 | Yes | 排列方式 | 17-16 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 206552 | 其他规格 | Without |
| 应用细节 | Commercial | 转换端（适配器端） | Circular, Male Pins, 16 Pos, 17 Shell Size |
| 转换自（适配器端） | Circular, Male Pins, 16 Pos, 17 Shell Size | ||
环境参数
| 密封等级 | IP65 | 工作范围 | 不密封 |
| 防护等级 | IP65 | 工作温度 | -55C to 105C |
文档与媒体
相关型号

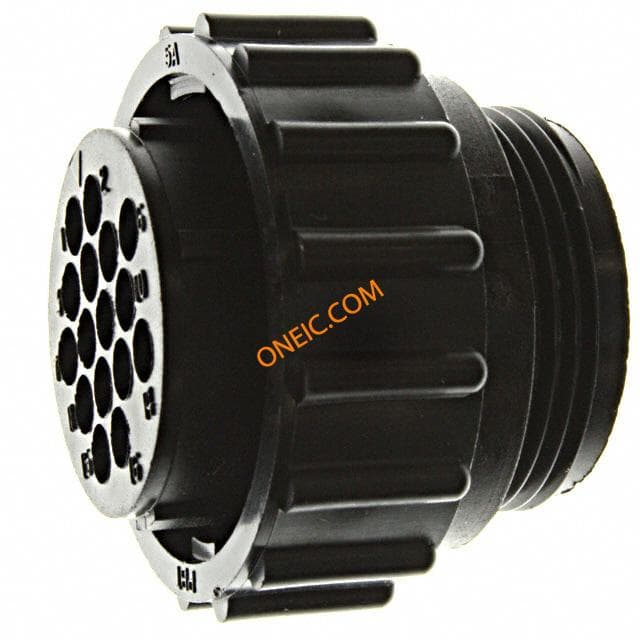

206554-1
