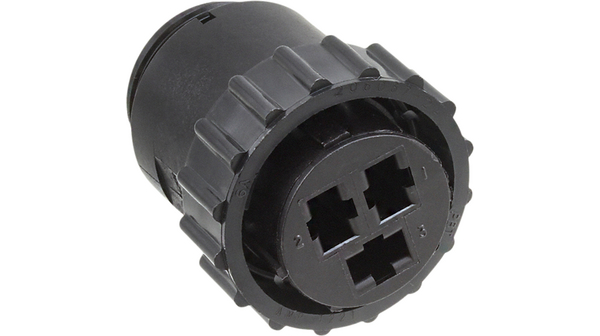

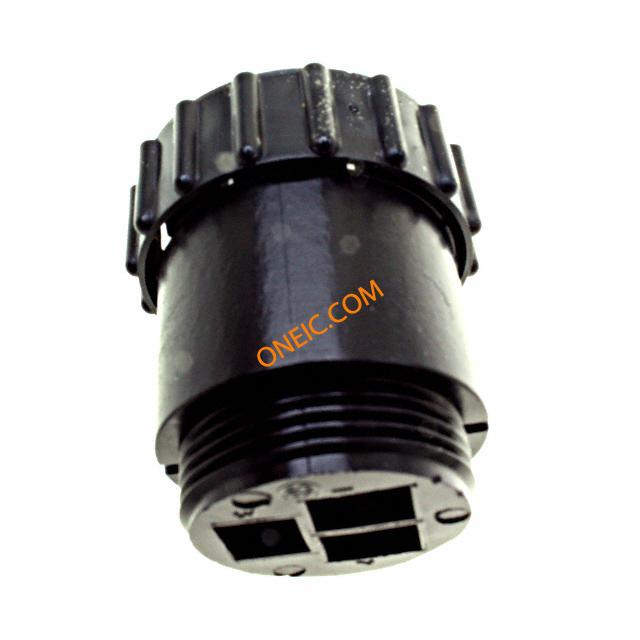

206037-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS STD SER 3 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector PLUG STANDARD 17-3 Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series3;FreeHang;StdSex Connector: circular; Series: CPC Series 3; plug; female; PIN:3 Plug CPC3 Poles=3, accepts female contacts / Free hanging/cable mount, 206037-2, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插座 CPC PLUG ASSEMBLY SIZE 17-3 |
| 分类 |
商业参数
| 交货时间 | 31 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 0 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.022 | 直径 | 34.26 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 3Signal |
| 触点尺寸 | 3 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 17 | 连接器样式 | Plug |
| 插入角度 | :17-3 | 锁定特性 | screwed, internal thread |
| 本体材料 | :Glass Filled Thermoplastic | 材料表面处理 | :- |
| 壳体材料 | Thermoplastic | 总长度 | 41.78 mm |
| 包装数量 | 1 | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 3 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 3 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Nylon, Glass Filled |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Standard | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 3 | 钥匙类型 | A |
| 极性 | A | 预加载 | No |

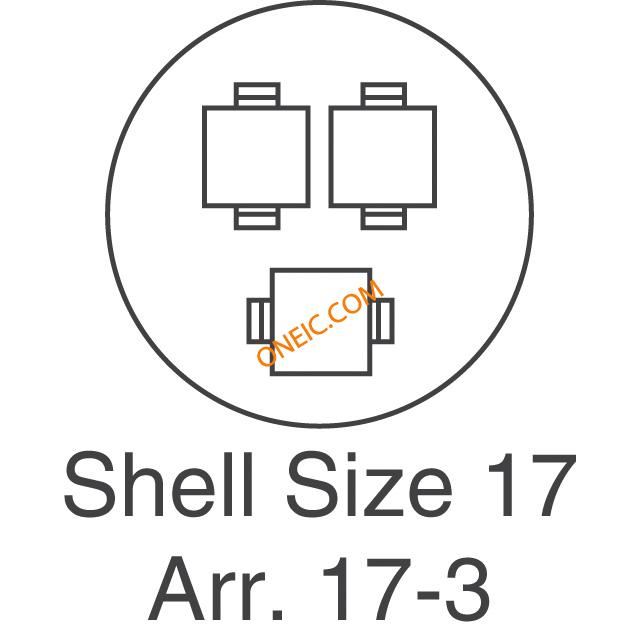

| 排列方式 | 17-3 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series3 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 3 | 单元数量 | 1 |
| 射频系列/标准 | 206037 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
