点击放大查看

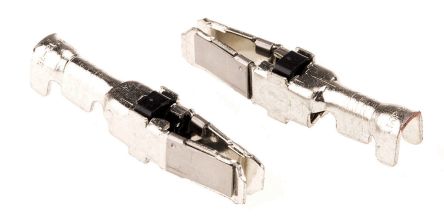

2-66740-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Standard Circular Contacts SKT CONTACT 16,14-12 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 16AWG Contact;TypeXII;Socket;ForSeries3CPC;Power;TinPlated Contact; female; 1.25÷3mm2; Type XII; crimped; 15A Type XII Ultra-Fast 14-12 AWG Fully Insulated Multimate Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (LP) |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 最大额定电流 | 15A | 连接器类型 - 电压输入 | for CPC connectors Series 3/Series 4 |
机械参数
| 深度 | 5.58 mm | 高度 | 6.09 |
| 重量 | 0.02 | 镀层 | Tin |
| 材料（通用） | Copper | 包装方式 | Loose Piece |
| 出线方向 | Not Required | 导线线规 | 12-16 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触点形式 | 1Power | 触点尺寸 | 16 |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | Copper |
| 总长度 | 32.18 mm | 包装数量 | 100 |
| 连接器 - 电缆 | contact | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 50µin (1.27µm) | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25...3mm2 | ||
产品信息
| SPG | 100 | 类型 | Power, Stamped |
| 连接器性别 | SKT | 系列 | Type XII |
| 适配器系列 | Type XII | 单元数量 | 1 |
| 射频系列/标准 | 66740 | 适用产品/相关产品 | :Type XII Series Connectors |
