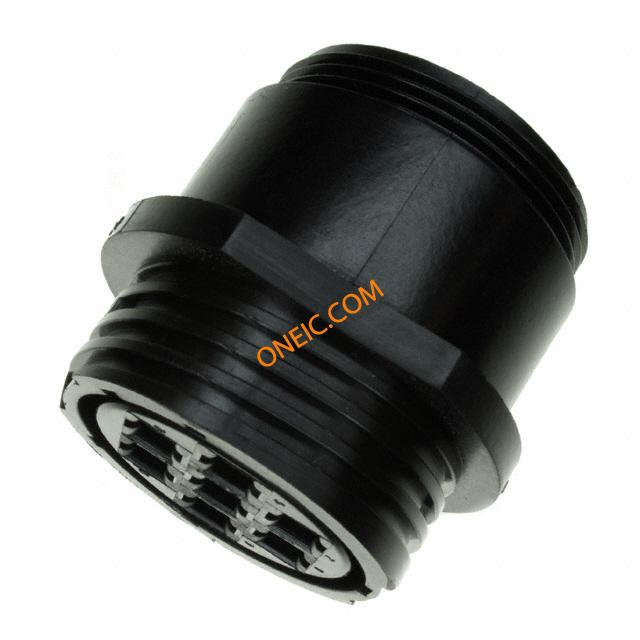

206227-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 26 Standard Circular Connector RECPT REV F.H. 23-7 Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;7Pos.;Sz23;Series3;FreeHang;RevSex CPC RECPT ASSEMBLY SIZE 23-7 |
| 分类 |
商业参数
| 商标名 | CPC Series 3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 0 |
| 连接器类型 - 电压输入 | 反向 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 23 | 包装方式 | Bulk |
| 屏蔽 | 否 | 壳体颜色 | 黑色 |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 7 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 7 |
| 外壳材料（壳体） | 母端, 母端 | 连接器样式 | Receptacle |
| 壳体材料 | Thermoplastic | 包装数量 | 1 |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Socket | 配接方向 | Keyed |
| 触点数 | 7 | 端接表面处理 | 带有 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 7 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Nylon | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 3 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 23-7 | 制造商全称 | Series3 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 工作范围 | 不密封 | ||
