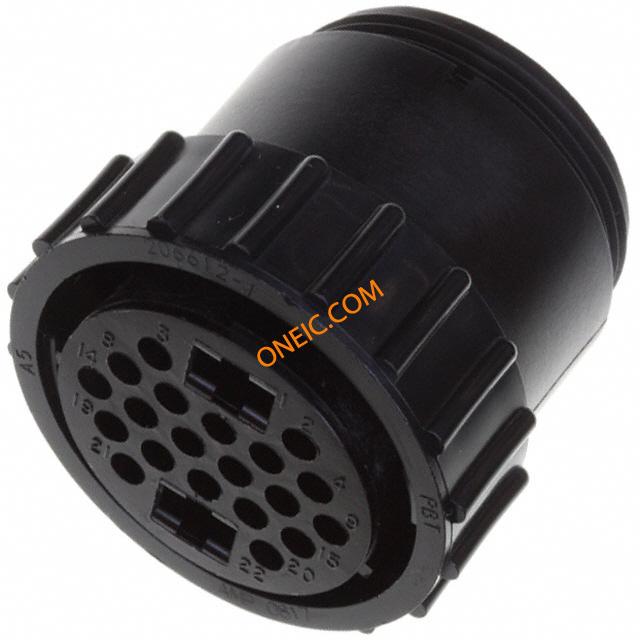

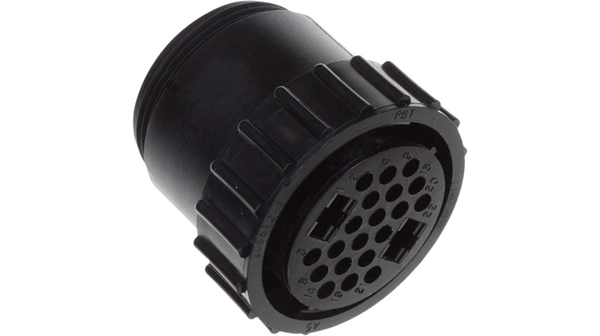

206612-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 22 POS ST Cable Mount 22 Terminal 1 Port CPC Connectors CONN PLUG CPC 22POS STD SER 4 22 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 23-22M Conn CPC SKT 22 POS ST Cable Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR ConnectorHousing;CPCPlugAssy;22Pos.;Sz.23;Series4;FreeHang;StdSex Connector: circular; Series: CPC Series 4; plug; female; for cable Plug CPC4 Poles=22, accepts female contacts / Free hanging/cable mount, 206612-1, TE Connectivity TE Connectivity 22路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-22 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 20 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 密封型 | No | 重量 | 0.039 |
| 直径 | 45.42 mm | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Plug |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 2Power/20Signal |
| 触点尺寸 | 16 (20), 2 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | size 23 |
| 连接器样式 | Plug | 插入角度 | :23-22 |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Thermoplastic |
| 磁芯材质 | Polyester | 壳体材料 | Thermoplastic |
| 总长度 | 41.78 mm | 包装数量 | 6 |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 配接方向 | Keyed |
| 触点数 | 22 | 位数 | 22 |
| 外壳尺寸-插件 | All Plastic | 导体绝缘 | 5.59 [0.220] |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Cable | 第二连接器安装特性 | Standard |

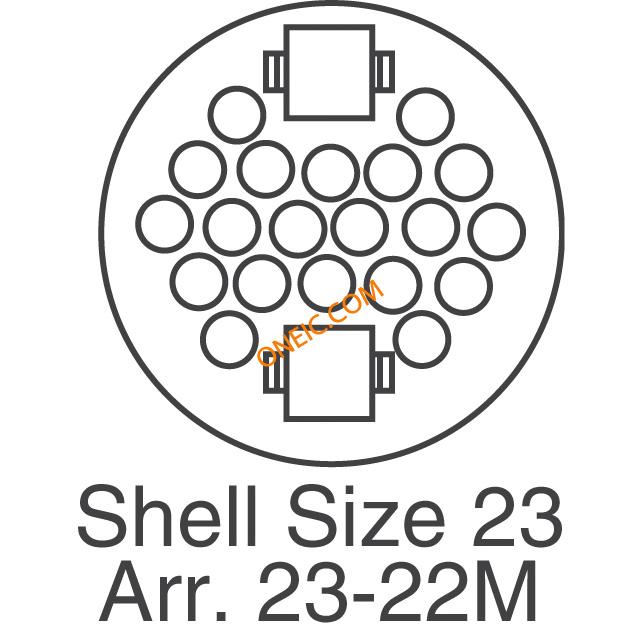

| 外壳尺寸-插入件（转换至） | 23-22M | ||
产品信息
| SPG | 6 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 4 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 4 | 单元数量 | 1 |
| 电路数 | 2 (Power)/20 (MultiMate) | 射频系列/标准 | 206612 |
| 其他规格 | Without | 适用产品/相关产品 | Socket Contacts |
