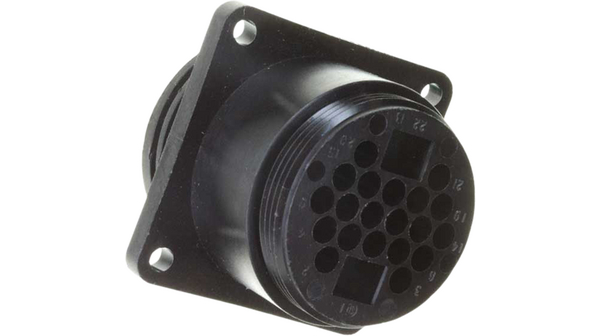

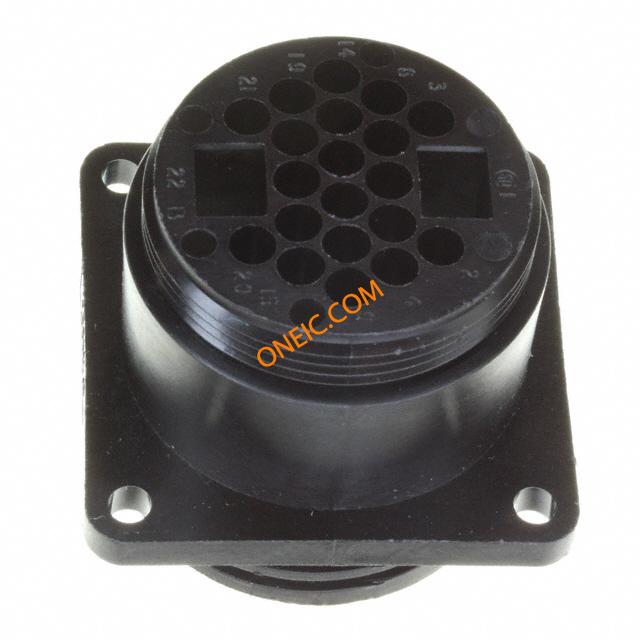

206613-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CPC 22POS STD SER 4 22 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-22M Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCRecept.Assy;22Pos;Sz23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=22, accepts male contacts / with flange, 206613-1, TE Connectivity TE Connectivity 22路 面板安装 直向 连接器 插座 , 公触点 RECEPT ASSY,SZ 23-22,CPC |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 20 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 密封型 | No | 重量 | 0.041 |
| 包装方式 | Bulk | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 (20), 2 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 封装形式 | size 23 | 连接器样式 | Receptacle |
| 插入角度 | :23-22 | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 包装数量 | 9 | 面板安装类型 | Square Flange |
| 连接器 - 电缆 | socket | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 22 | 位数 | 22 |
| 外壳尺寸-插件 | All Plastic | 导体绝缘 | 5.59 [0.220] |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
产品信息
| SPG | 9 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 4 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 4 | 单元数量 | 1 |
| 电路数 | 2 (Power)/20 (MultiMate) | 其他规格 | Without |
| 适用产品/相关产品 | Pin Contacts | ||
