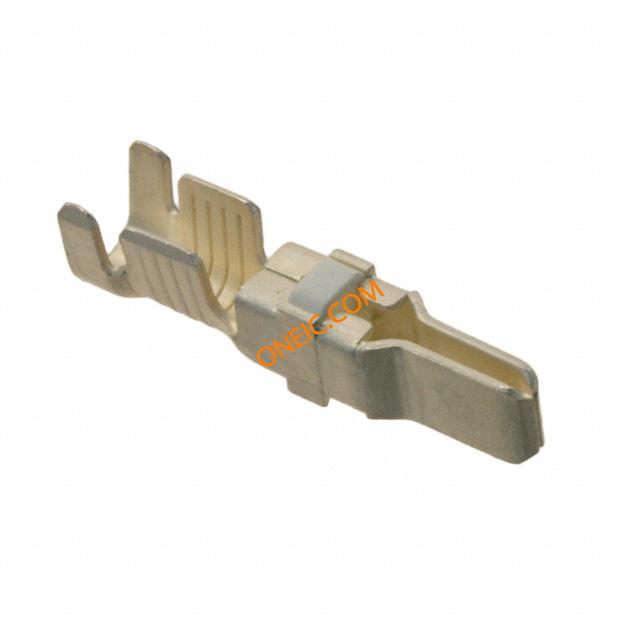

66259-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.) |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 35 A | ||
机械参数
| 深度 | 7.29 mm | 高度 | 7.62 mm |
| 长度 | 37.54mm | 重量 | 0.002 |
| 镀层 | Silver | 材料（通用） | Copper |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 10 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 触头类型 | Power | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Silver |
| 安装样式 | Wire | 触头材料 | Copper |
| 总长度 | 31.62 mm | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 镀层厚度（通用） | 100µin (2.54µm) |
| 线规或范围 - AWG | :10AWG | ||
产品信息
| 类型 | Power, Stamped | 连接器性别 | PIN |
| 系列 | Type XII | 已删除 | Compliant |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connectors |
| 射频系列/标准 | 66259 | 适用产品/相关产品 | :G Series, M Series, CPC Connectors |
环境参数
| 工作温度 | +125°C | ||
