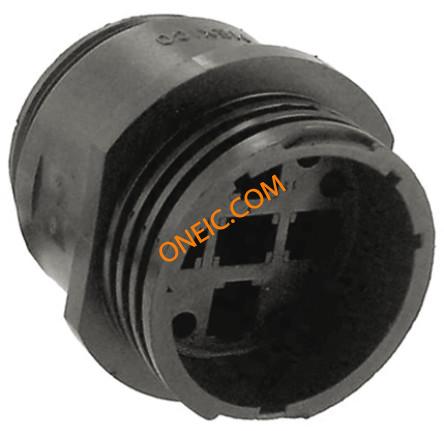

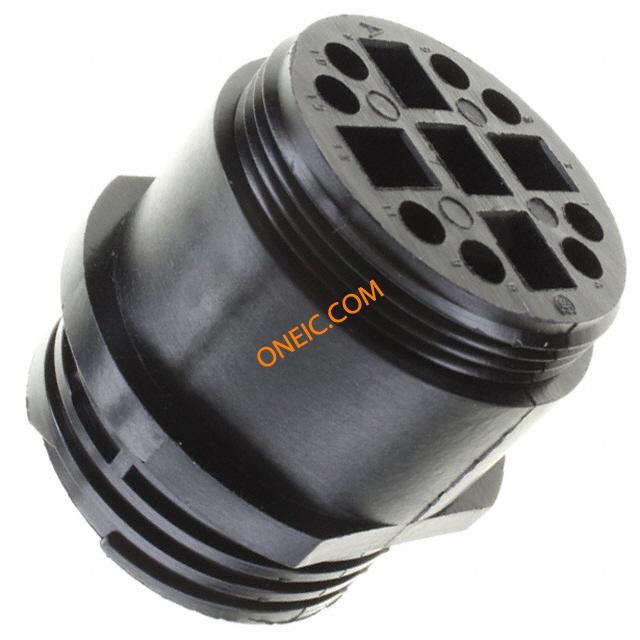

211825-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 13 POS ST Cable Mount 13 Terminal 1 Port CPC Connectors CONN RECEPT CPC 13POS STD SER 4 ConnectorHousing,CPCRecept.Assy,13Pos Standard Circular Connector RECPT F.H. 23-13M Conn CPC PIN 13 POS ST Cable Mount 13 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 13ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 23 13POS FREE HANGING ConnectorHousing;CPCRecept.Assy;13Pos;Sz23;Series4;FreeHang;StdSex CPC RECPT ASSEMBLY SIZE 23-13 |
| 分类 |
商业参数
| 商标名 | CPC Series 4 | 其他名称 | A16032 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 8 | ||
机械参数
| 密封型 | No | 重量 | 0.032 |
| 包装方式 | Bulk | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 (8), 5 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Receptacle | 连接器用途 | Threaded |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 13 |
| 位数 | 13 | 外壳尺寸-插件 | All Plastic |
| 导体绝缘 | 5.59 [0.220] | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 4 |
| 预加载 | No | 产品子类型 | Connector |
| 电路数 | 5 (Power)/8 (MultiMate) | 其他规格 | Without |
| 适用产品/相关产品 | Pin Contacts | ||
