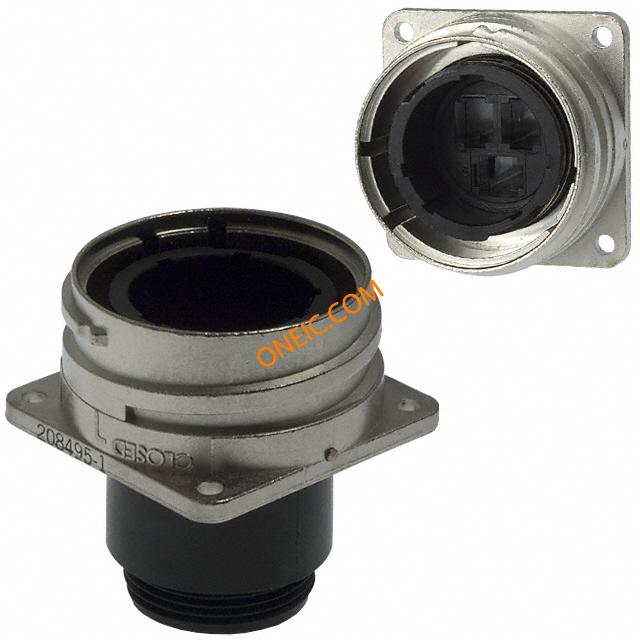

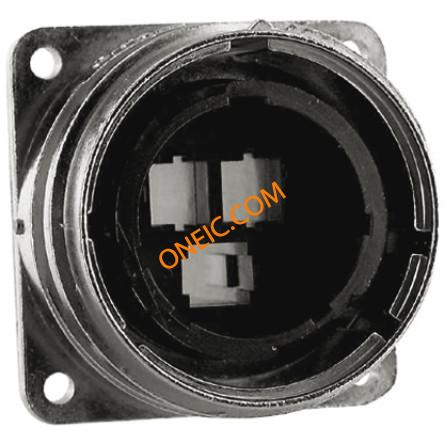

208495-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 3 POS Crimp ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS STD SER 3 Connector,MetalShellCPC,Recept.Assy,3Pos METAL-SHELL CPC;STANDARD SEX SQUARE FLANGE RECEPT.(FOR PIN CONTACTS);3 CONTACTS Standard Circular Connector RECP SQUARE STD 22-3 Conn Metal Shell CPC PIN 3 POS Crimp ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;3Pos.;Sz.22;Series3;PanelMount CMC RECEPTACLE ASSY,SIZE 22 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 0 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 22 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 22 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 3 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 引脚数 | 3 | 外壳材料（壳体） | Zinc alloy |
| 连接器样式 | Receptacle | 连接器用途 | Threaded |
| 壳体材料 | Thermoplastic | 包装数量 | 10 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 3 |
| 端接表面处理 | 带有 | 绝缘直径 | 5.59 [0.220] |
| 位数 | 3 | 外壳尺寸-插件 | Metal |
| 安装孔直径 | 0.12" | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 3 |
| 预加载 | No | 排列方式 | 22-3 |
| 制造商全称 | Series3 | 产品子类型 | Connector |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 工作范围 | 不密封 | ||
