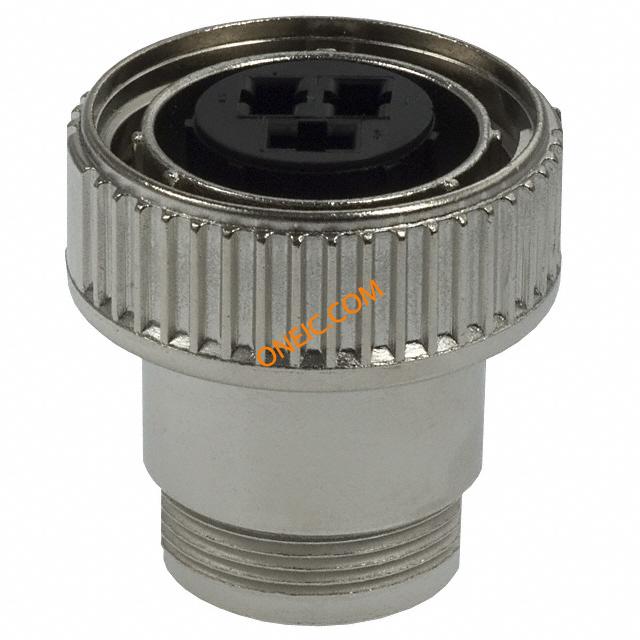

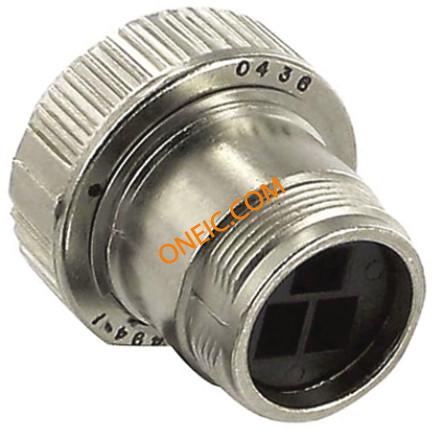

208494-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CMC HSING 22-3 STD Connector,MetalShellCPC,PlugAssy,3Pos. METAL-SHELL CPC;SERIES 3;STANDARD SEX PLUG W/O TETRASEAL; 3 CONTACTS Standard Circular Connector PLUG STANDARD 22-3 Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Product Highlights:HousingHousing Type = Plug3 Positions0 Signal Positions3 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;3Pos.;Sz.22;Series3;FreeHanging CMC PLUG ASSEMBLY,SZ 22 |
| 分类 |
商业参数
| 商标名 | CPC Series 3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 0 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 22 | 直径 | 44.45 mm |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 22 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 3Signal |
| 触点尺寸 | 3 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Free Hanging |
| 引脚数 | 3 | 外壳材料（壳体） | Zinc alloy |
| 连接器样式 | Plug | 连接器用途 | Threaded |
| 壳体材料 | Thermoplastic | 总长度 | 45.84 mm |
| 包装数量 | 10 | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Female |
| 配接方向 | Keyed | 触点数 | 3 |
| 端接表面处理 | 带有 | 绝缘直径 | 5.59 [0.220] |
| 位数 | 3 | 外壳尺寸-插件 | Metal |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 17-3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 3 |
| 钥匙类型 | A | 预加载 | No |

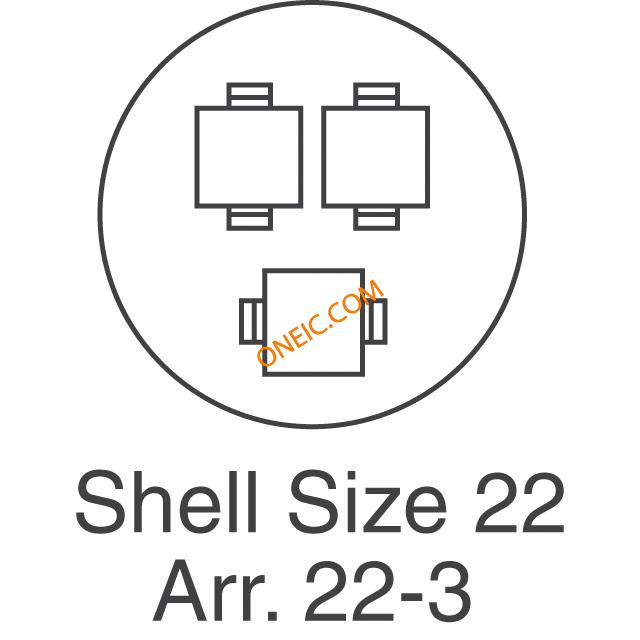

| 排列方式 | 22-3 | 制造商全称 | Series3 |
| 产品子类型 | Connector | 射频系列/标准 | 208494 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -55C to 125C |
相关型号

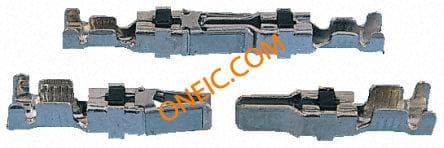

66741-8
