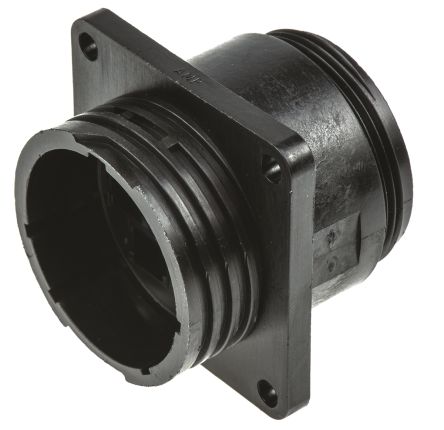

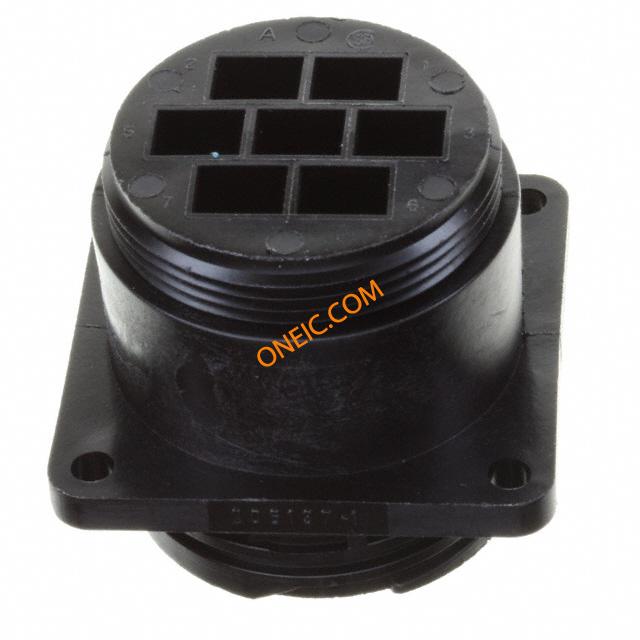

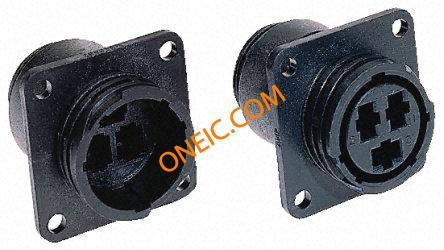

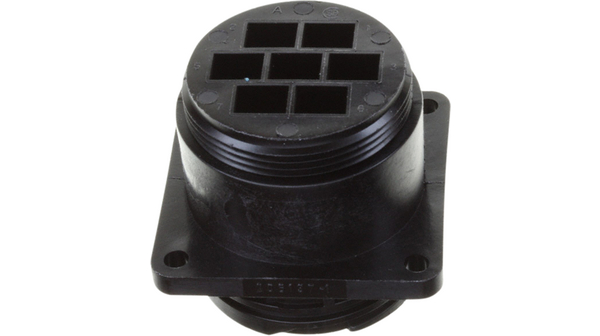

206137-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector STD SQUARE RECP 23-7 Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 7WAY ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=7, accepts male contacts / with flange, 206137-1, TE Connectivity TE Connectivity 7路 面板安装 直向 连接器 插座 , 公触点 23-7 RECEPT STD SEX |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 0 | 最大额定电流 | :25A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 44.45 mm |
| 高度 | 44.45 mm | 密封型 | No |
| 重量 | 0.036 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 7Signal | 触点尺寸 | 7 Power |
| 触头类型 | 7Power | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :23-7 | 本体材料 | :Glass Reinforced Nylon (Polyamide) |
| 材料表面处理 | :- | 面板厚度 | 0.125" |
| 触头材料 | Copper | 壳体材料 | Thermoplastic |
| 总长度 | 40.64 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | M | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 7 |
| 面板开孔形状 | :40.9mm | 绝缘直径 | 5.59 [0.220] |
| 位数 | 7 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 0.15" | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-7 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 3 |
| 预加载 | No | 排列方式 | 23-7 |
| 制造商全称 | Series3 | 产品子类型 | Connector |
| 射频系列/标准 | 206137 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作温度 | :105°C | ||
