点击放大查看

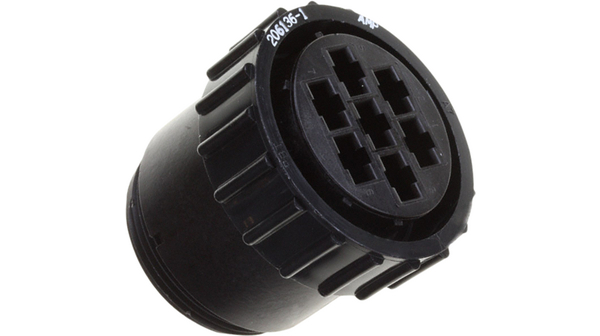

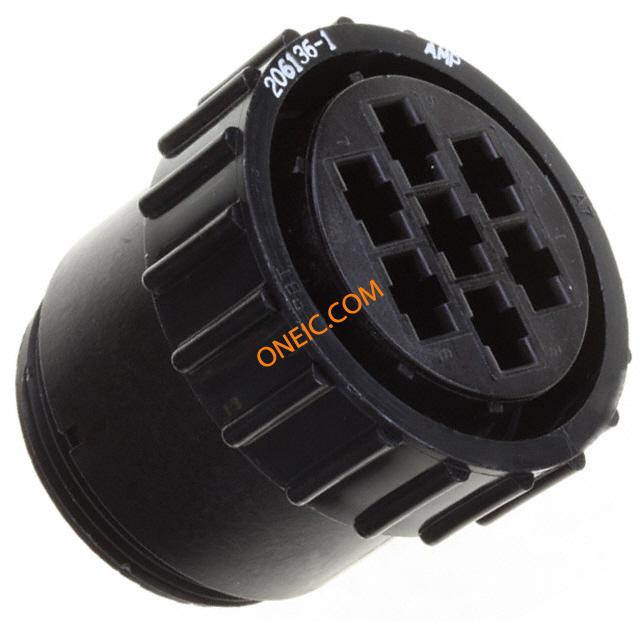

206136-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CPC HSING 23-7 STD 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG STANDARD 23-7 Conn CPC F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, SOCKET CONTACT, 7WAY ConnectorHousing;CPCPlugAssy;7Pos.;Sz.23;Series3;FreeHang;StdSex Plug CPC3 Poles=7, accepts female contacts / Free hanging/cable mount, 206136-1, TE Connectivity TE Connectivity 7路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-7 |
| 分类 |
商业参数
| 交货时间 | 24 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 0 | 最大额定电流 | :25A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.0028 | 直径 | 45.28 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 7Signal |
| 触点尺寸 | 7 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Plug | 插入角度 | :23-7 |
| 本体材料 | :Glass Reinforced Nylon (Polyamide) | 磁芯材质 | Polyester |
| 材料表面处理 | :- | 触头材料 | Copper |
| 壳体材料 | Nylon | 总长度 | 41.78 mm |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 直径 - 环内径 | 45.29 [1.783] | 配接方向 | Keyed |
| 触点数 | 7 | 绝缘直径 | 5.59 [0.220] |
| 位数 | 7 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Nylon, Glass Filled | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 23-7 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 3 |
| 预加载 | No | 排列方式 | 23-7 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series3 |
| 产品子类型 | Connector | 射频系列/标准 | 206136 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作温度 | :105°C | ||
相关型号
66740-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Pin & Socket Connectors SKT CONTACT 16,14-12 tin Type XII 66740-8 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;TypeXII;Power;Socket;16-12AWG;Tin-LeadPlated TYPE XII FEMALE CONT (L.P.)
66740-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG SILVR CRIMP Type XII Series Size 16 Female Circular Connector Contact, Crimp,Wire size 16 to 12AWG Pin & Socket Connectors SKT CONTACT 16,14-12 silver Type XII Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, SKT, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;FEMALE;FINISH=.0002000"SILVERW/LUBRICANTAD MultiMate Type XII Series 14-12 AWG Discrete Wire Crimp Female Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (L.P.)
206137-1
te connectivity / amp
Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector STD SQUARE RECP 23-7 Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 7WAY ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=7, accepts male contacts / with flange, 206137-1, TE Connectivity TE Connectivity 7路 面板安装 直向 连接器 插座 , 公触点 23-7 RECEPT STD SEX
66741-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 10AWG TIN CRIMP Pin & Socket Connectors TYPE XII F/M CONT (STRIP) Multimate Product Highlights:SocketTin-Lead Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPE XII FEMALE CONT (STRIP)
66740-9
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 12-16 AWG SLVR CRIMP Pin & Socket Connectors 14-12AWG SILVER SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketSilver Contact Mating Area Plating MaterialWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 14-12AWG, CRIMP TYPE XII FEMALE CONT (STRIP)
206137-2
te connectivity / amp
Conn CPC M 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 Standard Circular Connector RECPT STD F.H. 23-7 Conn CPC M 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;FreeHang;StdSex 23-7 FREE HANGING RECEPT

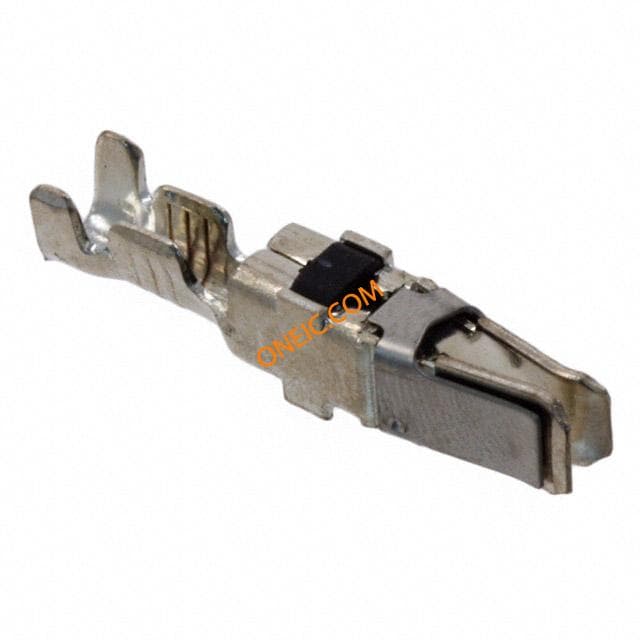

2-66740-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-16AWG TIN CRIMP Standard Circular Contacts SKT CONTACT 16,14-12 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 16AWG Contact;TypeXII;Socket;ForSeries3CPC;Power;TinPlated Contact; female; 1.25÷3mm2; Type XII; crimped; 15A Type XII Ultra-Fast 14-12 AWG Fully Insulated Multimate Socket TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 16 → 12 AWG 线规格 TYPE XII FEMALE CONT (LP)

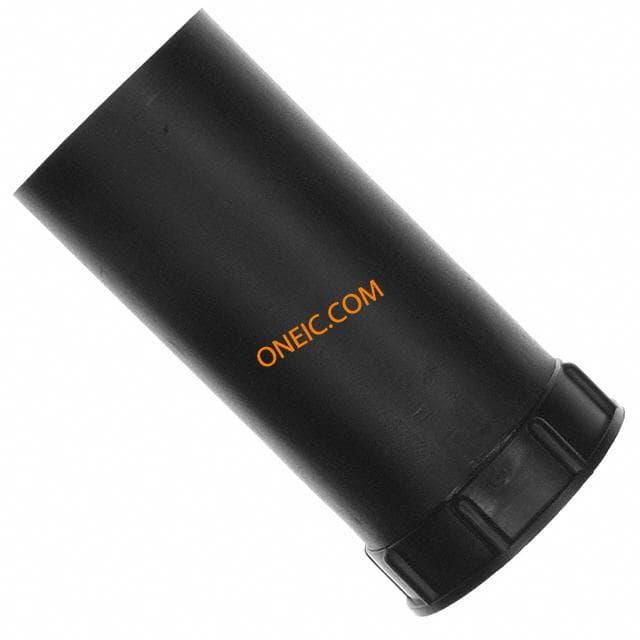

54012-1
te connectivity / amp
CPC STRAIN RELIEF,SIZE 23 Connector Accessories Seal Nylon/Polyolefin Black CPC Accessories CONN CABLE ENTRY SEAL SZ 23 CPC Cable entry seal,Shell size 23 Standard Circular Connector HEAT SHRINK BOOT 23 Connector Accessories Seal Nylon/Polyolefin Black Product Highlights:Cable SealShell Size = 23Cable Diameter Sealing Range = 13.97 - 31.75 mmSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CPCCABLEENTRYSEAL(HEATSHRINKABLESEALINGBOOTS);SHELLSZ.23 Shrink sleeve 14...31.8 mm, 54012-1, TE Connectivity TE Connectivity CPC 系列 防尘盖, 尺寸23

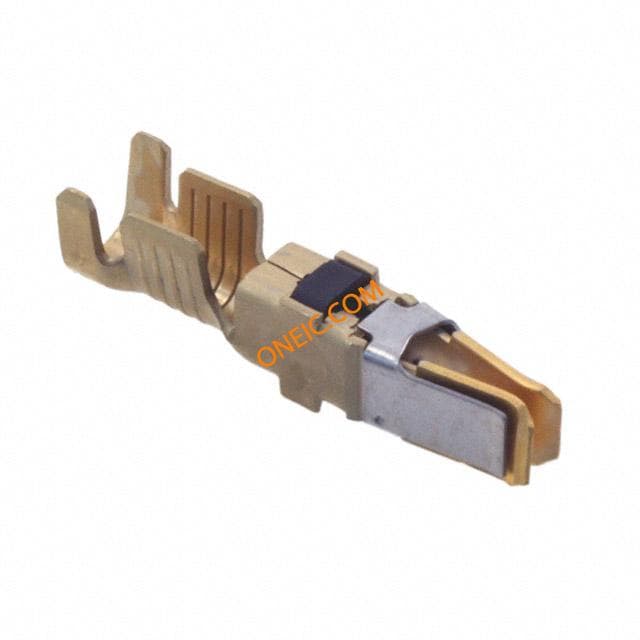

66741-6
