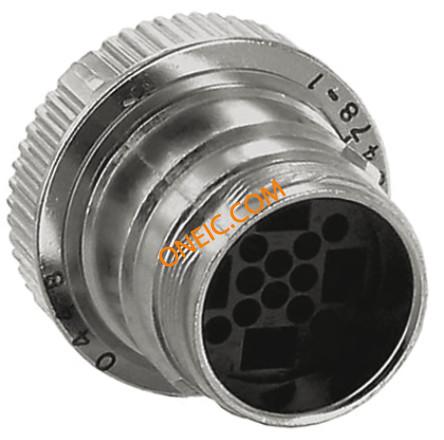

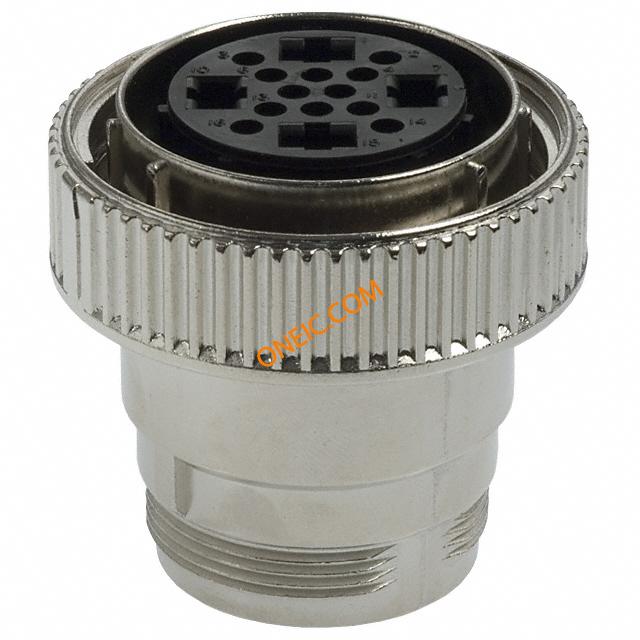

208478-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC SKT 16 POS ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN PLUG CMC 16POS STD SER 4 Connector,MetalShellCPC,PlugAssy,16Pos. Standard Circular Connector PLUG STANDARD 22-16M Conn Metal Shell CPC SKT 16 POS ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 28 16POS FREE HANGING Connector;MetalShellCPC;PlugAssy;16Pos.;Sz.28;Series4;FreeHanging CMC PLUG ASSEMBLY,SZ 28 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 12 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.159 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 28 |
| 方向 | Keyed | 外壳样式 | Plug |
| 螺纹尺寸 | 1-7/16 - 18 UNEF-2A | 触点尺寸 | 16 (12), 4 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Zinc alloy |
| 连接器样式 | Plug | 连接器用途 | Threaded |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Female | 配接方向 | Keyed |
| 触点数 | 16 | 绝缘直径 | 5.59 [0.220] |
| 位数 | 16 | 外壳尺寸-插件 | Metal |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 典型触点布局 | 4Power,12Signal |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CablePlug |
| 连接器性别 | Standard | 系列 | Series 4 |

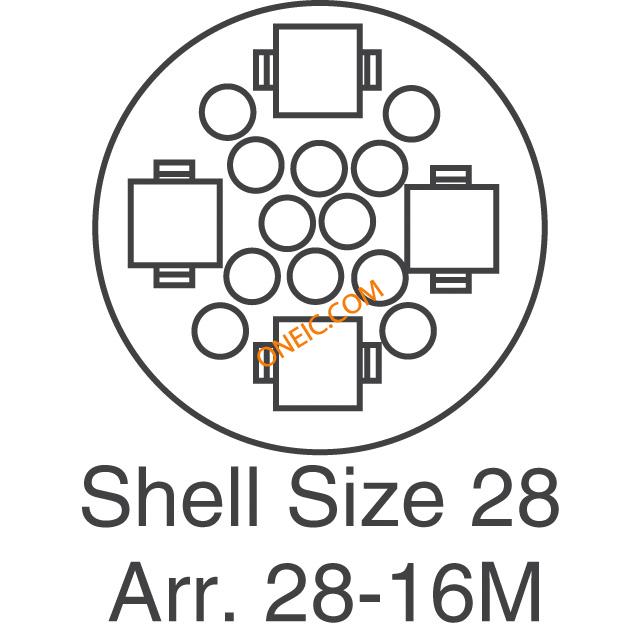

| 预加载 | No | 排列方式 | 28-16M |
| 制造商全称 | Series4 | 产品子类型 | Connector |
| 电路数 | 4 (Power)/12 (MultiMate) | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
