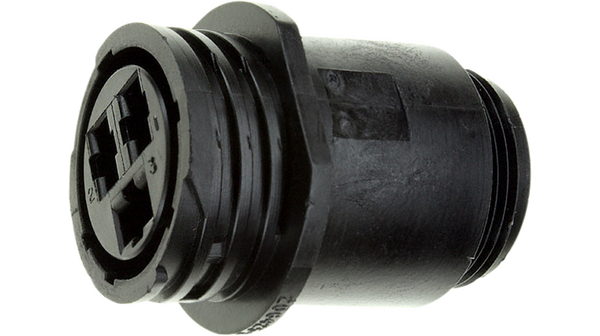

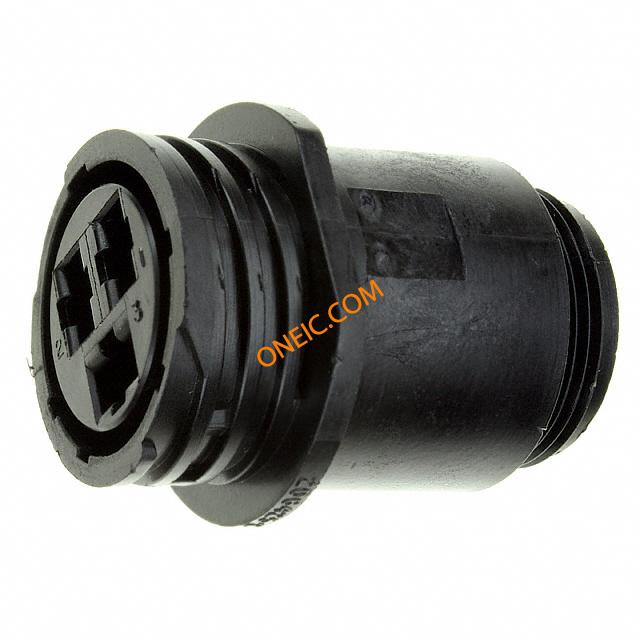

206425-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS Crimp ST Panel Mount Standard Circular Connector RECP REV F.H. 17-3 CPC Connectors CONN RECEPT CPC 3POS REV SER 3 Cable mnt rcpt, size 17, 3 way, socket Conn Housing RCP 3 POS Crimp ST Panel Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 30 Signal Positions3 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 3WAY ConnectorHousing;CPCRecept.Assy;3Pos.;Sz17;Series3;PanelMnt;RevSex Receptacle CPC3 Poles=3, accepts female contacts / Free hanging/cable mount, 206425-2, TE Connectivity TE Connectivity 3 路 直 母 面板安装 PCB 壳体 RECEPT ASSY,SZ 17-3,CPC |
| 分类 |
商业参数
| 商标名 | CPC Series 3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 0 | 最大额定电流 | :25A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 33.27mm |
| 宽度 | 29.48mm | 长度 | 41.52mm |
| 密封型 | No | 重量 | 0.01 |
| 包装方式 | Bulk | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点尺寸 | 3 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :17-3 | 本体材料 | :Glass Reinforced Nylon (Polyamide) |
| 材料表面处理 | :- | 壳体材料 | Thermoplastic |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 配接方向 | Threaded | 触点数 | 3 |
| 面板开孔形状 | :29.4mm | 绝缘直径 | 5.59 [0.220] |
| 位数 | 3 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 0.15" | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CPC |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 17-3 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series3 | 产品子类型 | Connectors |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
