点击放大查看

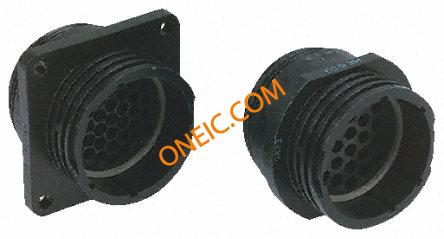

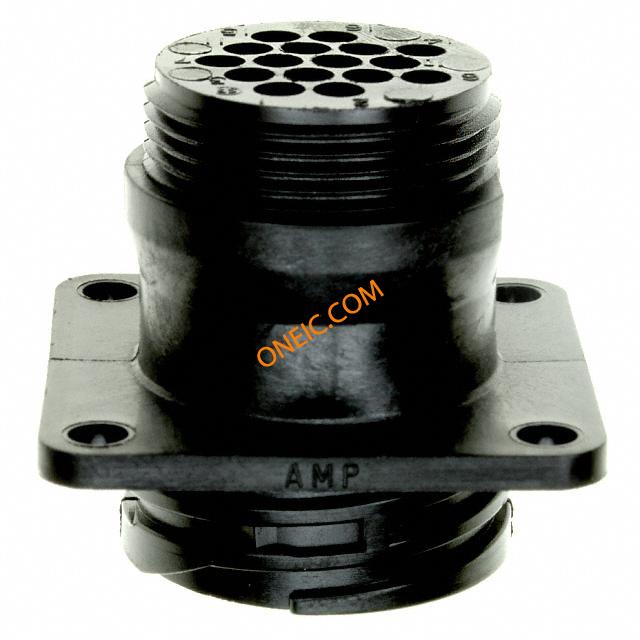

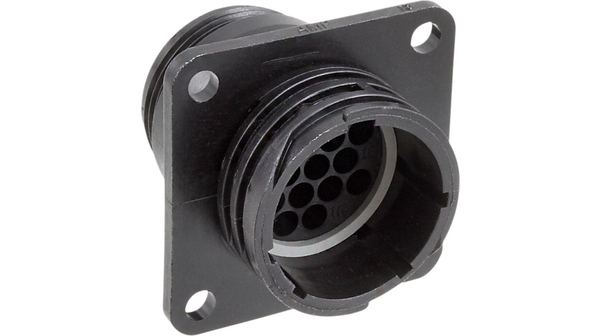

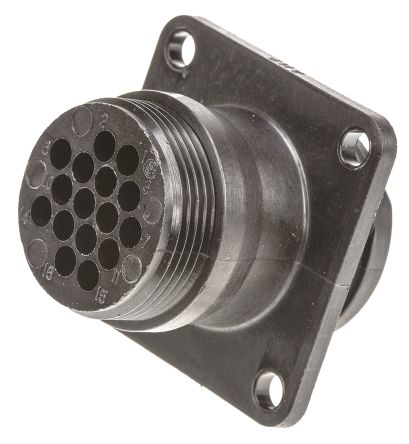

206036-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector RECEPTACLE 16 PIN shell size 17 Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;16Pos.;Sz.17;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=16, accepts male contacts / with flange / sealed, 206036-4, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插头 CPC RECPT SEALED SIZE 17-16 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 极数 | 16 | 防溅等级 | 浸入 |
| 通道数量 | 16 | 连接器阻抗 | 标准 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | Yes |
| 外形尺寸(长x宽) | 17 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | A |
| 外壳样式 | Receptacle | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 16Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Elastomer |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 34.29 mm | 包装数量 | 100 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 连接器颜色 | black | 配接方向 | Keyed |
| 触点数 | 16 | 端接表面处理 | 带有 |
| 位数 | 16 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 0.15" | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | No |
| 排列方式 | 17-16 | 外设 | Gray |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 206036 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 密封等级 | Peripheral | 工作范围 | 密封 |
| 防护等级 | IP65 | 工作温度 | -40...+105 °C |
