164163-2
| 制造商 | TE Connectivity Ltd. |

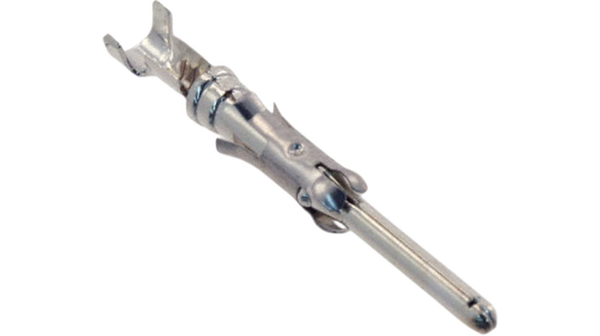

| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASSY Multimate CONN PIN 20-24AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;24-20AWG MultiMate Series 24-20 AWG Pin Crimp Gold Flash Loose Piece Stamped Connector Crimp Ground Pin 13 A, 164163-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASSY |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85444920 | ||
电气参数
| 输出电流 | 13A | 最大额定电流 | 13 A |
机械参数
| 深度 | 2.9 mm | 间距 | Not Required mm |
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线类型 | Regular | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触头类型 | Ground |
| 引脚直径 | 0.062in. | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 29.4mm | 框架材料 | StainlessSteel |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 绝缘直径 | 0.045to0.071in. |
| 镀层厚度（通用） | 31.5µin (0.80µm) | 线规或范围 - AWG | :24AWG |
产品信息
| 类型 | Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Multimate III+ |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :CPC Connectors |
相关型号
211401-7
te connectivity / amp

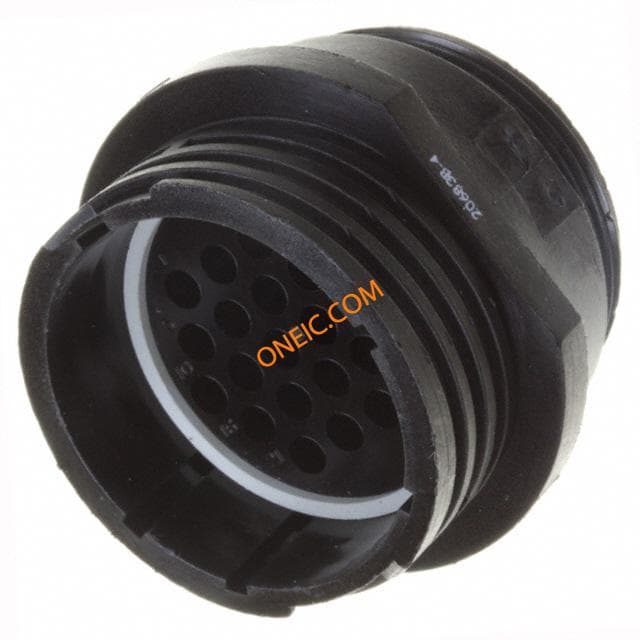

Conn CPC SKT 7 POS ST Panel Mount 7 Terminal 1 Port Standard Circular Connector RECEPT SZ 13-7 CPC Connectors CONN RCPT CPC 7POS STD SER 1 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 77 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ 13-7,CPC
208486-3
te connectivity / amp
Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN PLUG CMC 14POS REV SER 1 Standard Circular Connector CMC PLUG 22-14 Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 1414 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CMC PLUG ASSEMBLY,SZ 22
206151-3
te connectivity / amp

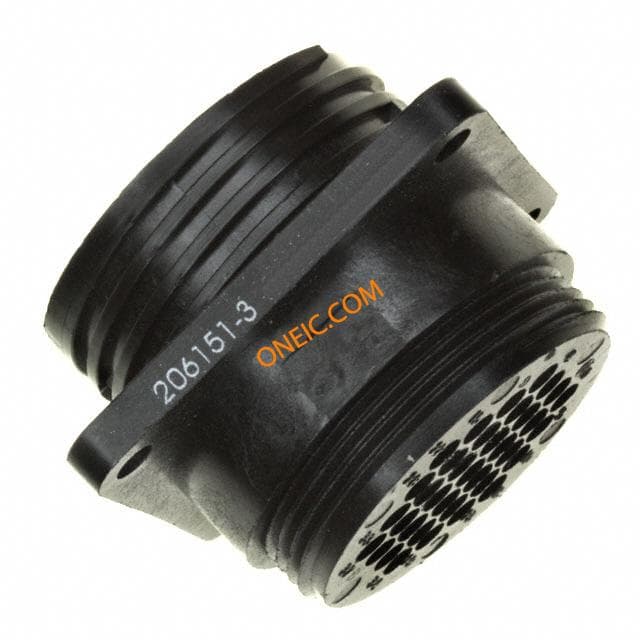

Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PNL SEALED Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / with flange / sealed, 206151-3, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
