点击放大查看

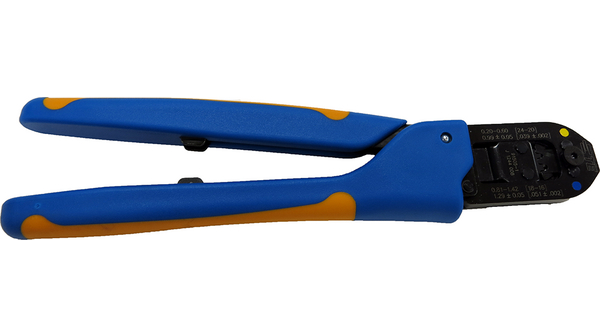

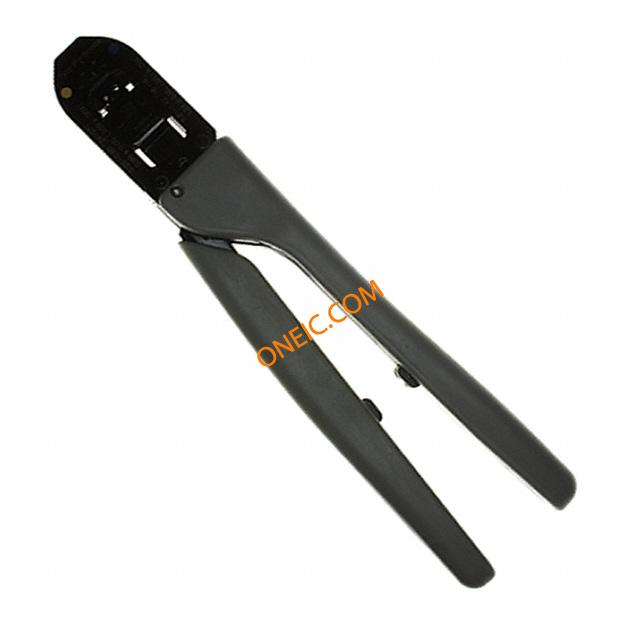

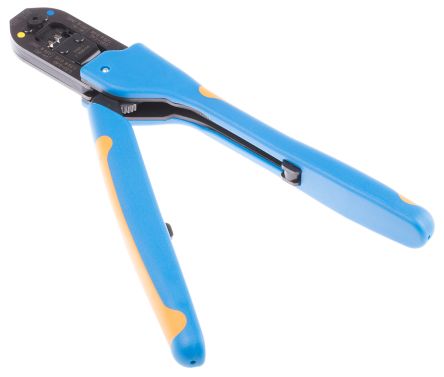

91505-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT TYPE III+ TOOL CRIMPER RATCHETING 16-24AWG Crimper,SAHTRatchet,24-16AWG,CPCCon CRIMP TOOL, SAHT TYPE III Crimper;SAHTRatchet;24-16AWG;CPCConnectors,TypeIII,TypeVI,TypeXContacts Crimping tool, 91505-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Multimate Type III+ Contacts 压接工具 , 适用于24 → 16 AWG 线规格 CERTICRIMP 2,SAHT TYPE III+ |
| 分类 |
商业参数
| 产品 | Crimpers | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 宽度 | :52mm | 长度 | :303mm |
| 重量 | :22oz | 包装方式 | Bulk |
| 连接器类型 | CPC, Type III Contacts, Type VI Contacts, Type X Contacts | 适用端子尺寸 | 24-20 AWG |
| 配接方向 | :CPC Connectors, M Series Connectors | 线规或范围 - AWG | 16 AWG |
| 线规或范围 - mm² | 24AWG | ||
产品信息
| 类型 | Hand Tool | 系列 | :CPC |
| 产品特性 | Side Entry, Ratchet | 工具类型 | Hand Crimper |
| 适用产品/相关产品 | Backplane and Circular Contacts, 16-24 AWG | ||
