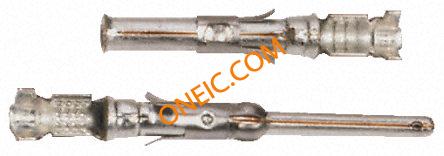

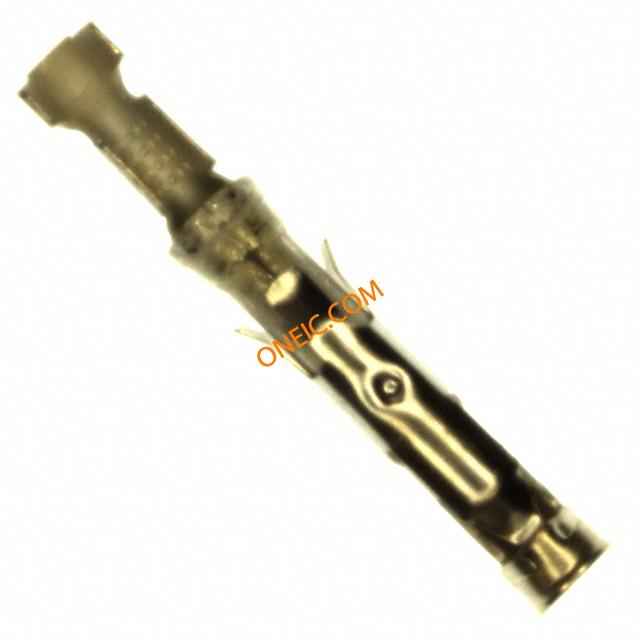

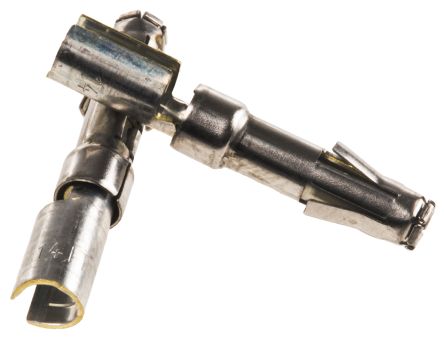

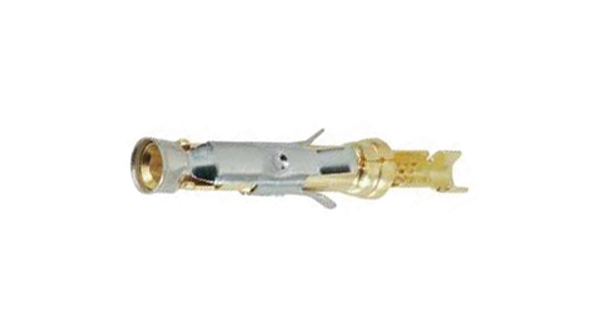

163088-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 062 SOC.ASS. TYP3+ Multimate CONN SOCKET .062 24-20AWG TIN HD female crimp contact,0.3-0.56sq.mm Standard Circular Contacts 062 SOC.ASS. TYP3+ 163088-1 Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 24-20 AWG, CRIMP HDFEMALECRIMPS0.3-0.56 Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped Crimp contact female, 163088-1, TE Connectivity TE Connectivity Type III+ 系列 母座 压接触点 , 适用于III 型 + 连接器 |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 200 | 工厂包装数量 | 200 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 |
机械参数
| 重量 | 0.027 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 20-24 AWG | 安装类型 | crimped |
| 插针或插孔 | Socket | 电缆直径 | 1.15...1.8mm |
| 连接器类型 | female | 接触镀层 | Tin |
| 封装形式 | in bulk | 触头材料 | :Brass |
| 包装数量 | 200 | 连接器 - 电缆 | contact |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 78.7µin (2.00µm) | 线规或范围 - AWG | :24AWG |
| 线规或范围 - mm² | :0.60mm² | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 200 | 类型 | Stamped |
| 连接器性别 | Female | 系列 | Type III+ |
| 适配器系列 | Type III+ | 单元数量 | 1 |
| 适用产品/相关产品 | :Type III+ Connectors | ||
