点击放大查看
66103-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 输出电流 | 13A | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 | ||
机械参数
| 深度 | 2.92 mm | 间距 | Not Required mm |
| 重量 | 0.04 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触点尺寸 | :16 |
| 触头类型 | Signal | 引脚直径 | 0.062in. |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 电缆直径 | 1.02...2.03mm | 连接器类型 | Connector Power |
| 接触镀层 | Gold over Nickel | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 27.48 mm |
| 框架材料 | StainlessSteel | 包装数量 | 1 |
| 连接器 - 电缆 | contact | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Gold | 触点数 | 1 POS |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 绝缘直径 | 0.040to0.080in. | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | :0.6mm² |
| 触点材料 - 镀层 | gold plated | 外径-未扩张 | :2.03mm |
产品信息
| SPG | 1 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | Multimate Type III | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 适配器系列 | Type III+ |
| 端口数 | 1 Port | 单元数量 | 1 |
| 适用产品/相关产品 | :Type III+ Series Connectors | ||
相关型号
194279-1
te connectivity / amp
Conn Housing RCP 11 POS ST Heavy Duty Power Connectors HOUSING RCPT 11 POS Drawer Connectors, High Current CONN HOUSING RCPT 11POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 11Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,11 POS
213931-2
te connectivity / amp
Connector Accessories Cable Connector Kit Receptacle 34 POS Polyester Black Loose Piece Pin & Socket Connectors KIT V.35 34P CONN RCPT 34POS W/CABLE HARDWARE M Series Connectors M Series Connectors Product Highlights:Housing KitHardware Type = Jackscrew34 PositionsPolyester Housing MaterialConnector Style = ReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES KIT,V.35,34P
207305-1
te connectivity / amp
Conn Housing RCP 24 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 24 POS METRIMATE 24 way female connector,5mm pitch Pin & Socket Connectors 24P SQ GRID RCPT Conn Housing RCP 24 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 24ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 24WAY, 5 Connector,SoftShell;Receptacle;24;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 24 Contact DesignMale Metrimate, 207305-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 24 路 直 母 压接连接器外壳 24 POS SQ GRID METRIMATE-RCPT
207020-1
te connectivity / amp
Conn Housing RCP 36 POS 5mm ST Metrimate Connectors CONN RECEPT 36 POS METRIMATE 36 way female connector,5mm pitch Pin & Socket Connectors SQ GRID 36 PIN CONN Conn Housing RCP 36 POS 5mm ST Product Highlights:HousingRectangular Connector ConfigurationNumber of Positions = 36ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 36WAY, 5 Connector,SoftShell;Receptacle;36;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 36 Contact DesignMale Metrimate, 207020-1, TE Connectivity TE Connectivity Metrimate 系列 9 行 5mm 节距 36 路 直 母 压接连接器外壳 METRIMATE RCPT 36 POS
208209-2
te connectivity / amp
Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Metrimate Connectors CONN RECEPT 19 POS METRIMATE TE Connectivity 5.08mm 19 Way 5 Row Straight Cable Mount Female Multiway Connector Pin & Socket Connectors 19 POS METRI PIN HSG Conn Housing RCP 19 POS 5.08mm Crimp ST Cable Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, RCPT, POLYESTER METRIMATEDRAWERCONN,METRIMATEPINHSG19POSN TE Connectivity 19路 (5行) 5.08mm节距 直 电缆安装 母 METRIMATE PIN HSG 19 POSN
58495-2
te connectivity / amp
Connector Accessories Die Set Punches & Dies PROCRIMPER DIE ASSY MULTIMATE TOOL DIE SET CPC CONN TYPE III Die set for procrimper tool DIE, CPC SERIES 1 ProcrimperDieAssymblyMultimate;Diefor527-0108Handtool Crimp insert for type III+, 58495-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 16 AWG 线规格 PROCRIMPER DIE ASSY MULTIMATE
201355-1
te connectivity / amp
Conn Housing PL 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 14POS BLACK Housing plug 14 way M series Pin & Socket Connectors MALE BLOCK 14 PL. Conn Housing PL 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 14WAY InterconnectPlugHousing;Phenolic;Black;Standard;14;AmpBrand,MSeries TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 公 压接连接器外壳 MALE BLOCK 14 PL.
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
213803-2
te connectivity / amp
Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece M Series Connectors 34P PLUG KIT,M-SERIES,CC,JS Connector Accessories 34 POS Plug Power Housing Kit Polyester Black Zinc Nickel Finish Loose Piece Search Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
200512-2
te connectivity / amp
Conn Housing RCP 26 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 26POS BLACK Housing 26 way Receptacle M Series Pin & Socket Connectors FEMALE BLOCK 26 PL. Conn Housing RCP 26 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 26Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CONNECTOR,SOFTSHELL,M-SERIES,RECEPTACLE,26POSITION,MINIATURE,PHENOLIC,B TE Connectivity M 系列 29.209mm 节距 26 路 直 母 电缆安装 压接连接器外壳 FEMALE BLOCK 26 PL.
208715-1
te connectivity / amp
Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CMC 7POS STD SER 1 Standard Circular Connector RECP SQUARE STD 14-7 Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 7WAY Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.14;Series1;PanelMount RECEPT ASSY,SZ 14-7,CMC
211768-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS REV SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:9 Cable plug, series CPC 9-pin CPC 1 9P Male 17, 211768-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-9
58495-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PCRIMP HN 28-16 AWG TOOL CRIMP CPC PROCRIMPER III Type III + contacts crimp tool CRIMP TOOL, TYCO AMP TYPE I Crimper;Ratchet;28-16AWG;CPC,MultimateContacts;58495-2Die;PRO-CRIMPERIII Tool: for crimping; terminals; 16÷18AWG,24÷20AWG,28÷24AWG Hand plier "Pro Crimper II", 58495-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Multimate Type III+, Multimate Type VI Contacts 压接工具 PRO CRIMPER ASSY MULTIMATE
213801-1
te connectivity / amp
Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series and V.35 Connectors CONN RCPT HOUSING 34POS VERT BLK Pin & Socket Connectors M-SER REC HSG 34 POS Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES RCPT HOUSING,34 POS
91505-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT TYPE III+ TOOL CRIMPER RATCHETING 16-24AWG Crimper,SAHTRatchet,24-16AWG,CPCCon CRIMP TOOL, SAHT TYPE III Crimper;SAHTRatchet;24-16AWG;CPCConnectors,TypeIII,TypeVI,TypeXContacts Crimping tool, 91505-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Multimate Type III+ Contacts 压接工具 , 适用于24 → 16 AWG 线规格 CERTICRIMP 2,SAHT TYPE III+
91515-1
te connectivity / amp
Straight Action Hand Tool Crimpers CERTICRIMP 2 SAHT TYPEIII+ TOOL HAND CERTI - CRIMP 20-30AWG Crimper,SAHTRatchet,30-22AWG,CPC,MultiM Connector Accessories CPC Connector Hand Tool CRIMP TOOL, 0.05-0.6MM Crimper;SAHTRatchet;30-22AWG;CPC,MultimateContacts;CERTI-CRIMPII CERTI-CRIMP 2,SAHT TYPE III+

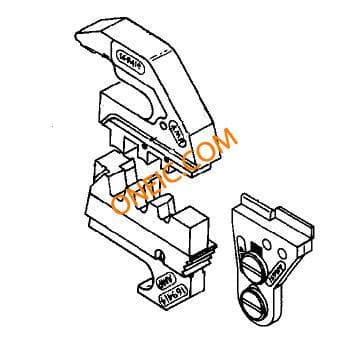

169414
