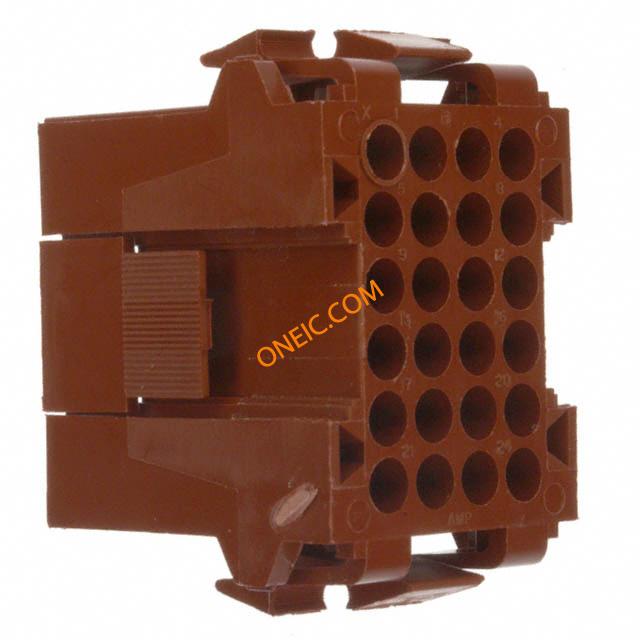

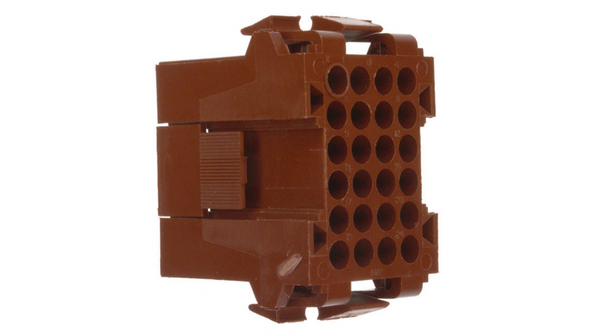

207305-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 24 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 24 POS METRIMATE 24 way female connector,5mm pitch Pin & Socket Connectors 24P SQ GRID RCPT Conn Housing RCP 24 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 24ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 24WAY, 5 Connector,SoftShell;Receptacle;24;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 24 Contact DesignMale Metrimate, 207305-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 24 路 直 母 压接连接器外壳 24 POS SQ GRID METRIMATE-RCPT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 225 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL,VDE | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 33.02mm |
| 间距 | 5 mm | 宽度 | 27.84mm |
| 高度 | 27.84 mm | 重量 | 0.004 |
| 包装方式 | Bulk | 排间距 | 0.197" (5.00mm) |
| 触头类型 | Male Pin | 极化 | PolarizingTab |
| 第二连接器 | With | 外壳颜色 | Red |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Housing | 紧固类型 | Latch Lock |
| 安装样式 | Panel | 排数 | 4 |
| 轴直径 | Without | 连接器用途 | Square Grid |
| 锁定特性 | Locking Tab | 壳体材料 | Thermoplastic - GF |
| 总长度 | 1.63" | 安装特性 | Without |
| 包装数量 | 225 | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.197" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 传感器连接器 | Without |
| 配接方向 | Polarizing Tab | 触点数 | 24 |
| 接触件端接 | Crimp and Solder | 位数 | 24 |
| 中心触点表面处理 | 5.0 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP Metrimate |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 配置 | SquareGrid | 其他规格 | No |
| 适用产品/相关产品 | Square Grid Pin & Socket Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66406-4
te connectivity / amp

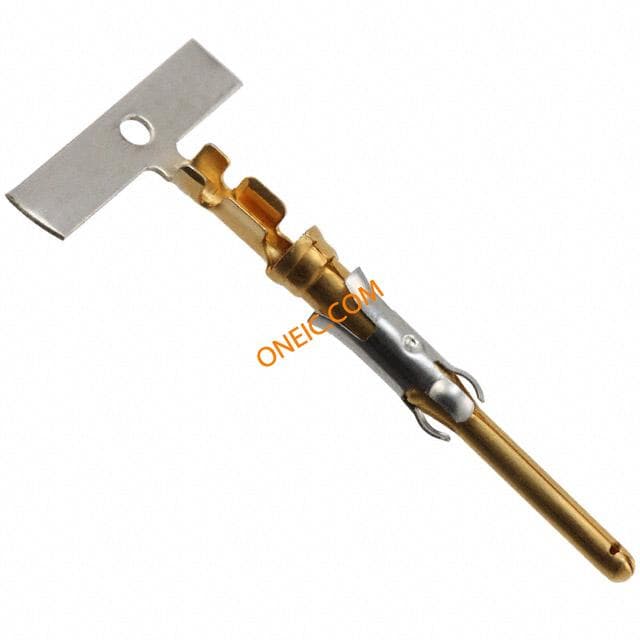

Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors PIN 30-26 BR/AU SIG TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp Contact; male; 0.05÷0.15mm2; 26÷30AWG; Type III+; gold plated III+ PIN,30-26,30AU/FL,LP
66106-7
te connectivity / amp
III+ PIN,26-24,15AU/FL,STRIP Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors TYPE III + PIN 26-24 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66602-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Standard Circular Connector PIN 18-14 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-14AWG;Crimp MultiMate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,30AU/FL,LP
66332-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG GOLD CRIMP Standard Circular Contacts PIN 24-20 30AWG REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,24-20,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金触点 III+ PIN,24-20,30AU/FL,STRIP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
207532-1
te connectivity / amp
Conn Power SKT 24 POS 5mm Solder ST Thru-Hole 24 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 24POS VERT TIN Power to the Board METRIMATE SKT HDR 24 32 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 24SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,24 POSN,METRIMATE
207532-3
te connectivity / amp

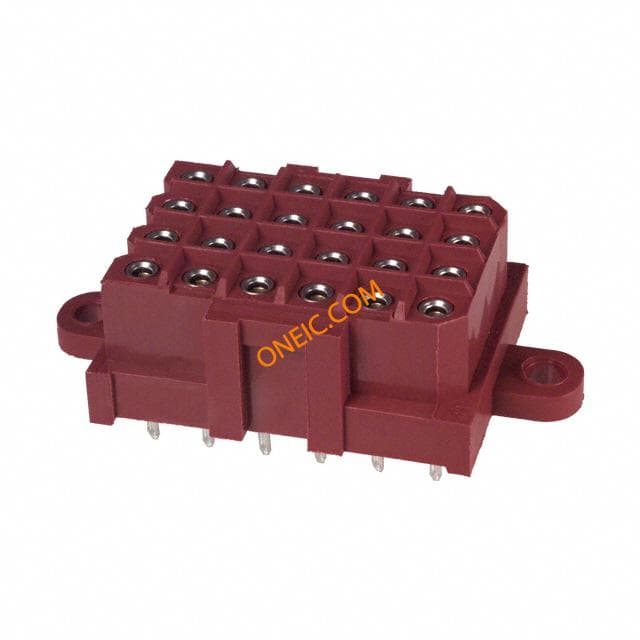

Conn Power SKT 24 POS 5mm Solder ST Thru-Hole 24 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 24POS VERT GOLD Pin & Socket Connectors SKT HDR 24PMETRIMATE 32 Conn Power SKT 24 POS 5mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 24SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,24 POSN,METRIMATE
66359-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Pin & Socket Connectors III+ PIN18-1415 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,18-14,15AU/FL,STRIP Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,15AU/FL,STRIP
207532-8
te connectivity / amp
Conn Power SKT 24 POS 5mm Solder ST Thru-Hole 24 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 24POS VERT TIN Pin & Socket Connectors 24P SCKT HEADER TIN METRIMATE SKT HDR ASSY,24 POSN,METRIMATE SKT HDR ASSY,24 POSN,METRIMATE Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, 24 Position 5 mm Pitch Square Grid Receptacle Box Header
207088-1
te connectivity / amp

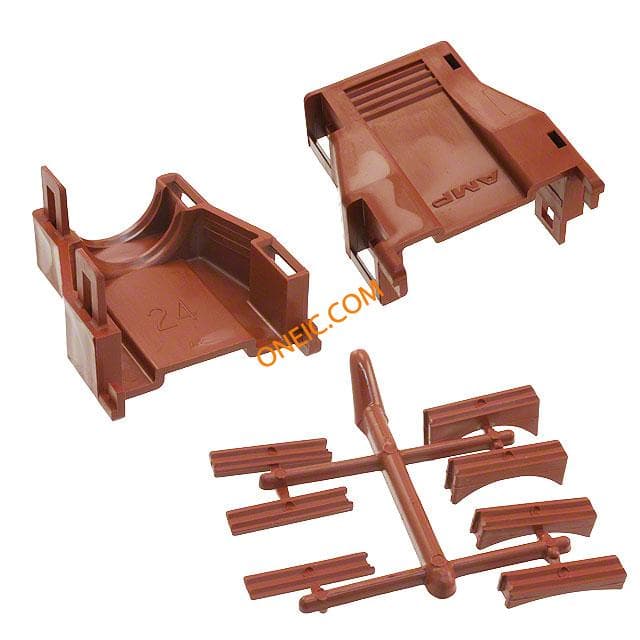

METRIMATE,STR REL KIT,24P Metrimate Connectors METRIMATE STRAIN RELIEF 24POS 24 way metrimate hood,19.05mm cable dia Pin & Socket Connectors METRIMATE STR REL KIT 24P Connector Accessories Strain Relief Kit 24 POS Thermoplastic Red 600VAC Connector Accessories Strain Relief Kit 24 POS Thermoplastic Red 600VAC Product Highlights:Strain Relief KitSquare Grid Connector ConfigurationNumber of Positions = 24Not KeyedWithout Mounting EarsSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, STRAIN RELIEF KIT, 24WAY CONNECTOR,SOFTSHELL,METRIMATE,STRAINRELIEFKIT,24POSITION,SQUAREGRID TE Connectivity 应力释放支架
207532-4
te connectivity / amp
Conn Wire to Board SKT 24 POS 5mm Solder ST Thru-Hole Metrimate Connectors SKT HDR ASSY,24 POSN,METRIMATE Pin & Socket Connectors SKT HDR ASSY,24 POSN METRIMATE Conn Wire to Board SKT 24 POS 5mm Solder ST Thru-Hole Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
1-207532-1
te connectivity / amp

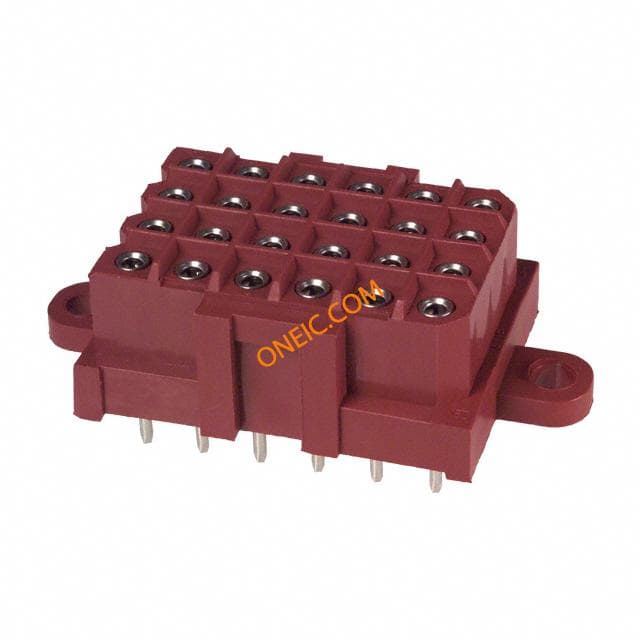

Conn Wire to Board SKT 24 POS 5mm Solder ST Thru-Hole Metrimate Connectors SKT HDR ASSY,24P,MMATE LF Pin & Socket Connectors SKT HDR ASSY,24P MMATE LF 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 24SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
