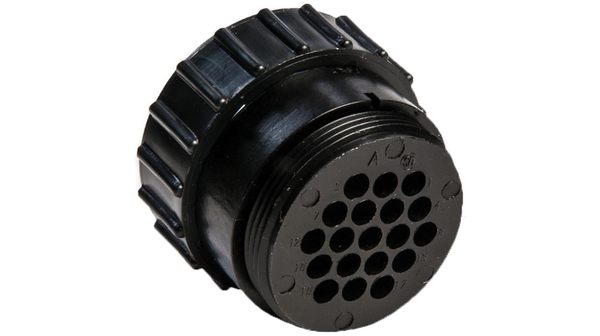

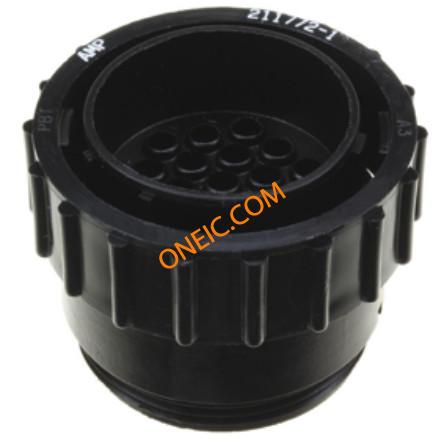

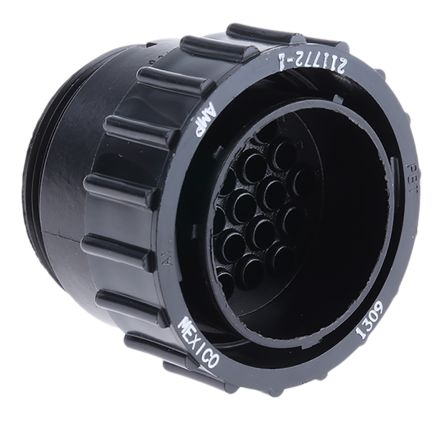

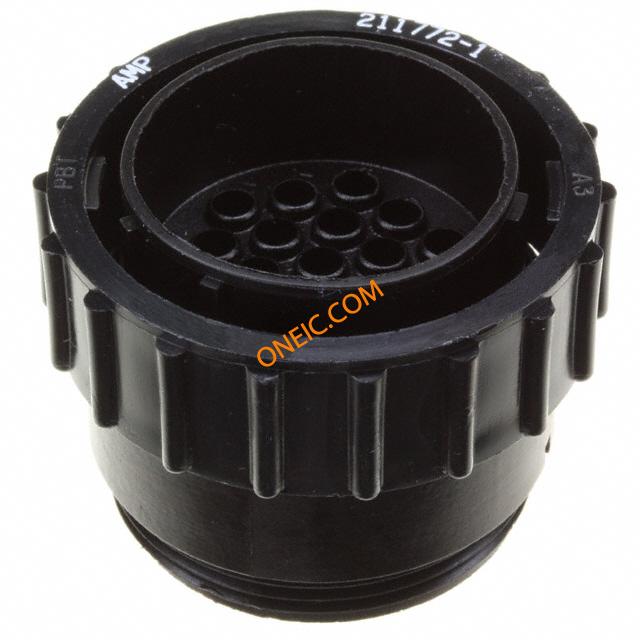

211772-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CPC Connectors CONN PLUG CPC 19POS REV SER 1 19 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector PLUG 19 POSITION shell size 23 Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 23 19POS FREE HANGING ConnectorHousing;CPCPlugAssy;19Pos.;Sz.23;Series1;FreeHang;RevSex Cable plug, series CPC 19-pin CPC 1 19P Male 23, 211772-1, TE Connectivity TE Connectivity 19路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 23-19 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85361010 |
| 合规性 | Yes | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 通道数量 | 19 |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.027 | 直径 | 45.29 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 19Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Plug | 本体材料 | :Thermoplastic |
| 磁芯材质 | Polyester | 壳体材料 | Thermoplastic |
| 总长度 | 34.67 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 19 |
| 绝缘直径 | 3.81 [0.150] | 位数 | 19 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 23-19 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | No | 排列方式 | 23-19 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 211772 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 防护等级 | IP65 | 工作温度 | +105°C |
