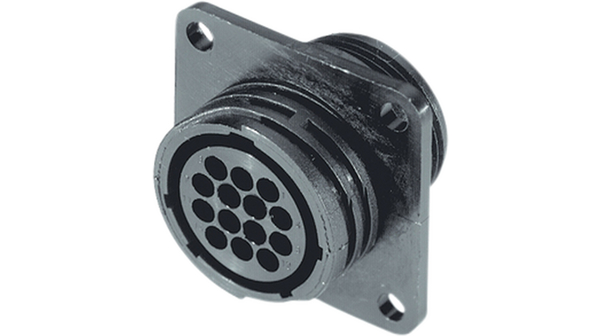

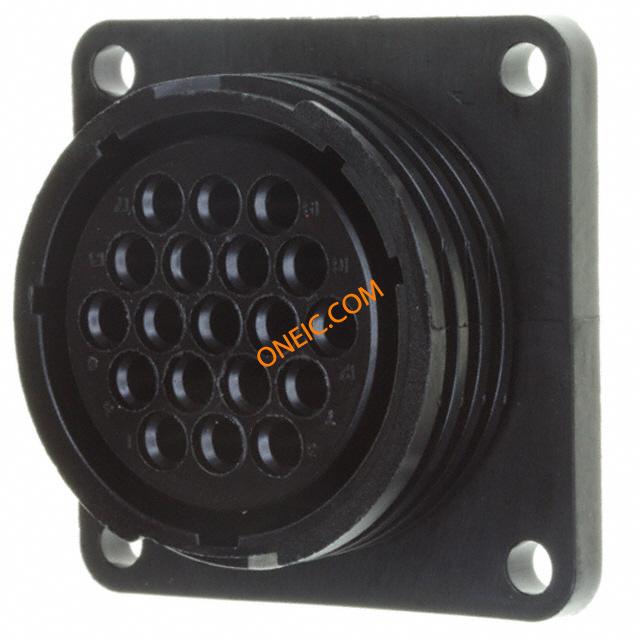

211773-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 19 POS Crimp ST Panel Mount 19 Terminal 1 Port CPC Connectors CONN RECEPT CPC 19POS REV SER 1 19 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector RECEPTACLE 19 PIN shell size 23 Conn CPC SKT 19 POS Crimp ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;19Pos.;Sz.23;Series1;PanelMnt;RevSex Female receptacle series CPC 19-pin CPC 1 19P Female 23, 211773-1, TE Connectivity TE Connectivity 19路 面板安装 直向 连接器 插座 , 母触点 23-19 CPC RECEPT REV SEX |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | Yes |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 频率 | 38.4 | 额定电压 | 250 V ac |
| 极数 | 19 | 防溅等级 | 无 |
| 通道数量 | 19 | 连接器类型 - 电压输入 | 反向 |
机械参数
| 颜色 | Black | 高度 | 3.8 |
| 密封型 | No | 外形尺寸(长x宽) | 23 |
| 包装方式 | Bulk | 壳体颜色 | 13.2 |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 重量（g） | 44.5 |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接排数 | 压接 |
| 端接样式 | Wire | 第一触头极性 | Female |
| 连接器颜色 | black | 外径 | 36.5 |
| 配接方向 | Keyed | 触点数 | 19 |
| 端接表面处理 | 带有 | 绝缘直径 | 3.81 [0.150] |
| 位数 | 19 | 外壳尺寸-插件 | All Plastic |
| 第一连接器极性 | Female | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | No | 排列方式 | 23-19 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series1 |
| 产品子类型 | Connector | 放大器类型 | 27.8 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作范围 | 不密封 | 防护等级 | IP65 |
| 工作温度 | +105°C | ||
