点击放大查看

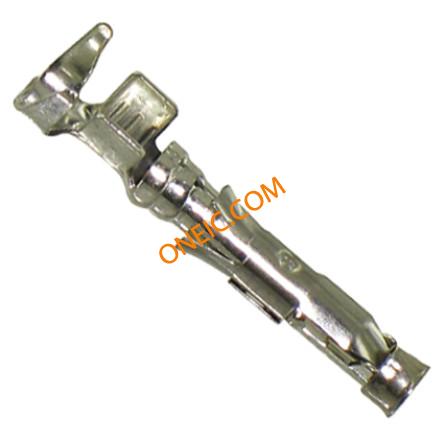

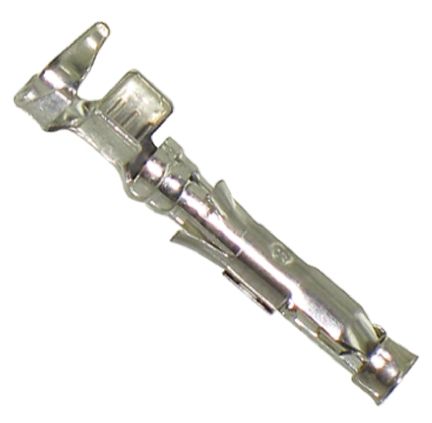

1-66601-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONTACT SKT 14-18AWG CRIMP TIN Contact,Multimate,Socket,16,CopperAlloy Pin & Socket Connectors III+ SKT 18-14 TIN III+ SKT 18-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentTin over Nickel Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;CopperAlloy;Signal;TinoverNickel;Crimp;18-14AWG TE Connectivity 25A 母 压接端接 圆形 连接器 触芯, 使用于Multimate 连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 1666012 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 输出电流 | Socket | 最大额定电流 | 25A |
| 输出高/低电流 | Yes | ||
机械参数
| 深度 | 4.32 mm | 重量 | 0.00045 |
| 镀层 | Tin | 材料（通用） | Copper, Nickel Alloy |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 出线方向 | No | 电缆类型 | Discrete Wire |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 触头类型 | Signal | 引脚直径 | 1.57 [0.062] |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 外壳镀层 | Not Required | 连接器类型 | Connector Circular |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 磁芯材质 | Stainless Steel | 触头材料 | Phosphor Bronze |
| 总长度 | 20.96 mm | 框架材料 | StainlessSteel |
| 包装数量 | Loose Piece | 绝缘高度 | Yes |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 端接表面处理 | Tin |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 绝缘直径 | 2.79 â 3.81 [0.110 â 0.150] | 镀层厚度（通用） | 50µin (1.27µm) |
| 线规或范围 - AWG | 18-14 | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | Contacts can only be used in Metrimate, Series 1 (Arr. 23-24), Series 4 (Arr. 2 | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | SKT |
| 系列 | Multimate Type III | 制造商全称 | Multimate |
| 产品子类型 | Type III+ - Enhanced High Current | 连接类型 | Wire |
| 射频系列/标准 | 66601 | 适用产品/相关产品 | Multimate Connector |
| 适用/相关制造商 | CPC Connectors, VDE Connectors | ||
文档与媒体
相关型号
211766-1
te connectivity / amp
Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SOCKET, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 sale Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount, 211766-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 17-9
213766-1
te connectivity / amp
Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Metrimate Connectors CONN RECEPT 23 POS METRIMATE Pin & Socket Connectors METRIMATE 23 POS REC 213766-1 Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE,23 POS RECPT HSG
202760-2
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) SKT MODULE, 14 POSN, G-SERIES Pin & Socket Connectors G SOCKET MODULE 14P Connector Accessories Rectangular Module Phenolic Black Search Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,

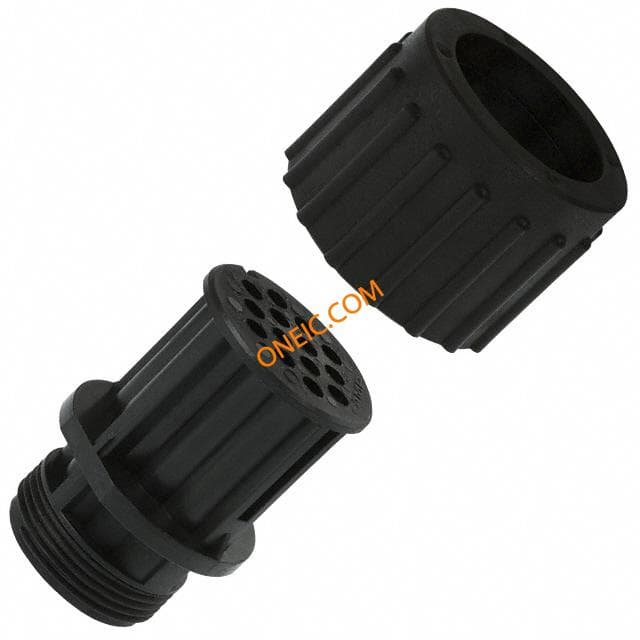

213652-1
