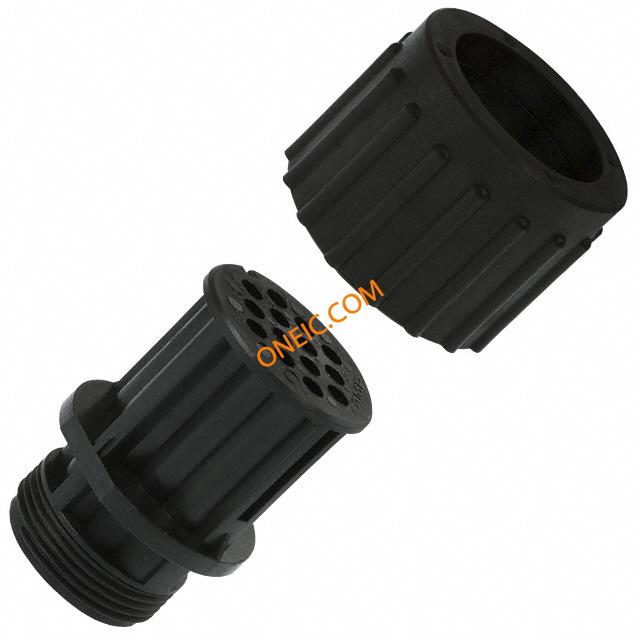

213652-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn MIL-C-5015 Circular SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN PLUG CPC 14POS STARDARD BLK Standard Circular Connector CPC PLUG KIT 20-14 Conn MIL-C-5015 Circular SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:Plug KitNumber of Positions = 14PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCPlugKit;14Pos.;Sz.20;MIL-C-5015;FreeHang;StdSex CPC PLUG KIT 20-14,STD SEX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized/CSA | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | 否 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 14 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 20 | 直径 | 39.75 mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 出线方向 | No | 外壳尺寸 | 20 |
| 方向 | Keyed | 外壳样式 | Plastic |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 14Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 0 |
| 外壳材料（壳体） | 插头 | 连接器样式 | Plug |
| 触头材料 | Brass | 壳体材料 | Polyamide |
| 总长度 | 41.66 mm | 包装数量 | 1 |
| 主要材料 | 5015Commercial | 端接样式 | Wire |
| 第一触头极性 | Socket | 配接方向 | Keyed |
| 触点数 | 14 | 端接表面处理 | 带有 |
| 位数 | 14 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Polyamide |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 20-14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | MIL-C-5015 Circular |
| 类别 | Without | 连接器性别 | PL |
| 系列 | MIL-C-5015 | 预加载 | No |
| 排列方式 | 20-14 | 制造商全称 | MIL-C-5015 |
| 产品子类型 | Plug Kit | 射频系列/标准 | 213652 |
| 其他规格 | 带有 | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
