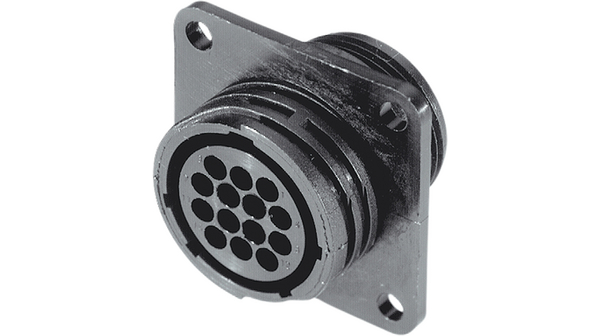

211769-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS REV SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 17 Conn CPC SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, PANEL, SIZE 17, 9WAY ConnectorHousing;CPCReceptacle;9Pos;Sz.17;Series1;PanelMount;RevSex Connector: circular; Series: CPC Series 1; socket; female; PIN:9 Female receptacle series CPC 9-pin CPC 1 9P Female 17, 211769-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 母触点 17-9 CPC RECEPT REV SEX |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | Yes | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 通道数量 | 9 |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 重量 | 0.014 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 9Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 封装形式 | size 17 |
| 连接器样式 | Receptacle | 插入角度 | :17-9 |
| 锁定特性 | threaded joint, external thread | 面板厚度 | 0.125" |
| 壳体材料 | Thermoplastic | 总长度 | 27.18 mm |
| 包装数量 | 1 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 连接器 - 电缆 | socket |
| 端接样式 | Wire | 第一触头极性 | Female |
| 配接方向 | Keyed | 触点数 | 9 |
| 绝缘直径 | 3.81 [0.150] | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 17-9 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 1 | 产品特性 | ReverseGender |
| 钥匙类型 | A | 极性 | A |
| 预加载 | No | 排列方式 | 17-9 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 211769 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 防护等级 | IP65 | 工作温度 | +105°C |
相关型号

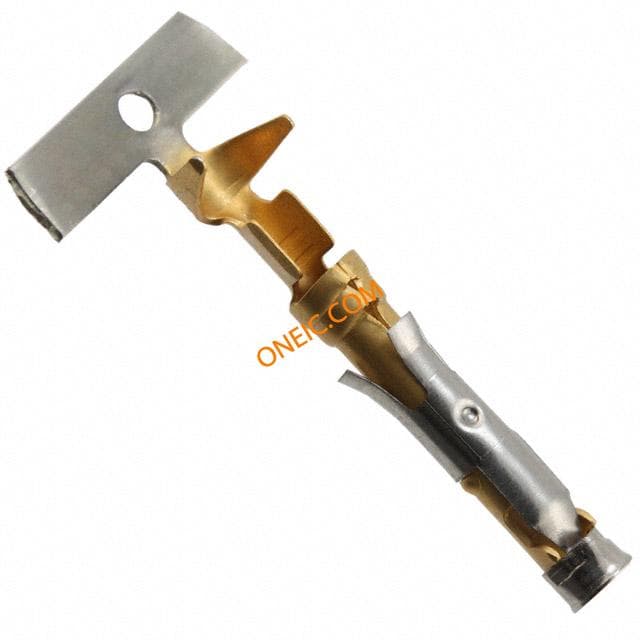

66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP

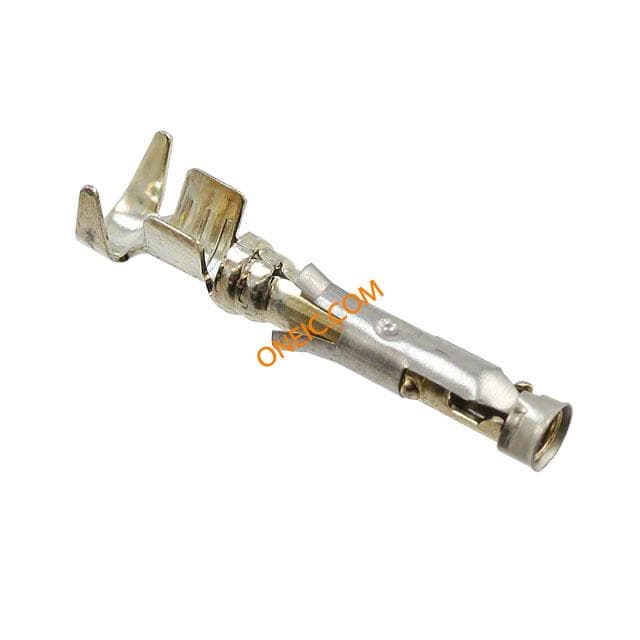

66360-2
te connectivity / amp
III+ SKT,18-14,TIN-LEAD,LP Standard Circular Contacts TIN SOCKET 18-14 AWG CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSLP,III+SKT,18-14,TIN-LEAD,LP
66405-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET 26-30AWG GOLD CRIMP Multimate III Socket Contact 30-26 AWG Contact; Socket; 16; Brass; Signal; Gold (30) over Nickel (50); 30-26 AWG Pin & Socket Connectors TYPIII SKT 30-26 BR/AU SIG Conn Contact F 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 30-26AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
1-66109-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 26-24 series 1 Multimate CONN SOCKET 24-26AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-24AWG, CRIMP III+ SKT,26-24,TIN-LEAD,SMPACK
66100-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONTACT SKT 16-18AWG STRIP GOLD Pin & Socket Connectors III+ SKT 18-16 30AU/FL STRIP III+ SKT,18-16,30AU/FL,STRIP III+ SKT,18-16,30AU/FL,STRIP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
211768-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS REV SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:9 Cable plug, series CPC 9-pin CPC 1 9P Male 17, 211768-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-9
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66360-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Pin & Socket Connectors SOCKET CONTACT 18-14 Series 1 Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesBright Tin-Lead Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Multimate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-14,TIN-LEAD,SMPACK
66109-2
te connectivity / amp
III+ SKT,26-24,TIN-LEAD,LP Multimate CONN SOCKET 24-26AWG TIN CRIMP Standard Circular Contacts TIN SOCKET 26-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin-Lead Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66100-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 16-18AWG GOLD CRIMP Pin & Socket Connectors SIZE 16 SOCKET Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,18-16,15AU/FL,STRIP MULTIMATE Type III+ Series 18-16 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-16,15AU/FL,STRIP
1-66358-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG TIN CRIMP Pin & Socket Connectors III+ SKT,18-14 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmPhosphor Bronze Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,18-14,TIN-LEAD,STRIP
1-66601-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONTACT SKT 14-18AWG CRIMP TIN Contact,Multimate,Socket,16,CopperAlloy Pin & Socket Connectors III+ SKT 18-14 TIN III+ SKT 18-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentTin over Nickel Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;CopperAlloy;Signal;TinoverNickel;Crimp;18-14AWG TE Connectivity 25A 母 压接端接 圆形 连接器 触芯, 使用于Multimate 连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN,LP
66108-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 24-26AWG GOLD CRIMP Heavy Duty Power Connectors TYPE III + SKT 26-24 15AU/FL STRIP Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,26-24,15AU/FL,STRIP

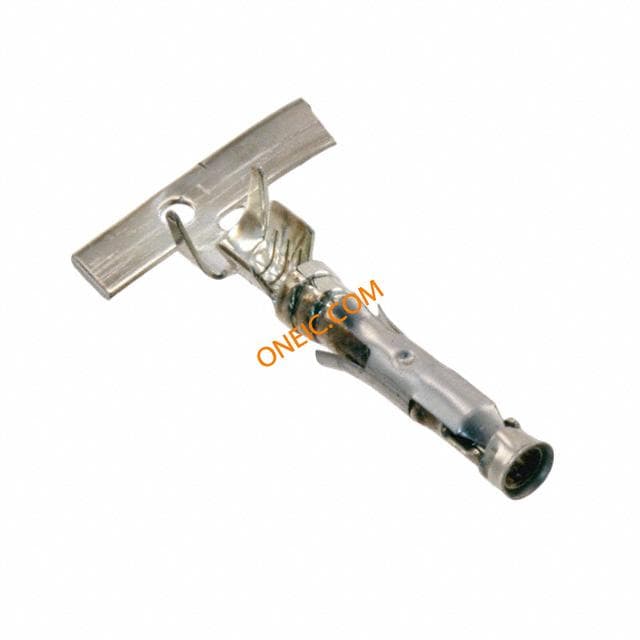

66598-2
