点击放大查看
1-66358-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG TIN CRIMP Pin & Socket Connectors III+ SKT,18-14 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmPhosphor Bronze Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,18-14,TIN-LEAD,STRIP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A111024CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 测试电流 | 13 | ||
机械参数
| 镀层 | Tin-Lead | 材料（通用） | Phosphor Bronze |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 端子尺寸 | 16 | 连接器类型 | Connector Circular |
| 接触镀层 | Tin-Lead Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 4000 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 绝缘直径 | 2.03 – 2.54 mm [ .08 – .1 in ] |
| 镀层厚度（通用） | 50µin (1.27µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 |
| 接触件表面处理 - 配合 | 锡铅 | 线规或范围 - AWG | 18-14 |
产品信息
| 备注 | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。, 反向卷起，适用于小型压接模具 | 类型 | Stamped |
| 连接器性别 | SKT | 系列 | Multimate Type III |
| 产品子类型 | Contacts | 应用细节 | Signal |
相关型号
211766-1
te connectivity / amp
Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SOCKET, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 sale Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount, 211766-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 17-9
206150-3
te connectivity / amp
Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN CPC PLUG 37POS W/O SOCKET 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector CPC PLUG ASSEMBLY SI Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSINGPLUG37WAY Connector: circular; Series: CPC Series 1; plug; female; PIN:37 TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37
206708-1
te connectivity / amp
Conn Sealed CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector PLUG 9 POSITION shell size 13 Conn Sealed CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 13-9, FREE CIR CONNECTOR, PLUG, SIZE 13, 9POS, FREE HANGING ConnectorHousing;CPCPlugAssy;9Pos.;Sz.13;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount, 206708-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 13-9
208714-1
te connectivity / amp
Conn Metal Shell CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CMC 7POS STD SER 1 Standard Circular Connector PLUG STANDARD 14-7 Conn Metal Shell CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 77 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, STD CPC1, 7WAY Connector;MetalShellCPC;PlugAssy;7Pos.;Sz.14;Series1;FreeHanging Plug CPC1 Poles=7, accepts female contacts / Free hanging/cable mount, 208714-1, TE Connectivity CMC PLUG ASSEMBLY,SZ 14-7
206837-1
te connectivity / amp
Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port CPC Connectors CONN PLUG CPC 24POS STD SER 1 24 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 24 POSITION shell size 23 Conn Sealed CPC SKT 24 POS Crimp ST Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 24 WAY, CABLE ConnectorHousing;CPCPlugAssy;24Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:24 Plug CPC 1 24P Male 23, 206837-1, TE Connectivity TE Connectivity 24路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-24
208718-1
te connectivity / amp
Conn Metal Shell CPC SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CPC Connectors CONN PLUG CMC 5POS STD SER 1 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 14 with Female Contacts Standard Circular Connector PLUG STANDARD 14-5 Conn Metal Shell CPC SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 5PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, STD CPC1, 5WAY Connector;MetalShellCPC;PlugAssy;5Pos.;Sz.14;Series1;FreeHanging Plug CPC1 Poles=5, accepts female contacts / Free hanging/cable mount, 208718-1, TE Connectivity TE Connectivity 5路 电缆安装 直向 连接器 插头 , 母触点 CMC PLUG ASSEMBLY,SZ 14-5

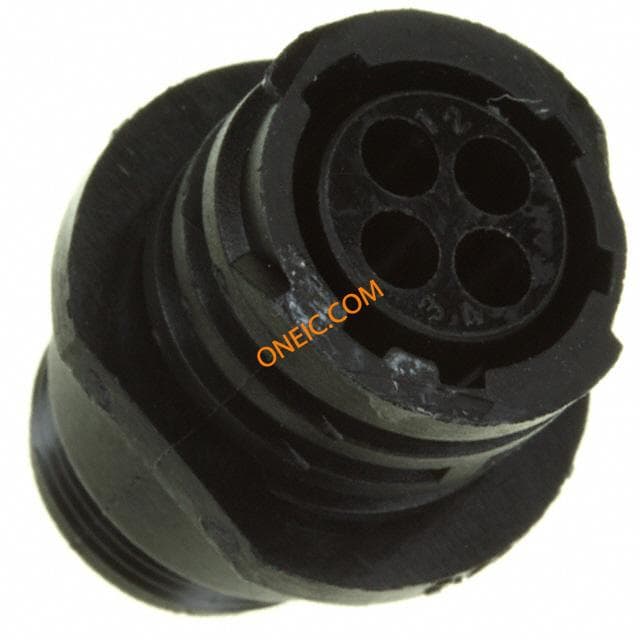

206430-4
