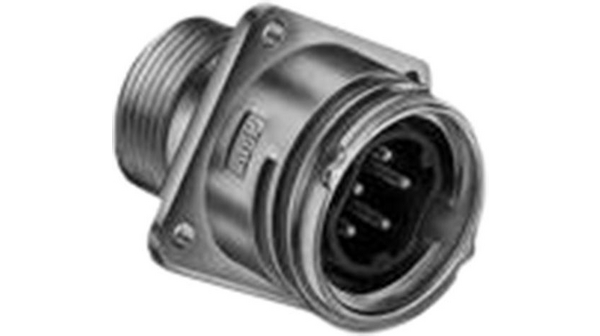

208489-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CMC 16POS STD SER 1 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 22 with Male Contacts Standard Circular Connector CMC RECTP ASSY SZ 22 Conn Metal Shell CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 16WAY Connector;MetalShellCPC;Recept.Assy;16Pos.;Sz.22;Series1;PanelMount Receptacle CPC1 Poles=16, accepts male contacts / with flange, 208489-1, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插座 , 公触点 CMC RECEPTACLE ASSY,SIZE 22 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 16 | 最大额定电流 | :13A |
机械参数
| 颜色 | Black | 深度 | 38.96 mm |
| 高度 | 38.96 mm | 密封型 | No |
| 重量 | 0.2 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 22 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 16Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Panel | 封装形式 | :Zinc Alloy |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Receptacle |
| 插入角度 | :22-16 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 37.33 mm |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 连接器颜色 | :Nickel | 配接方向 | Keyed |
| 触点数 | 16 | 绝缘直径 | 2.54 [0.100] |
| 位数 | 16 | 外壳尺寸-插件 | Metal |
| 安装孔直径 | 0.12" | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 螺纹/螺钉/孔尺寸 | 4-40 | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 22-16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 预加载 | No | 排列方式 | 22-16 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series1 |
| 产品子类型 | Connector | 射频系列/标准 | 208489 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 防护等级 | IP65 | 工作温度 | +125°C |
