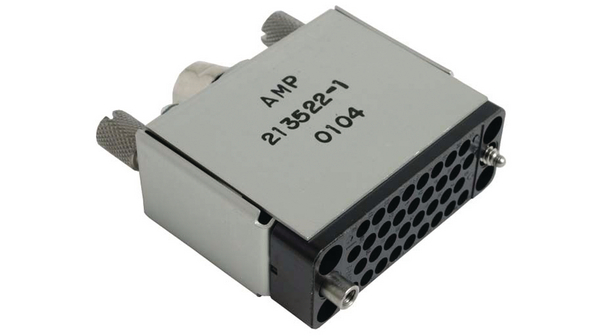

213522-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece M Series Connectors M-SERIES KIT 34P V.35 Connector,M series hsng ass,rcp,cble,34W Pin & Socket Connectors V.35 FEMALE CONNECT Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Phenolic Housing MaterialReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPTACLE KIT, SERIES M, 34WAY CableConnectorKit,Receptacle Connector: V35; plug; female; PIN:34; w/o terminals; for cable sale Female cable connector V35 34, 213522-1, TE Connectivity |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 600 V | I/O高电平电压 | No |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 尺寸 | Short | 颜色 | Black |
| 深度 | 21mm | 宽度 | 41.15mm |
| 长度 | 52mm | 重量 | 0.056 |
| 包装方式 | Bulk | 屏蔽类型 | One-piece |
| 本体尺寸 | 50 x 40 x 26mm | 端接方式 | Screw |
| 触点形式 | No | 触头类型 | Socket |
| 外壳颜色 | Black | 安装类型 | Without |
| 行程角度 | Straight | 电缆直径 | 11.05 â 13.83 [0.435 â 0.545] |
| 电缆材料 | Steel | 连接器类型 | V.35 |
| 接触镀层 | BrightTin-LeadOrated(50Cycles),Gold(500Cycles) | 安装样式 | for cable |
| 排数 | 4 | 螺丝材料 | Steel |
| 连接器用途 | Receptacle | 锁定特性 | knurled screws |
| 屏蔽材料 | Anodized Aluminum | 壳体材料 | Phenolic |
| 总长度 | 2.05" | 安装特性 | None |
| 包装数量 | Loose Piece | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 52 x 41.15 x 21mm | 连接器 - 电缆 | plug |
| 插针孔直径 | Without | 触点数 | 34 |
| 位数 | 34 | 螺纹/螺钉/孔尺寸 | Turnable |
| 夹持材料 - 镀层 | Nickel | 螺钉材料 - 镀层 | Zinc |
| 护套（绝缘）材料 | Stainless Steel | ||
产品信息
| 备注 | Housings are keyed to assure proper location of the male and female jackscrews | 类型 | Kit |
| 样式 | One-Piece | 连接器性别 | Receptacle |
| 系列 | M | 产品特性 | Jackscrew |
| 制造商全称 | MSeries | 产品子类型 | Cable Connector Kit |
| 硬件类型 | Jackscrew | 单元数量 | 1 |
| 射频系列/标准 | 213522 | ||
环境参数
| 工作温度 | :150°C | ||
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
66360-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET AWG14-18 GOLD CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Standard Circular Contacts GOLD SKT 18-14 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;Brass;Signal;GoldoverNickel;18-14AWG MULTIMATE Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+
66332-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG 15 GOLD CRIMP Power to the Board PIN 24-20 GOLD 12000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,15AU/FL,STRIP

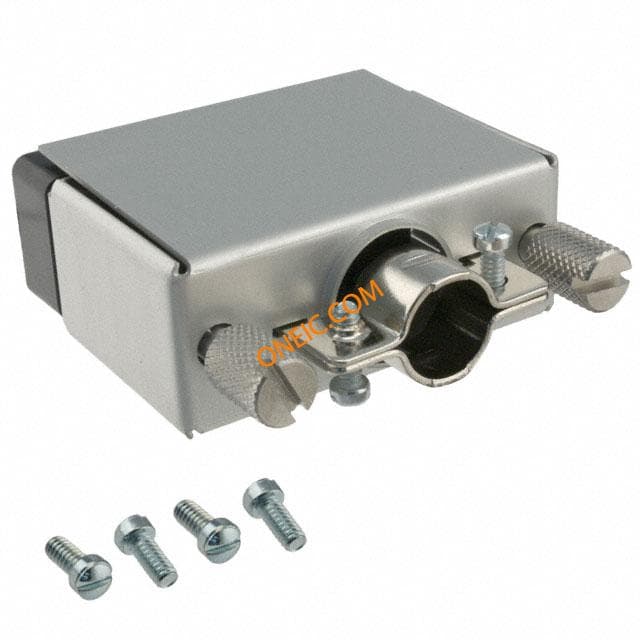

213300-1
