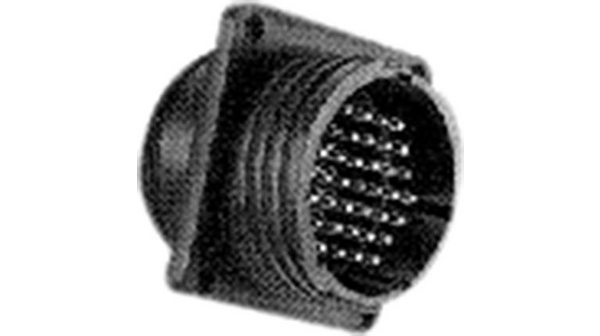

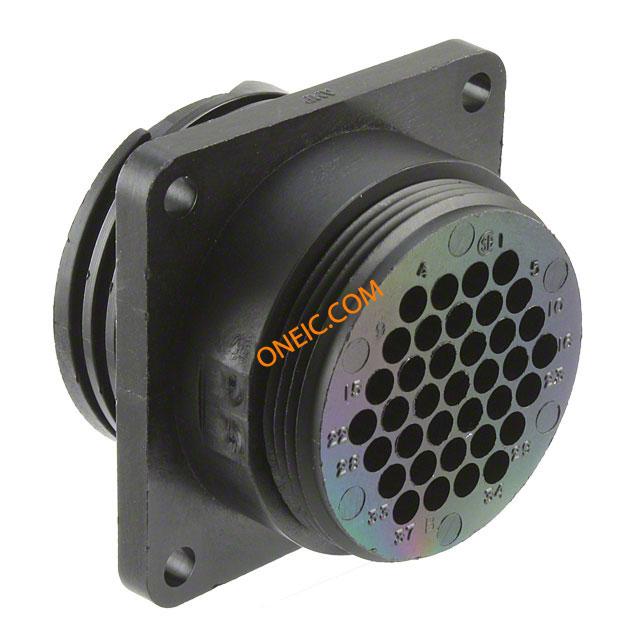

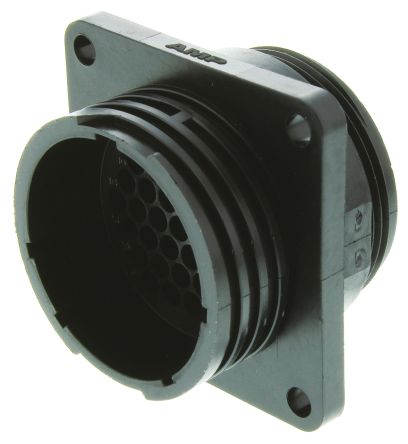

206151-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, PANEL ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:37 Receptacle CPC1 Poles=37, accepts male contacts / with flange, 206151-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 23-37 RECEPT STD SEX |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 通道数量 | 37 |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 44.45 mm |
| 高度 | 44.45 mm | 密封型 | No |
| 重量 | 0.025 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 37Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 封装形式 | size 23 |
| 连接器样式 | Receptacle | 插入角度 | :23-37 |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Glass Filled Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 总长度 | 34.29 mm | 包装数量 | 1 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | socket | 端接样式 | Wire |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 37 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-37 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 1 | 钥匙类型 | A |
| 极性 | A | 预加载 | No |
| 排列方式 | 23-37 | 制造商全称 | Series1 |
| 产品子类型 | Connector | 适配器系列 | CPC Series 1 |
| 单元数量 | 1 | 射频系列/标准 | 206151 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 防护等级 | IP65 | 工作温度 | +105°C |
