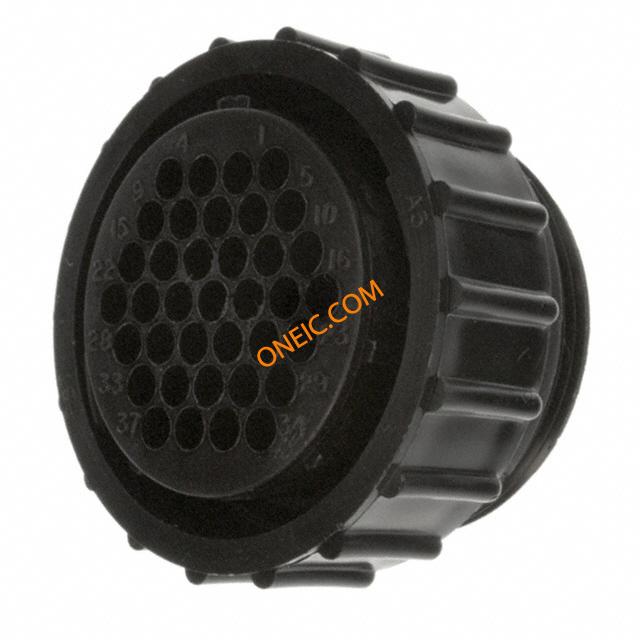

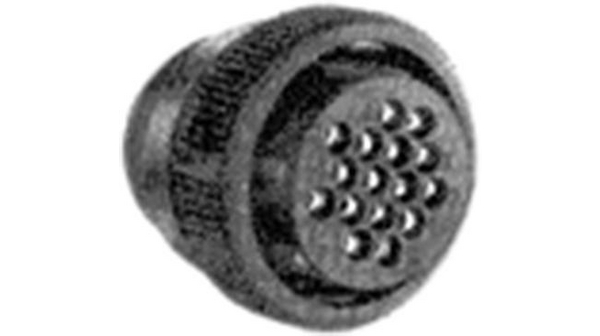

206150-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN PLUG CPC 37POS STD SER 1 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 37 POSITION shell size 23 Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 23-37, FREE ConnectorHousing;CPCPlugAssy;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:37 Plug CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 206150-1, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37 |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 37 | 最大额定电流 | :13A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 2.57 | 直径 | 45.28 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 37Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 23 | 连接器样式 | Plug |
| 插入角度 | :23-37 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Reinforced Nylon (Polyamide) | 磁芯材质 | Polyester |
| 壳体材料 | Nylon 6/6 GF | 总长度 | 27.43 mm |
| 包装数量 | Standard | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 直径 - 环内径 | 45.29 [1.783] | 配接方向 | Keyed |
| 触点数 | 37 | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装类型 | :Free |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 23-37 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Sealed CPC | 连接器性别 | PL |
| 系列 | Series 1 | 钥匙类型 | A |
| 极性 | A | 预加载 | No |
| 排列方式 | 23-37 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 206150 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 防护等级 | IP65 | 工作温度 | :105°C |
文档与媒体
相关型号
206151-2
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN free hanging s.s. 23 Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, FREE ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; male; w/o terminals Receptacle CPC 1 37P Female 23, 206151-2, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插座 , 公触点 23-37 F.H. RECEPT
206151-4
te connectivity / amp
Conn Sealed CPC PIN 37 POS ST Cable Mount 37 Terminal 1 Port Standard Circular Connector RECEPTACLE 37 PIN free hanging s.s. 23 CPC Connectors CONN RCPT CPC 37POS FREE HANGING 37 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Conn Sealed CPC PIN 37 POS ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;FreeHang;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / Free hanging/cable mount / sealed, 206151-4, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
206151-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, PANEL ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:37 Receptacle CPC1 Poles=37, accepts male contacts / with flange, 206151-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 23-37 RECEPT STD SEX
206151-3
te connectivity / amp
Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PNL SEALED Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / with flange / sealed, 206151-3, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
208132-2
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS STD SER 1 Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
1-796406-1
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 23-37 R/A LF CPC Connectors CONN RCPT CPC 37POS R/A Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,23-37,R/A LF

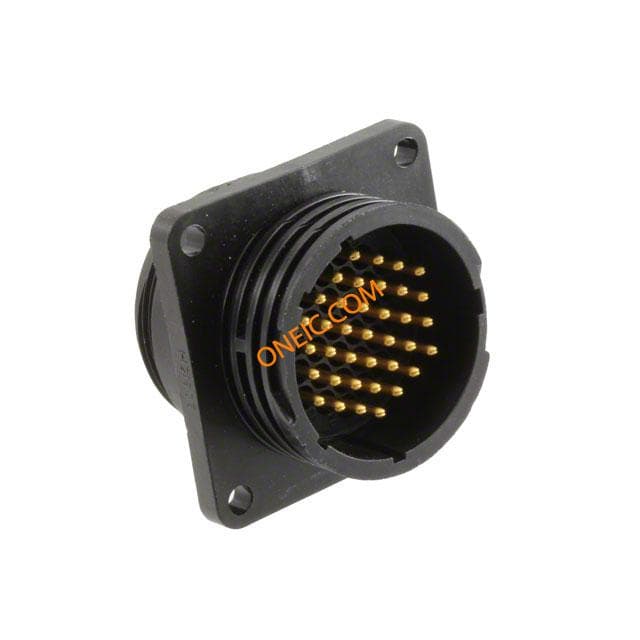

206934-5
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-37
796406-1
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC POSTED RCPT 23-37 R/A CPC Connectors CONN RECEPT CPC 37POS STD SER1 CPC Connectors Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC POSTED RCPT,23-37,R/A
1-206934-7
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC Series 1 Panel Mount Receptacle 37 Position Circular Plastic Connector CPC RECPT ASSEMBLY SIZE 23-37
2-206934-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
1-206934-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT 37 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PCB Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;CPC;ReceptAssyw/Pins;37Pos;Sz23;Series1;PanelMnt;StdSex CPC Series 1 Flange Receptacle 37 Position 23 Shell Circular Plastic Connector Receptacle CPC1 Poles=37, accepts male contacts / with flange / sealed, 1-206934-1, TE Connectivity TE Connectivity 37路 通孔 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 23-37
1-796406-2
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector PSTD RCPT 23-37 R/A CPC Connectors CONN RCPT CPC 37POS R/A W/INSERT Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,23-37,R/A LF, inserts
1-206934-9
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC

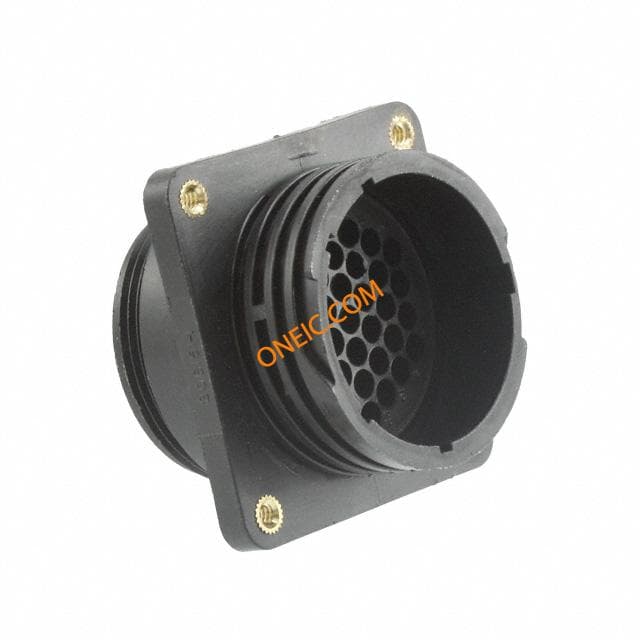

787610-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS SIZE 23 Standard Circular Connector CPC RECPT,SIZE 23-37 W/INSERTS Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;37Pos;Sz23;Series1;PanelMnt;StdSex CPC RECPT,SIZE 23-37 W/INSERTS
1-206934-8
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT 1-206934-8 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Preloaded37 Positions37 Signal Positions0 Power PositionsConnector Style = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-37
1-66358-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors III+ SKT 18-14 30AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contactfemalecrimp18-14AWGMultimate TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,30AU/FL,STRIP
208132-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS STD SER 1 Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC RECPT ASSEMBLY SIZE 23-37
1-206934-6
te connectivity / amp
CPC POSTED RCPT ASSY,SZ 23-37 Standard Circular Connector CPC POSTED RCPT ASSY SZ 23-37 Standard Circular Connectors CPC POSTED RCPT ASSY SZ 23-37 CONN RCPT CPC 37POS PANEL MOUNT
206934-7
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC

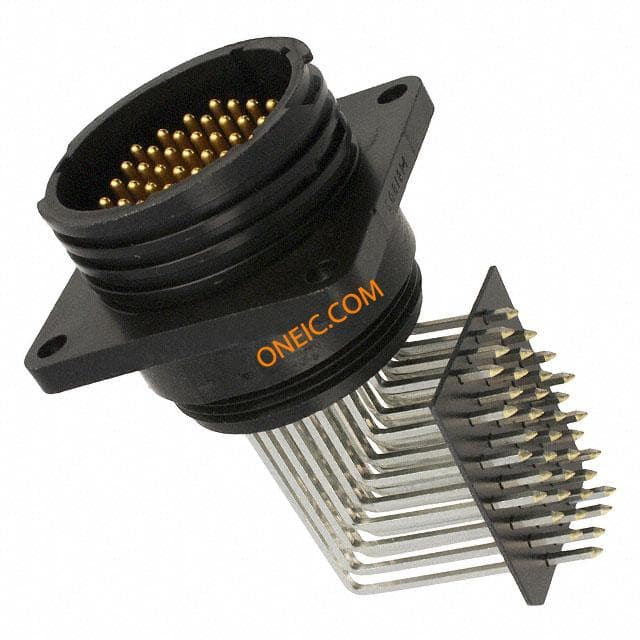

1776906-1
